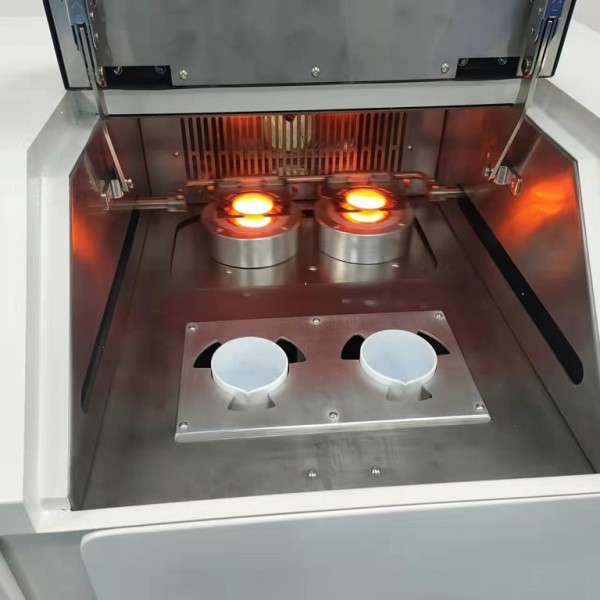

XRF Fusion Sample Equipment AC220V X Ray Fluorescence Machine
XRF Fusion Sample Equipment AC220V X Ray Fluorescence Machine
Specifications
Safetyfeatures :
Radiation Shielding, Interlock Protection
Dimensions :
600mm X 500mm X 400mm
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Certification :
ISO
Type :
X-ray Fluorescence Analyzer
Analysistime :
30 Seconds To 3 Minutes
MOQ :
1set
Place of Origin :
Chengdu China
Powersupply :
AC220V, 50/60Hz
Brand Name :
Guiheng
Model Number :
GH-2DC
Place Of Origin :
XRF High-frequency Fusion Sample Equipment 4ZC
Softwarefeatures :
Quantitative Analysis, Qualitative Analysis, Data Export
Delivery Time :
30days
Detectionelements :
From Sodium (Na) To Uranium (U)
Measurementrange :
Ppm To 100%
Description

Table 1: Main parameters of equipment

Unit type GH-2DC
Maximum output 6KW (fused and molded power supply output power)
Range of oscillation frequencies 50KHz-80KHz
Range of current regulation 35A-130A
Time adjustment range 0s-999s
Forming mode Auto
Sample production per batch 2
Cooling water pressure 0.1-0.3MPa
Program storage More than 10 groups
Fusion temperature 0-1300℃ (adjustable)
Temperature control accuracy ±1℃
Stirring method Centrifugal rotation + positive reversal (exclusive patent)
Rotational speed range ★ 0-180 rpm / min (adjustable)
Speed change period ★ N. times / min (adjustable)
Infrared temperature measurement range 400℃-1200℃
Main dimensions (length, width and height) 1160*640*680mm
Host net weight 192kg
Tank shape size 800x540x920
Water tank net weight 90kg

"★" Mark is the unique technical parameter of Guiheng Company
