Fusion XRF Analysis Equipment 50KHz-80KHz Sample Preparation Instruments
Fusion XRF Analysis Equipment 50KHz-80KHz Sample Preparation Instruments
Fusion XRF Analysis Equipment 50KHz-80KHz Sample Preparation Instruments
Fusion XRF Analysis Equipment 50KHz-80KHz Sample Preparation Instruments
Specifications
Delivery Time :
30days
Brand Name :
Guiheng
Certification :
ISO
Model Number :
GH-2ZC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Place of Origin :
Chengdu China
MOQ :
1set
Description

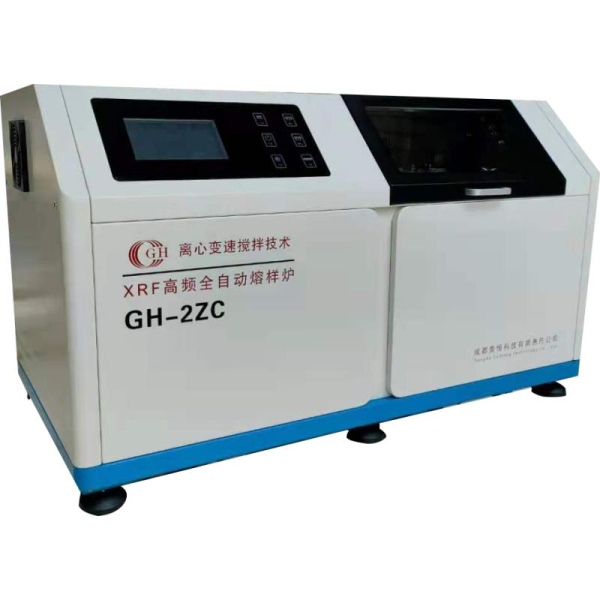

XRF High-Frequency Fusion Sample Equipment
Advanced sample preparation equipment designed for XRF analysis with precise temperature control and innovative stirring technology.
Technical Specifications
Parameter Specification
Unit Type GH-2ZC
Maximum Output 6KW (fused and molded power supply output power)
Oscillation Frequency Range 50KHz-80KHz
Current Regulation Range 35A-130A
Time Adjustment Range 0s-999s
Forming Mode Auto
Sample Production per Batch 2
Cooling Water Pressure 0.1-0.3MPa
Program Storage More than 10 groups
Fusion Temperature 0-1300℃ (adjustable)
Temperature Control Accuracy ±1℃
Stirring Method Centrifugal rotation + positive reversal (exclusive patent)
★ Rotational Speed Range 0-180 rpm/min (adjustable)
★ Speed Change Period N. times/min (adjustable)
Infrared Temperature Measurement Range 400℃-1200℃
Main Dimensions (L×W×H) 1160×640×680mm
Host Net Weight 192kg
Tank Shape Size 800×540×920mm
Water Tank Net Weight 90kg
★ Mark indicates unique technical parameters exclusive to Guiheng Company
