Safety XRF Fusion Sample Preparation Machine Energy Efficient Design
Safety XRF Fusion Sample Preparation Machine Energy Efficient Design
Specifications
MOQ :
1set
Brand Name :
Guiheng
Certification :
ISO
Model Number :
GH-2ZC
Delivery Time :
30days
Place of Origin :
Chengdu China
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

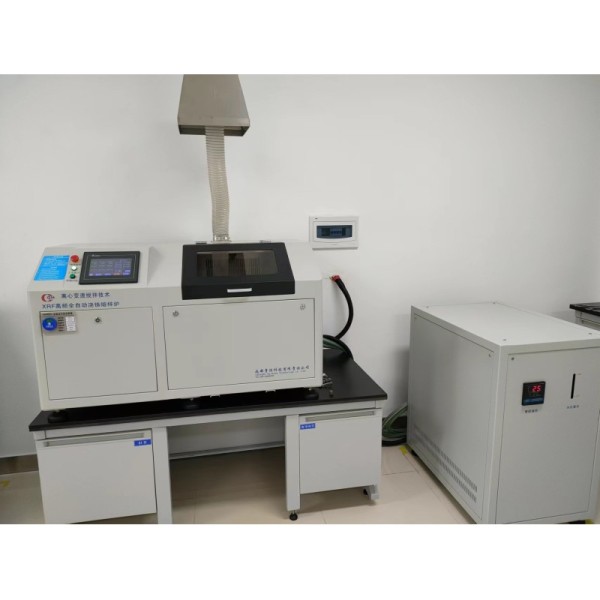

Guiheng XRF High-Frequency Fusion Sample Equipment

The Guiheng XRF high-frequency fusion sample equipment is a multi-function high-frequency melting machine designed for efficient sample preparation in analytical laboratories.

Equipment Specifications

Model: GH-2ZC
Casting Methods: Pot bottom forming, manual casting forming, and automatic casting forming (three optional methods)

System Composition

The XRF high-frequency melting prototype consists of four integrated systems:

  • Heating System: Utilizes proprietary high-frequency power supply to form vortex induction heating on platinum crucible
  • Control System: Touch screen display with PLC control, stores at least 10 sample programs, customizable melt parameters
  • Mechanical System: Automatic casting type with patented centrifugal variable speed rotation plus positive reversal mixing
  • Water Cooling System: Comprehensive cooling with pump, tank, and exhaust fan for optimal component operation
Key Equipment Features
  • Easy operation with no preheating required - reaches 1000°C+ in 30 seconds from room temperature
  • Rapid sample preparation - approximately 10 minutes per batch with 24-hour continuous operation
  • One-click switching system for XRF, AA, and ICP sample preparation
  • Safety and environmental protection with built-in exhaust fan and minimal thermal radiation
  • Mold forming technology reduces crucible maintenance rate
  • Low operating costs with no valuable supplies or regular heating component replacement
  • Energy efficient design heating only the crucible and mold
  • Minimal platinum usage with small crucible and mold requirements
  • Comprehensive equipment protection including water shortage, over current, over pressure, and over temperature
  • Multiple forming options including pot bottom, manual casting, and automatic casting
Technical Parameters
Parameter Specification
Unit Type GH-2ZC
Maximum Output 6KW (fused and molded power supply output power)
Oscillation Frequency Range 50KHz-80KHz
Current Regulation Range 35A-130A
Time Adjustment Range 0s-999s
Forming Mode Auto
Sample Production per Batch 2
Cooling Water Pressure 0.1-0.3MPa
Program Storage More than 10 groups
Fusion Temperature 0-1300℃ (adjustable)
Temperature Control Accuracy ±1℃
Stirring Method Centrifugal rotation + positive reversal (exclusive patent)
Rotational Speed Range ★ 0-180 rpm/min (adjustable)
Speed Change Period ★ N. times/min (adjustable)
Infrared Temperature Measurement Range 400℃-1200℃
Main Dimensions (L*W*H) 1160*640*680mm
Host Net Weight 192kg
Tank Shape Size 800*540*920mm
Water Tank Net Weight 90kg

"★" Mark indicates unique technical parameters exclusive to Guiheng Company
