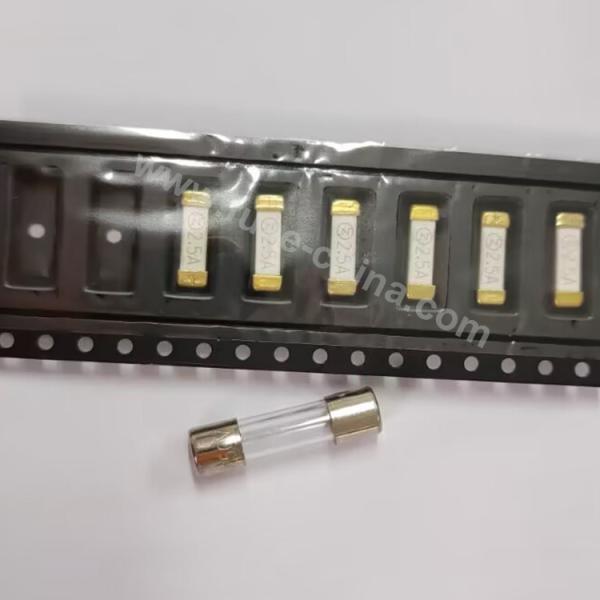

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
Specifications
Brand Name :
Tian Rui
Model Number :
1032F 1031T
Certification :
ROHS REACH
Place of Origin :
China
MOQ :
1000PCS
Price :
Negotiable
Payment Terms :
D/P, T/T,Paypal, Western Union
Supply Ability :
1000000PCS/Month
Delivery Time :
5-7 Days
Packaging Details :
500PCS/Bag
Rated Current :
200mA-40A
Rated Voltage :
32V-600V
Size :
10.25x3.2mm
Type :
Brick SMD fuse
Pacakge :
1031 1032
Cap :
Silver Plated Brass or Au Plated Brass
Body :
Ceramic
Fuse Element :
Au or Silver Alloy Wire
Shape :
SMD Type Square Ceramic Fuse
Packing :
Tape
Description

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

The Nano2 Fuse is a small square surface mount fuse that is designed to enable compliance with the RoHS directive. This product is fully

compatible with lead-free solder alloy and higher temperature profiles associated with lead-free assembly

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

SPECIFICATION

NO. Component Material Quantity
① Cap Silver Plated Brass 2
② Body Ceramic tube 1

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Rated current Rated voltage Breaking capacity Safety Aproval
UR
200mA 250V/125V
DC
72V/100V
DC
63V60V/32V
DC		 1KA@32V
500A@72V60V
150A@63V72V100V
150A@125V250V		 ●
250mA ●
300mA ●
315mA ●
375mA ●
400mA ●
500mA ●
600mA ●
630mA ●
700mA ●
750mA ●
800mA ●
1A ●
1.25A ●
1.6A ●
2A ●
2.5A ●
3A ●
3.15A ●
3.5A ●
4A ●
5A ●
6A ●
6.3A ●
7A ●
8A ●
10A ●
12A ●
15A ●
16A ●
20A ●
25A ●
30A ●
40A ●

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

PRODUCT CHARACTERISTICS

No. Item Contain Reference standard
1
Insulation Resistance		 10,000 ohms minimum MIL-STD-202G, Method 302 Test ConditionA
2
Solderability		 T=235℃±5 ℃, t=5+0/-0.5s,
Cover≧95%		 MIL-STD-202G, Method 208H
3
Resistance to Soldering Heat		 10 sec at 260℃ MIL-STD-202G, Method 210F Test
Condition B
4
Thermal Shock		 5 cycles, -65℃ to 125℃,
15minutes @each extreme		 MIL-STD-202G, Method 107G Test
Condition B
5
Mechanical Shock		 100G’s peak for 6 milliseconds, 3 cycles MIL-STD-202G, Method 213B Test 1
6
Vibration		 0.03” amplitude, 10-55 Hz in 1 min. 2hrs each XYZ=6hrs MIL-STD-202G, Method 201A
7
Moisture Resistance		 10 cycles MIL-STD-202G, Method 106G
8
Salt spray		 48hrs MIL-STD-202G, Method 101E Test
Condition B

ELECTRICAL CHARACTERISTICS

Ampere Rating % of Ampere Rating Opening Time
200mA – 40A 100% 4 hours, Min .
250% 120s, Max .

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Recommended Soldering Parameters

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting

Profile Featuren

Pb-Free

assembly

Average Ramp-up Rate

(Tsmax to Tp)

 3 °C /sec Max.

Preheat

Temperature Min Ts(min)

Temperature Max Ts(max)

Temperature Max Ts(max)

150°C

200°C

60-120 sec
Peak Temperature(Tp) 250°C

Time within 5°C of actual Peak

Temperature(Tp)

 5 sec
Melting tin time(TL) 20sec~4Osec
Ramp-down Rate 6°C/sec Max .
Time25 °Cto peak Temperature 8minutes Max

Application
Notebook PC LCD/PDF TV LCD/PDP panel LCD monitor
LCD backlight inverter Portable DVE player Power supply Networking
PC server Cooling fan system Storage system Telecom system
Wireless base station White goods Game console Automotive
Battery charging circuit Office Automation Industrial equipment Medical equipment

Littelfuse 443 Series Replacement 250V 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 3.5A 4A 5A 6.3A SMD Fuse for LED Lighting
