Powerful Motors Brushless DC 240110 Motor With 180kg For VTOL Propulsion System
Powerful Motors Brushless DC 240110 Motor With 180kg For VTOL Propulsion System
Powerful Motors Brushless DC 240110 Motor With 180kg For VTOL Propulsion System
Powerful Motors Brushless DC 240110 Motor With 180kg For VTOL Propulsion System
Powerful Motors Brushless DC 240110 Motor With 180kg For VTOL Propulsion System
Powerful Motors Brushless DC 240110 Motor With 180kg For VTOL Propulsion System
Specifications
Brand Name :
Furious Motor
Model Number :
240110
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
$ 2299
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
3000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Carton witn protection (EPE)
Model :
240110
Dimension :
240 mm * 110 mm
KV :
10
Max. Thrust :
180 KG
Max. Torque :
173 N.m
Max. RPM :
2657
Suggested ESC :
400 V 160 A
Suggested Prop :
72 inch propeller
Max. Current :
127 A
Max. Voltage :
400 V
Max. Power :
42 KW
Li - Po :
48 S - 96 S
Hall Sensor :
Optional
Weight :
12.8 KG
Application :
Heavy lift drone
Description

Intoroduction

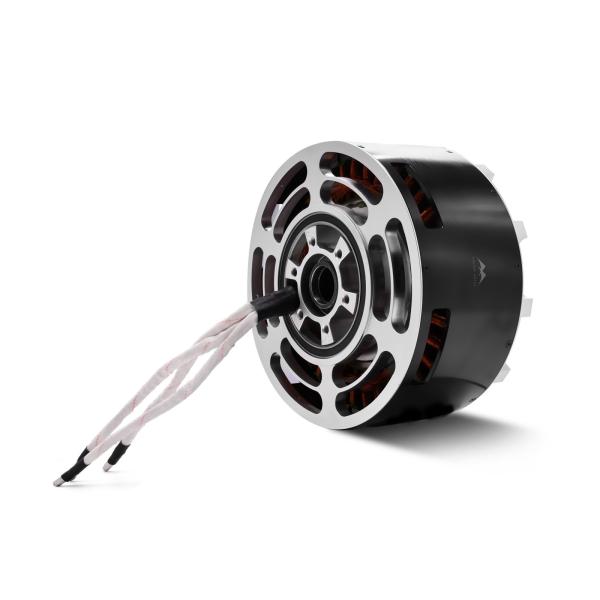

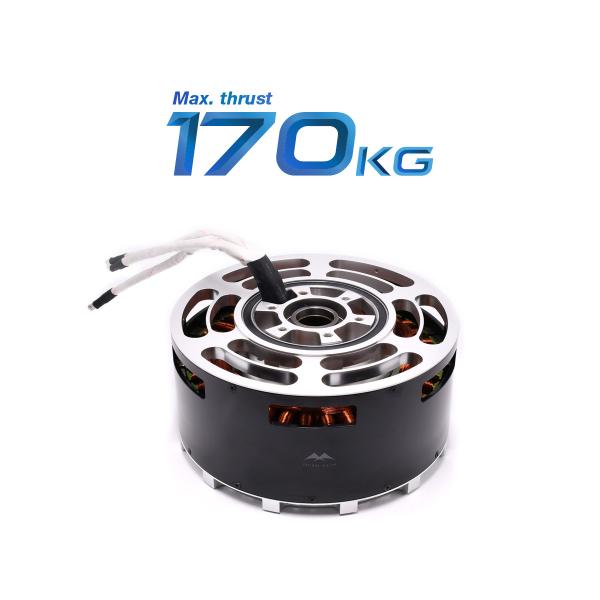

The Furious Motor 240110 brushless motor represents a groundbreaking brushless DC motor, expertly engineered to provide superior propulsion capabilities for advanced aerial systems. Perfectly aligned with a 72-inch propeller and a 400V 160A ESC, this motor guarantees seamless and reliable performance.
With a remarkable maximum thrust of 180kg, it stands as an exceptional choice for unmanned aircraft, heavy lift drones, and mega drone configurations, delivering unmatched power to support the most ambitious flight endeavors.

Tech Specs

Model 240110
Type Brushless DC motor
KV 10
Suggested ESC 400 V 160 A
Suggested Propeller 72 inch propeller
Max. Thrust 180 kg
Max. Torque 173 N·m
Max. RPM 257
Li-Po 48 S ~ 96 S
Max. Voltage 400 V
Max. Current 127 A
Max. Power 42 kW
Motor Dimension 202 mm * 150mm
Weight 12.8 kg
Application Multi rotor drone, heavy lift drone
