139 kw / 190 hp ISUZU 700p refrigerated delivery truck Load 10 T fridge truck hire
139 kw / 190 hp ISUZU 700p refrigerated delivery truck Load 10 T fridge truck hire
139 kw / 190 hp ISUZU 700p refrigerated delivery truck Load 10 T fridge truck hire
139 kw / 190 hp ISUZU 700p refrigerated delivery truck Load 10 T fridge truck hire
139 kw / 190 hp ISUZU 700p refrigerated delivery truck Load 10 T fridge truck hire
139 kw / 190 hp ISUZU 700p refrigerated delivery truck Load 10 T fridge truck hire
Specifications
Brand Name :
SUNY
Model Number :
QL10909MARY
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 25,000 ~ 40,000 / Unit
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Cargo Body Size :
6820*2035*1995 mm
Cargo Body Material :
FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness :
80mm
Door :
Single Rear Door , Optional Side Door
Temperature Range :
-18C to 0°C
Engine :
139 kw / 190 hp
Displacement (lit) :
5.193
Number of gears :
MLD , 6 forward gears & 1 reverse
Brake System :
Air braking
Tire :
8.25-20
Cabin :
700P Single row, With A/C
Description

139 kw / 190 hp ISUZU 700p refrigerated delivery truck Load 10 T fridge truck hire

Box Volume 25 Cubic

4x2 ISUZU Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -18°C to 0°C
Total capacity: approx. 8000 KG ~ 10000 KG ~ Max .12000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional

Products Technical Specification
Brand-Series ISUZU
Product Name 4*2 Refrigerated truck
Fuel type Diesel
Emission Standard Euro 4
Cabin 700P Single row, With A/C
Chassis standard configuration
Chassis model QL10909MARY
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 8970*2305*3390
Cargo body dimensions (L×W×H) 6820*2035*1995
Wheel base 5200
Front / Rear track base 1680 / 1650
Front / Rear overhang 1110 / 2585
Weight data (kg) G.V.W 9950
Curb weight (chassis) 5505
Max payload 8000-10000
Whole vehicle
main performance		 Max. speed (km/h) 110
Max. slope of climb (%) 30
Engine Model 4HK1-TCG40
Maximum power 139kw / 190hp
Number of cylinders 4
Displacement (lit) 5.193
Engine Manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd.
Gear box Number of gears MLD,6 forward gears & 1 reverse
Axle Front / Rear Load capacity(ton) `4 / 7
Suspension Front / Rear Spring plate 8/10+6
Steering Wheel left/right hand drive LHD
Brake system Service brake Air braking
Electric device Voltage (V) 24
Tyres & Quantity 8.25-20 & 6+1
Cargo Body Standard Configuration
Cargo Body Size (L×W×H) mm 6820*2035*1995
Cargo Body Material FRP inside & outside of the van, polyurethane as the insulation
Crago body thickness 80mm
Back Door Single door
Side door Optional
Refrigeration systems

Equipped with DT-230

Brand: NIDIAN THERMO (South korean Hanya)
Temperature Range Normal temperature, refrigeration temperature reached -10°C to 0°C
Others

Stainless Steel door frame, Stainless steel corrugated floor,

Mark lamp at the four (4) corners f the body,

Room lamp will be provided inside the cabin.
1.Van Material: Color plate inside , FRP outside of the van,polyurethane foam middle.stainless steel, Q235 steel sheet or aluminum are all optional.
2.Refrigerators chosen brand from: South korean Hanya , HuaSu ; American Thermoking, Carrier; Chinese HANXUE, Kingbo, etc.
3.Other spares like hooks, bottom slot, shelves,extra doors, etc. are all optional.

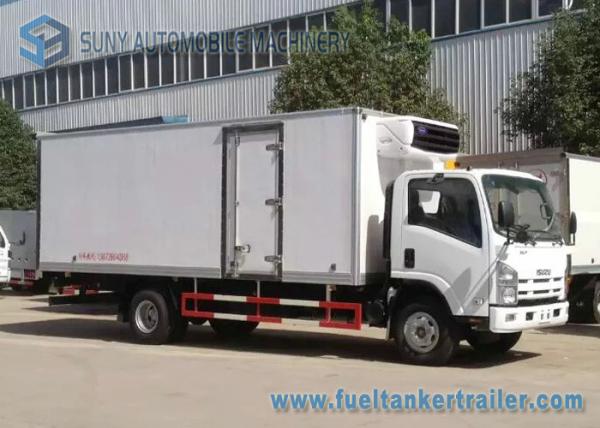

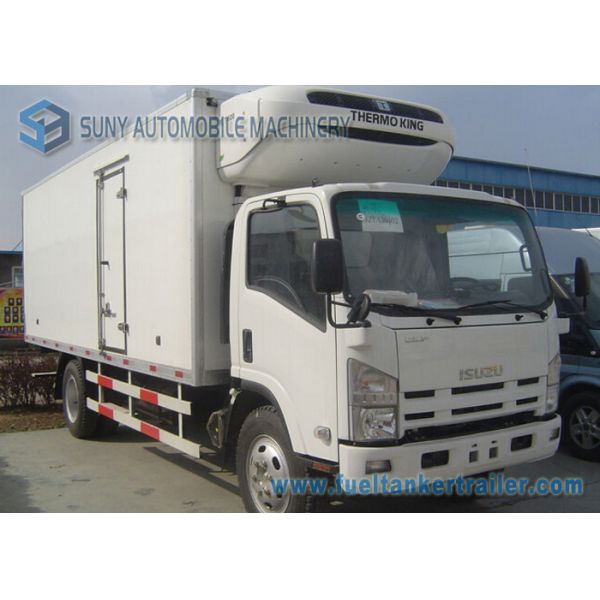

ISUZU 700P Reefer Van Truck Equipped Thermoking Refrigerator Unit.

139 kw / 190 hp ISUZU 700p refrigerated delivery truck Load 10 T fridge truck hire
