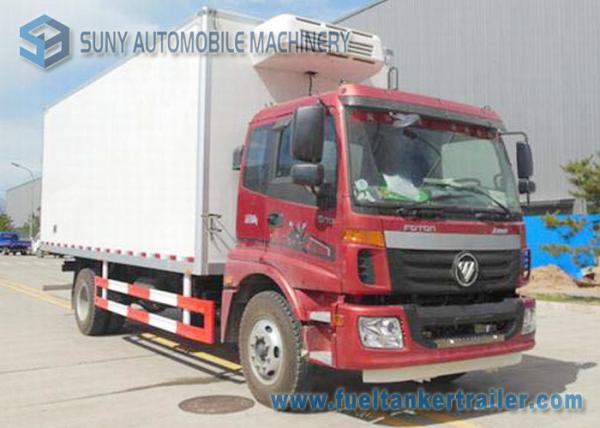

Tianjin Lovol Engine Refrigerator Van Truck 160 Hp 4x2 refridgerator truck FOTON - Auman 15 T
Tianjin Lovol Engine Refrigerator Van Truck 160 Hp 4x2 refridgerator truck FOTON - Auman 15 T
Tianjin Lovol Engine Refrigerator Van Truck 160 Hp 4x2 refridgerator truck FOTON - Auman 15 T
Tianjin Lovol Engine Refrigerator Van Truck 160 Hp 4x2 refridgerator truck FOTON - Auman 15 T
Tianjin Lovol Engine Refrigerator Van Truck 160 Hp 4x2 refridgerator truck FOTON - Auman 15 T
Tianjin Lovol Engine Refrigerator Van Truck 160 Hp 4x2 refridgerator truck FOTON - Auman 15 T
Specifications
Brand Name :
SUNY
Model Number :
BJ1163
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 25,000 ~ 38,000 / Unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Emission Standard :
Euro 3
Engine Maximum power :
118 KW / 160 HP Tianjin Lovol Engine
Number of cylinders :
4 Optional 6-cylinders
Gear box :
Fast 6 forward gears & 1 reverse
Drive Axle :
8 T
Brake System :
Air braking
Cargo Body Size :
6800*2300*2300 mm
Temperature Range :
-18°C to 0°C
Cargo Body Material :
FRP inside & outside of the van, polyurethane as the insulation
Cabin :
Half row , With A/C
Color and Logo :
Optional
Description

Tianjin Lovol Engine Refrigerated Box Truck 160 Hp 4x2 refridgerator truck FOTON - Auman 15 T


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -5°C to -18°C
Total capacity: approx. 10000 KG ~ 12000 KG ~ Max .15000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional.

Products Technical Specification
Brand-Series FOTON-AUMAN
Product Name 4x2 Refrigerated truck
Fuel type Diesel
Emission Standard Euro 3
Cabin Half row , With A/C
Chassis standard configuration
Chassis model BJ1163
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 9250*2505*3770
Cargo body dimensions (L×W×H) 6800*2300*2300
Wheel base 5000
Front / Rear track base 1935 / 1800
Front / Rear overhang 1450 / 2450
Weight data (kg) G.V.W 15800
Curb weight (chassis) 7500
Max payload 10000- 15000
Whole vehicle
main performance		 Max. speed (km/h) 90
Max. slope of climb (%) 30
Engine Model 4D160-E3P
Maximum power 118 KW / 160 HP
Number of cylinders 4
Displacement (lit) 3.99
Engine Manufacturer Tianjin Lovol
Gear box Number of gears 6forward gears & 1 reverse
Axle Front / Rear Load capacity(ton) 4 / 8
Suspension Front / Rear Spring plate 9/12+9
Steering Wheel left/right hand drive LHD
Brake system Service brake Ail braking
Electric device Voltage (V) 24
Tire & Quantity 9.00R 20 & 6+1
Cargo Body Standard Configuration
Cargo Body Size (L×W×H) mm 6800*2300*2300
Cargo Body Material FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness 80mm
Back Door Single door
Side door Optional
Refrigeration systems Equipped with DT-500
Temperature Range Normal temperature,refrigeration temperature reached -18C to 0°C
Others

Stainless Steel door frame, Stainless steel corrugated floor,

Mark lamp at the four (4) corners f the body,

Room lamp will be provided inside the cabin.
  1. Van Material: Color plate inside,FRP outside of the van,polyurethane foam middle.stainless steel, Q235 steel sheet or aluminum are all optional.
    2.Refrigerators chosen brand from: South korean Hanya, HuaSu
  2. ;American Thermoking, Carrier;Chinese HANXUE, Kingbo, etc.
    3.Other spares like hooks, bottom slot, shelves,extra doors, etc. are all optional.

For You To Choose:

Load : 30 T ~ 35 T ~ 40 T ~ 45 T

8x4 FOTON AUMAN Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)

Tianjin Lovol Engine Refrigerator Van Truck 160 Hp 4x2 refridgerator truck FOTON - Auman 15 T
