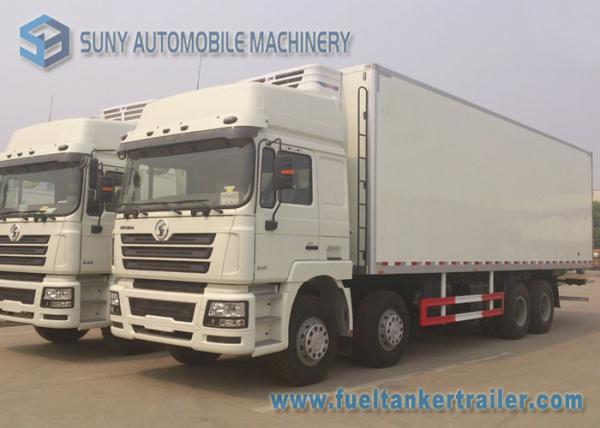

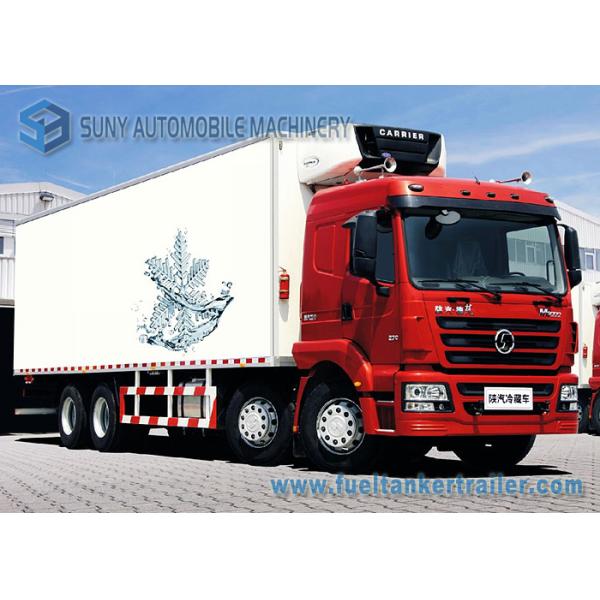

Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
Specifications
Brand Name :
SUNY
Model Number :
SX1314
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 45,000 ~ 78,000 / Unit
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Cargo Body Size :
9500*2330*2490 mm
Cargo Body Material :
FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness :
80mm
Door :
Single Rear Door , Optional Side Door
Temperature Range :
-18C to 0°C
Engine :
191 kw / 260 hp
Displacement (lit) :
9.726
Number of gears :
9 forward gears & 1 reverse
Brake System :
Air braking
Tire :
12.00R 20 Radial Tire
Cabin :
D long F3000 / M3000 Half row, with A/C
Description

Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP

8x4 Shacman Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -18°C to 0°C
Total capacity: approx. 30000 KG ~ 40000 KG ~ Max .45000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional

Products Technical Specification
Type 260hp 8*4 Refrigerated Van Truck
Brand Shacman
Cab One and half row
Vehicle Description
Overall dimensions(mm) 11990*2550*3990
G.V.W (kg) 31000
Curb weight(vehicle) (kg) 12930
Loading capacity (kg) 25000
Max speed (Km/h) 99
Engine Description
Engine model WD615.56
Maximum power 191kw / 260hp
Displacement (lit) 9.726
Chassis Description
Chassis Model SX1314BL366
Wheel base(mm) 1800+4575+1350
F/R track base(mm) 2011/1860
F/R overhang(mm) 1485/2780
Approach/Departure angle(°) 20/11
Spring plate 10/10/12+8
Type of fuel Diesel
Gear box 9-speed with over drive
Brake system Air braking
Operation control system Power Steering
Electric system 24V
Tyres&Tire quantity 12.00R20 & 12+1
Cargo Body Description

Dimension(mm):9500*2330*2490

Material: the polyurethane foam between the inner-outer color plate

Independent refrigeration unit: equipped with the DS-500S,Hanya brand

Temperature range: -18°C

Heat preservation layer:8cm

Box 50 Cubic frozen truck rental Shacman 8x4 Heavy Cooling Van Truck 260 HP
