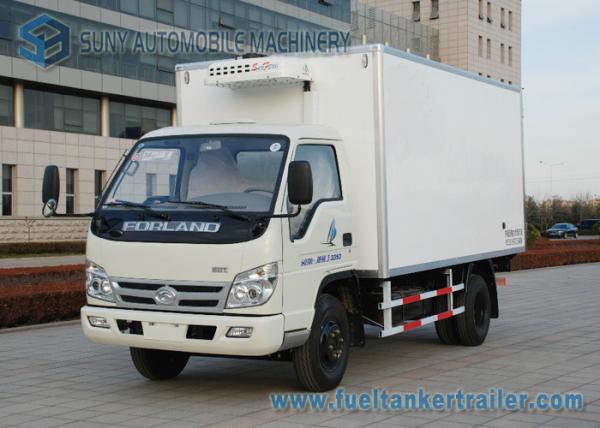

Right Hand Drive Small 4 ton Refrigerator Van Truck FOTON - FORLAND 4x2
Right Hand Drive Small 4 ton Refrigerator Van Truck FOTON - FORLAND 4x2
Right Hand Drive Small 4 ton Refrigerator Van Truck FOTON - FORLAND 4x2
Right Hand Drive Small 4 ton Refrigerator Van Truck FOTON - FORLAND 4x2
Right Hand Drive Small 4 ton Refrigerator Van Truck FOTON - FORLAND 4x2
Right Hand Drive Small 4 ton Refrigerator Van Truck FOTON - FORLAND 4x2
Specifications
Brand Name :
SUNY
Model Number :
BJ1059
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 9,000 ~ 18,000 / Unit
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Cargo Body Size :
4070*1800*1800 mm
Cargo Body Material :
FRP inside & outside of the van, polyurethane as the insulation
Cargo body thickness :
80mm
Door :
Single Rear Door , Optional Side Door
Temperature Range :
-10C to 0°C
Engine :
80 kw / 108 hp
Displacement (lit) :
2.54
Number of gears :
5 forward gears & 1 reverse
Brake System :
Air braking
Tire :
6.50-16 & 6+1
Cabin :
Single row , Optional A/C
Description

Right Hand Drive Small 4 ton refrigerated truck FOTON - FORLAND 4x2

Box Volume 10 ~ 20 Cubic

4X2 FOTON - FORLAND Refrigerated trucks, Refrigerator Trucks, Frozen Truck , Reefer Van Truck , Cooling Box Truck , Insulation Van Truck (no refrigerator unit)


Thickness: FRP inside & outside of the van, polyurethane as the insulation.

Stainless steel, Q235A steel sheet or aluminum are all optional.
Refrigerators chosen from:
South korean Hanya, HuaSu.
American Thermoking, Carrier.
Chinese Xinfei, Kingbo, etc.


Temperature reaches from -10°C to 0°C
Total capacity: approx. 2000 KG ~ 3000 KG ~ Max .40000 KG
Other spares like hooks, bottom slot, shelves, extra doors, etc. are all optional

Products Technical Specification
Brand-Series FOTON-FORLAND
Product Name 4*2 Refrigerated truck
Fuel type Diesel
Emission Standard Euro 3
Cabin Single row
Chassis standard configuration
Chassis model BJ1059
Whole vehicle main dimensions (mm) Overall dimensions (L×W×H) 5998*2120*3100
Cargo body dimensions (L×W×H) 4070*1800*1800
Wheel base 3360
Front / Rear track base 1415 / 1485
Front / Rear overhang 1085/1430
Weight data (kg) G.V.W 7345
Curb weight (chassis) 3205
Max payload 3000-4000
Whole vehicle
main performance		 Max. speed (km/h) 95
Max. slope of climb (%) 30
Engine Model 4DW92-73
Maximum power 80kw / 78hp
Number of cylinders 4
Displacement (lit) 2.54
Engine Manufacturer FAW Car Co., Ltd. Wuxi Diesel Engine Factory
Gear box Number of gears 5 forward gears & 1 reverse
Axle Front / Rear Load capacity(ton) ·1.5/4
Suspension Front / Rear Spring plate 4/6+7
Steering Wheel left/right hand drive RHD
Brake system Service brake Air braking
Electric device Voltage (V) 24
Tyres & Quantity 6.50-16 & 6+1
Cargo Body Standard Configuration
Cargo Body Size (L×W×H) mm 4070*1800*1800
Cargo Body Material Color plate inside & outside of the van, polyurethane as the insulation
Crago body thickness 80mm
Back Door Single door
Side door Optional
Refrigeration systems Equipped with DT-110S
Temperature Range Normal temperature,refrigeration temperature reached -10°C to 0°C
Others Stainless Steel door frame,Stainless steel corrugated floor, Mark lamp at the four (4) corners f the body,Room lamp will be provided inside the cabin.

1 T Mini Refrigerated Box Truck For You Choose,

Left Hand Drive or Right Hand Drive

Right Hand Drive Small 4 ton Refrigerator Van Truck FOTON - FORLAND 4x2
