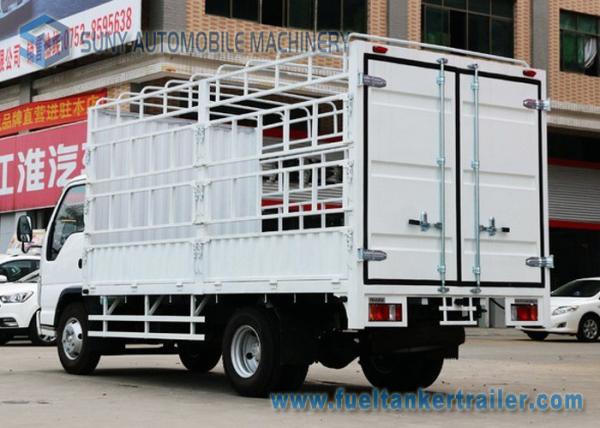

3 T To 5 T Stake Truck 4x2 ISUZU 600P 98 HP Euro 4 ISUZU Engine
3 T To 5 T Stake Truck 4x2 ISUZU 600P 98 HP Euro 4 ISUZU Engine
3 T To 5 T Stake Truck 4x2 ISUZU 600P 98 HP Euro 4 ISUZU Engine
3 T To 5 T Stake Truck 4x2 ISUZU 600P 98 HP Euro 4 ISUZU Engine
3 T To 5 T Stake Truck 4x2 ISUZU 600P 98 HP Euro 4 ISUZU Engine
3 T To 5 T Stake Truck 4x2 ISUZU 600P 98 HP Euro 4 ISUZU Engine
Specifications
Brand Name :
SUNY
Model Number :
QL1040
Certification :
CCC, ASME, BV, SGS, etc
Place of Origin :
China
MOQ :
1 unit
Price :
USD 15,000 ~ 25,000 / Unit
Payment Terms :
T/T, L/C
Supply Ability :
500 Units / Month
Delivery Time :
15 ~ 20 working days
Packaging Details :
After Waxing by Container , RO-RO , Bulk Freighter
Van dimensions :
4250*1780*400+1400 mm
Wheel base :
3360 mm
Load Capacity :
3000 kg ~ 5000 kg
Engine :
88 kw / 120 hp
Displacement (L) :
2.999
Number of gears :
5 forward gears & 1 reverse
left/right hand drive :
Optional
Cabin :
600p Cabin with A/C
Description

3 T To 5 T Stake Truck 4x2 ISUZU 600P 98 HP Euro 4 ISUZU Engine

Box materials Corrugated iron ,

Optional Stainless steel , aluminum, insulation materials , Refrigerated trucks

Drive Type : 4x2 Optional 4x4 6x4 6x6 8x4 8x8

Load Capacity : 3 T ~ 4 T ~ 5 T

Chassis Brand ISUZU
Product Name 4*2 Stake Truck
Fuel type Diesel
Emission Standard Euro 4
Cabin 600P,Single row,with A/C
Whole Vehicle
main dimensions (mm)		 Overall dimensions (L×W×H) 5995*1910*2880
Van dimensions 4250*1780*400+1400
Wheel base 3360
Front overhang 1015
Rear overhang 1620
Min. ground clearance 510
Weight data (kg) G.V.W 4495
Curb weight (chassis) 2715
Max payload 3000-5000
Whole vehicle
main performance		 Max. speed (km/h) 105
Max. slope of climb (%) 30
Engine Model 4KH1-TCG40
Maximum power 88 kw / 120 hp
Number of cylinders 4
Displacement (L) 2.999
Engine Manufacturer Qingling Isuzu (Chongqing) Engine Co., Ltd.
Gear box Number of gears 5 forward gears & 1 reverse
Axle Drive axle 4.8 T
Suspension Leaf spring 8/6+5
Steering Wheel left/right hand drive LHD
Brake system Service brake Oil braking
Electric device Rated voltage 24V
Tyres & Quantity 6.50-16 & 6+1
Van description Equipped with rear door , Box materials Corrugated iron

10 T ISUZU 700P Stake Truck For you choose:

3 T To 5 T Stake Truck 4x2 ISUZU 600P 98 HP Euro 4 ISUZU Engine
