High Speed Cardboard Paper Flute Laminator Machine Quick Setup
High Speed Cardboard Paper Flute Laminator Machine Quick Setup
Specifications
Uv Lamp Life :
800-1000 hours
Coating Speed :
0-20m/min
Max Coating Width :
320mm
Max Coating Thickness :
5mm
Color :
Black
Weight :
35kg
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Uv Lamp Power :
2KW
Dimensions :
600mm x 480mm x 350mm
Brand Name :
FINTEECH
Model Number :
1450L/1700L
Certification :
CE
Place of Origin :
CHINA
Description
VELOCITYLAM HIGH SPEED FLUTE BONDING LINE
Product Description

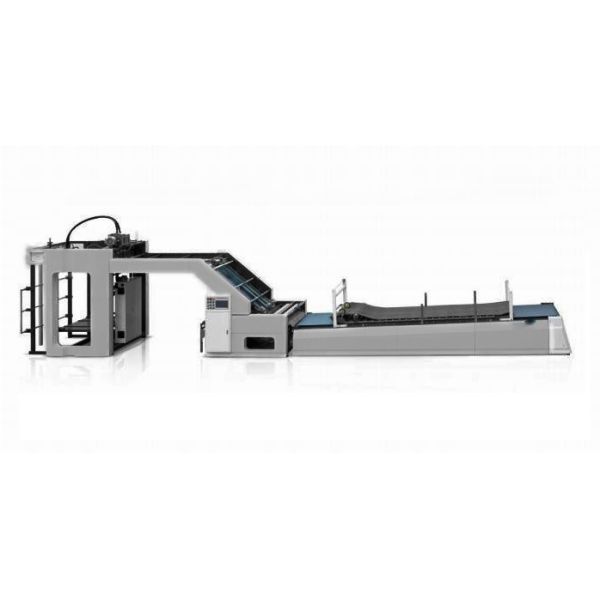

This High Speed Automatic Flute Laminator is designed for laminating printed cardboard paper with 3-ply or 5-ply corrugated sheets, primarily used in food and beverage packaging. The machine features:
  • Chasing registration method with imported low-voltage components
  • Advanced liquid sensor and motion control system
  • Precision servo rectifying system with multiple photoelectric induction controls
  • Automatic adjustment capability - simply input paper size for quick setup
Technical Specifications
Specification 1450L 1700L
Max sheet size 1450 × 1450mm 1700 × 1650mm
Min sheet size 390 × 360mm 390 × 360mm
Top sheet thickness 125-600GSM 150-600GSM
Bottom sheet thickness 0.3-12mm (A/B/C/E/F corrugated paper, Industrial board)
Max speed 15,000 sheets/hour 15,000 sheets/hour
Fitting precision ±1mm ±1mm
Dimensions 14.5 × 2.2 × 2.7M 16.3 × 2.4 × 2.9M
Machine weight 6,500kg 7,500kg
Machine power 24.5KW/380V 26KW/380V
Bottom paper height 400mm 400mm
Top paper height 1,800mm 1,800mm
