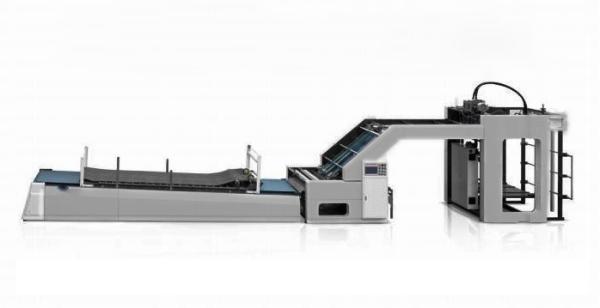

HIGH SPEED FLUTE LAMINATOR MACHINE
HIGH SPEED FLUTE LAMINATOR MACHINE
Specifications
Brand Name :
FINTEECH
Certification :
CE
Place of Origin :
CHINA
Model Number :
1450L /1700L
MOQ :
1set
Packaging Details :
wooden case
Delivery Time :
20-30 days
Payment Terms :
TT/LC
Supply Ability :
10 sets per day
Description
Instruction:

This High Speed Automatic Flute Laminator is suitable for the lamination of printed cardboard paper with 3 ply or 5 ply corrugated sheet which is mainly used in food, beverage boxes etc.The machine adopts chasing registration method with the help of imported low-voltage parts, liquid sensor and motion control system. The equipment adopts the perfect combination of motion control system and servo rectifying system, and uses multiple groups of photoelectric induction base paper relative position to control the two sides of the paper servo motor to do independent compensation work, only need to input paper size can be automatically completed adjustment equipment, operation and production.

Specification:
Model 1450L 1700L
Max sheet size 1450*1450mm 1700*1650mm
Min sheet size 390*360mm 390*360mm
Top sheet thickness 125-600GSM 150-600GSM
Bottom sheet thickness 0.3-12mm A/B/C/E/F etc Corrugated paper, Industrial board
Max speed( sheets/hour) 15000sheet/hour 15000sheet/hour
Fitting precision ±1mm ±1mm
Dimensions 14.5*2.2*2.7M 16.3*2.4*2.9M
Machine weight 6500kgs 7500kgs
Machine power 24.5KW/380V 26KW/380V
Bottom paper height 400mm 400mm
Top paper height 1800mm 1800mm
