GYXTW Style Fiber Optical Cable 1 Core Outdoor Aerial Application Steel Wire
GYXTW Style Fiber Optical Cable 1 Core Outdoor Aerial Application Steel Wire
GYXTW Style Fiber Optical Cable 1 Core Outdoor Aerial Application Steel Wire
GYXTW Style Fiber Optical Cable 1 Core Outdoor Aerial Application Steel Wire
GYXTW Style Fiber Optical Cable 1 Core Outdoor Aerial Application Steel Wire
GYXTW Style Fiber Optical Cable 1 Core Outdoor Aerial Application Steel Wire
Specifications
Fiber count :
1-288 Cores
Brand Name :
ODM/OEM/IDEX
moq :
1000m
Delivery Time :
30 days
Model Number :
GYXTW
Price :
usd 79～ 89/ meter
Place of Origin :
china
Payment Terms :
Western Union,T/T,D/P,D/A,L/C
Application :
FTTX Network
Supply Ability :
800–1500 kilometers per month
Certification :
CE，VDE,SO 9001
MOQ :
1000
Type :
Fiber Optic Cable
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Description

GYXTW Style Fiber Optical Cable 1 Core Outdoor Aerial Application Steel Wire

Product Overview

GYXTW 1 core outdoor fiber optic cable is a practical central loose tube light-armored communication cable, tailor-made for outdoor aerial and pipeline laying scenarios. Adopting mature industry-standard GYXTW structural design, this single-core optical cable is equipped with dual parallel steel wire strength members and steel-plastic composite belt armoring, balancing lightweight body and reliable mechanical protection performance.
Different from multi-core bulky optical cables, the 1-core compact design is more targeted for simple single-channel signal transmission projects. With full water-blocking structure, ultra-stable single-mode transmission and strong outdoor weather resistance, it serves as a cost-effective basic wiring solution for rural network renovation, community auxiliary wiring, monitoring signal transmission and short-distance outdoor communication lines.
Model GYXTW
Fiber Count 2~24
Cable - OD(mm) 9.0±0.5
Cable - Thickness(mm) 2.0±0.1
Cable - Material PE
Loose tube - OD(mm) 3.0±0.1
Loose tube - Material PBT
Nominal weight(kg/km) 98
Max.tensile Strength(N) - Short-term 1500
Max.tensile Strength(N) - Long-term 700
Min.Bending Radius - Dynamic 20D
Min.Bending Radius - Static 10D
Max.Crush Resistance(N/100mm) - Short-term 2200
Max.Crush Resistance(N/100mm) - Long-term 1000
Strength members Steel tape & steep wire
Color According to contract
Environmental Protection RoHS COMPLIANT

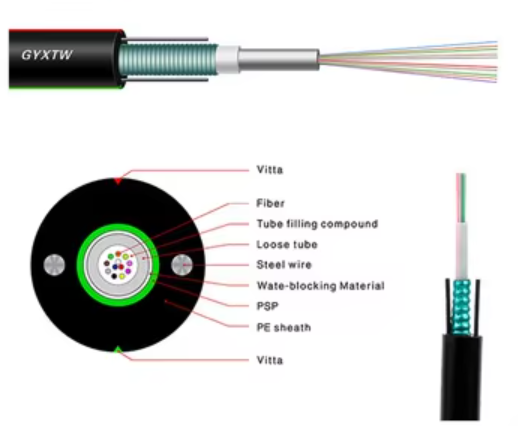

Professional Internal Structure

The cable adopts classic central loose tube layered structure, with every component optimized for outdoor long-term operation, sturdy and durable without redundant design:
  • Single Mode Optical Fiber: Adopts standard 9/125μm G652D single-mode fiber, stable optical performance, low transmission attenuation, fully compliant with ITU-T international standards
  • PBT Loose Tube: High-modulus PBT material wraps the single fiber, filled with special fiber ointment inside. It effectively buffers external extrusion and bending stress, preventing fiber damage and signal fluctuation
  • Full Water-Blocking System: The gap between the loose tube and armor layer is filled with water-blocking materials, realizing longitudinal overall water resistance to isolate moisture and humid air
  • PSP Steel-Plastic Composite Belt: Double-sided coated steel tape longitudinal wrapping forms light armor protection, improving lateral pressure resistance and avoiding cable core extrusion deformation
  • Dual Parallel Steel Wire Reinforcement: Two symmetrically arranged high-strength steel wires provide lasting tensile force, perfectly adapting to long-distance aerial suspension laying
  • HDPE Outer Sheath: Thickened black high-density polyethylene sheath, featuring UV resistance, anti-aging, corrosion resistance and abrasion resistance, adapting to complex outdoor climatic environments

GYXTW Style Fiber Optical Cable 1 Core Outdoor Aerial Application Steel Wire

Wide Application Scenarios

This GYXTW 1-core outdoor optical cable is designed for single-channel stable transmission, widely used in various basic outdoor communication engineering scenarios:
  • Outdoor aerial wiring for rural broadband network renovation
  • Monitoring system signal transmission for roads, parks and residential areas
  • Short-distance pipeline communication and auxiliary network wiring
  • Small factory, warehouse and villa outdoor network access lines
  • Basic trunk line connection for community and campus auxiliary communication
  • CATV signal transmission and short-distance data communication projects
