ZC KVV Control Cable PVC Insulated Flame Regardant Unarmoured Copper Cable
ZC KVV Control Cable PVC Insulated Flame Regardant Unarmoured Copper Cable
ZC KVV Control Cable PVC Insulated Flame Regardant Unarmoured Copper Cable
ZC KVV Control Cable PVC Insulated Flame Regardant Unarmoured Copper Cable
Specifications
Insulation Color :
Black
Delivery Time :
7-15 Working Days
Email :
sale@ftcable.com
Brand Name :
F.T
MOQ :
1000
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Conductor :
soft annealed copper
Voltage Rating :
450/750 Volts
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Model Number :
control cable
Supply Ability :
800–1500 kilometers per month
Certification :
CE，VDE,SO 9001，ul
Place of Origin :
china
Price :
usd 0.75 ～ 1.8 / meter
Temperature Range :
-20°C to +70°C
Insulation :
PVC
Description

ZC KVV Control Cable-PVC Insulated Flame Regardant Unarmoured Copper Cables

ZC KVV Control Cable Application

Control cable is primarily used in supervisory electrical equipment and station control circuits in light ordinary or heavy duty industry where power distribution device is needed to transmit control signals or measure signal operations.The main feature of the flame retardant cable is hard to get fire or that the continous burning of cables is very limited when it is on fire. It applies to the places with special demands for flame retardant property. Flame retardant cable is classified as Class A, B or C. Amongst the 3 class , Class A is the best in aspect of flame retardant.

ZC KVV Cable Standard

IEC 60227, IEC 60502, GB/T 9330, BS 6500

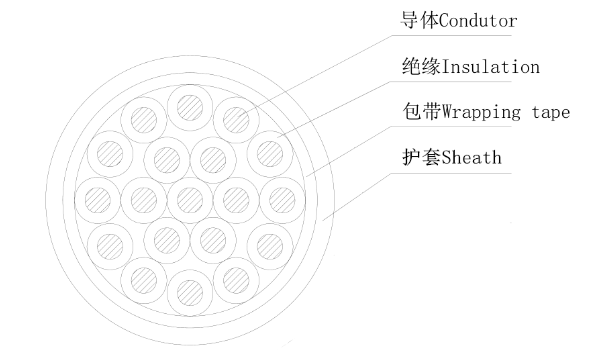

ZC KVV Cable Structure

ZC KVV Control Cable PVC Insulated Flame Regardant Unarmoured Copper Cable

Specifications

Nominal
Size		 Conductor Structure Insulation Thickness Sheath Thickness Approx.
Overall Dia.		 Approx. Weight Nominal
Size		 Conductor Structure Insulation Thickness Sheath Thickness Approx.
Overall Dia.		 Approx. Weight
mm2 No./mm mm mm mm kg/km mm2 No./mm mm mm mm kg/km
2×0.75 1/0.97 0.6 1.2 6.8 59 2×0.75 7/0.37 0.6 1.2 7.1 62
3×0.75 1/0.97 0.6 1.2 7.2 68 3×0.75 7/0.37 0.6 1.2 7.4 71
4×0.75 1/0.97 0.6 1.2 7.8 83 4×0.75 7/0.37 0.6 1.2 8.1 87
5×0.75 1/0.97 0.6 1.2 8.4 101 5×0.75 7/0.37 0.6 1.2 8.8 106
6×0.75 1/0.97 0.6 1.2 9.0 118 6×0.75 7/0.37 0.6 1.2 9.4 123
7×0.75 1/0.97 0.6 1.2 9.0 123 7×0.75 7/0.37 0.6 1.2 9.4 129
8x0.75 1/0.97 0.6 1.2 9.7 138 8x0.75 7/0.37 0.6 1.2 10.1 144
10x0.75 1/0.97 0.6 1.2 11.2 174 10x0.75 7/0.37 0.6 1.2 11.7 182
12x0.75 1/0.97 0.6 1.5 12.1 210 12x0.75 7/0.37 0.6 1.5 12.7 219
14x0.75 1/0.97 0.6 1.5 12.7 236 14x0.75 7/0.37 0.6 1.5 13.3 247
16x0.75 1/0.97 0.6 1.5 13.3 266 16x0.75 7/0.37 0.6 1.5 13.9 277
19x0.75 1/0.97 0.6 1.5 14.0 301 19x0.75 7/0.37 0.6 1.5 14.6 314
24x0.75 1/0.97 0.6 1.5 16.1 376 24x0.75 7/0.37 0.6 1.5 16.9 393
27x0.75 1/0.97 0.6 1.5 16.4 407 27x0.75 7/0.37 0.6 1.5 17.3 426
30x0.75 1/0.97 0.6 1.5 17.1 446 30x0.75 7/0.37 0.6 1.5 17.9 466
37x0.75 1/0.97 0.6 1.7 18.7 549 37x0.75 7/0.37 0.6 1.7 19.6 574
44x0.75 1/0.97 0.6 1.7 20.9 649 44x0.75 7/0.37 0.6 1.7 21.9 679
48x0.75 1/0.97 0.6 1.7 21.2 692 48x0.75 7/0.37 0.6 1.7 22.3 722
52x0.75 1/0.97 0.6 1.7 21.7 737 52x0.75 7/0.37 0.6 1.7 22.8 770
61x0.75 1/0.97 0.6 1.7 23.1 852 61x0.75 7/0.37 0.6 1.7 24.3 889
