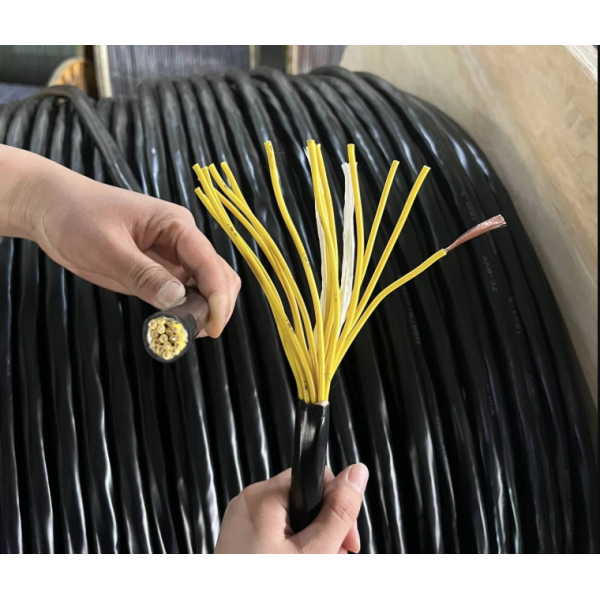

KVV Copper 6 7 8 10 12 Core 1.5 2.5 4mm Flame Retardant Multi Core Power Cable
KVV Copper 6 7 8 10 12 Core 1.5 2.5 4mm Flame Retardant Multi Core Power Cable
KVV Copper 6 7 8 10 12 Core 1.5 2.5 4mm Flame Retardant Multi Core Power Cable
KVV Copper 6 7 8 10 12 Core 1.5 2.5 4mm Flame Retardant Multi Core Power Cable
KVV Copper 6 7 8 10 12 Core 1.5 2.5 4mm Flame Retardant Multi Core Power Cable
KVV Copper 6 7 8 10 12 Core 1.5 2.5 4mm Flame Retardant Multi Core Power Cable
Specifications
Price :
usd 0.75 ～ 1.8 / meter
Nominal Voltage :
300V/500V
Place of Origin :
china
MOQ :
1000
Temperature Range :
-20°C to +70°C
Insulation :
PVC
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Test Voltage :
1000V
Certification :
CE，VDE,SO 9001，ul
Supply Ability :
800–1500 kilometers per month
Insulation Color :
White-Black
Delivery Time :
7-15 Working Days
Conductor :
Copper
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Brand Name :
F.T
Model Number :
control cable
Description

Kvv Copper Control Cable 6/7/8/10/12 Core 1.5/2.5/4 mm Flame Retardant Multi-Core power cable

KVV control cable, fully known as polyvinyl chloride (PVC) insulated and sheathed control cable, is a copper-core PVC insulated and sheathed control cable, belonging to the category of fixed-laying power cables. Its implementation standards include GB/T 9330-2008, IEC60227, and IEC60502, and it is widely used in control and monitoring circuits and protection lines with an AC rated voltage of 450V/750V and below.
The conductor is typically a copper core, including oxygen-free copper, which is divided into two types: Class 1 single-strand and Class 2 7-strand stranded copper conductors. The insulation layer is made of polyvinyl chloride (PVC) material with digital coding, and the sheath is also made of PVC, with plastic filling inside to enhance mechanical properties. The cable can be produced with a range of 2-61 cores, and common conductor cross-sections include 0.75mm², 1.0mm², 1.5mm², 2.5mm², etc. The long-term operating temperature should not exceed 70℃, and the laying ambient temperature needs to be higher than 0℃. For unarmored models, the minimum bending radius is 6 times the outer diameter of the cable, while for shielded or armored structures, it is 12 times. This cable is suitable for indoor, cable trench, pipeline, or direct burial environments in power plants, stations, and other places. Shielded cables are commonly used in complex electromagnetic environments due to their anti-interference performance. The main derivative models include KVVR flexible cables, KVVP shielded cables, KVVP22 armored cables, etc.

Control Cable Comparison Table (KVV Series)

Model
Flexibility
Shielding
Installation
Anti-Interference
Typical Applications
KVV
❌ Rigid
❌ None
Fixed
⭐ Low
Indoor,cable tray,fixed control wiring
KVVR
✅ Flexible
❌ None
Mobile
⭐ Low
Connections requiring bending
KVVP
❌ Rigid
✅ Yes
Fixed
⭐⭐⭐ High
Signal control in high-interference areas
KVVRP
✅ Flexible
✅ Yes
Mobile
⭐⭐⭐ High
Mobile equipment,anti-interference

KVV Copper 6 7 8 10 12 Core 1.5 2.5 4mm Flame Retardant Multi Core Power Cable

Specifications

Type
Name
Rated Voltage
Number of cores
Section Area (mm2)
Range of application
KVV
Copper Conductor,PVC Insulated and Sheathed Control Cable
450V/750V
2-61
0.75-2.5
For laying indoors,in cable trench,pipelines and other fixed occasion
2-14
4-6
2-10
10
KVV22
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable
7-61
0.75-1.5
For laying indoors,in cable trench,directly buried pipeline and other fixed occasion,also can bear larger external mechanical
forces
4-61
2.5
4-14
4-6
4-10
10
KVVP
Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable
2-61
0.75-2.5
For laying indoors,in cable trench,pipelines,etc,and somewhere that need fixed installation
2-14
4-6
2-10
10
KVVP2
Copper Conductor,PVC Insulated and Sheathed,Coppertape Screened Control Cable
4-61
0.75-2.5
For laying indoors,in cable trench,directly buried pipeline and other fixed occasion,also can bear larger external mechanical
forces
4-14
4-6
4-10
10
KVVR
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable
4-61
0.75-2.5
For laying indoors,where there is a requirement for mobile
KVVRP
Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable
4-61
0.75-1.0
For laying indoors,where there is a requirement for mobile screen
