Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Rubber Sheathed Flexible Cable
Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Rubber Sheathed Flexible Cable
Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Rubber Sheathed Flexible Cable
Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Rubber Sheathed Flexible Cable
Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Rubber Sheathed Flexible Cable
Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Rubber Sheathed Flexible Cable
Specifications
Model Number :
MYP
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Supply Ability :
800–1500 kilometers per month
Insulation Material :
Rubber, rubber
Working Temperature :
65
Sample :
Contact to get free sample
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Rated Voltage :
0.66/1.14
Type :
Low Voltage, High Voltage
Warranty :
100%quanlified
Place of Origin :
Shaanxi, China
Rated Current :
200A-2000A
Hot Sale Size :
70mm, 120mm,400mm,95mm
Jacket :
Rubber
Certificate :
ISO9001/CCC
Certification :
Coal Mine Safety Certification
Delivery Time :
30 days
Size :
3*16+1*10
MOQ :
1000m
Conductor Material :
Copper
MOQ :
1000
Price :
usd 1～ 10 / meter
Brand Name :
F.T
Description

Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Flexible Rubber Sheathed Cable

Product Overview

The MYP 0.6/1kV mining power cable is designed for underground mining equipment, heavy-duty industrial machinery, and mobile power distribution systems. Featuring high-conductivity copper conductors and a durable rubber sheath, this cable provides reliable electrical performance, excellent flexibility, and strong resistance to abrasion and harsh working environments.

Widely used in coal mines, tunnels, construction sites, and industrial power systems, the cable ensures stable power transmission under frequent movement and mechanical stress conditions.

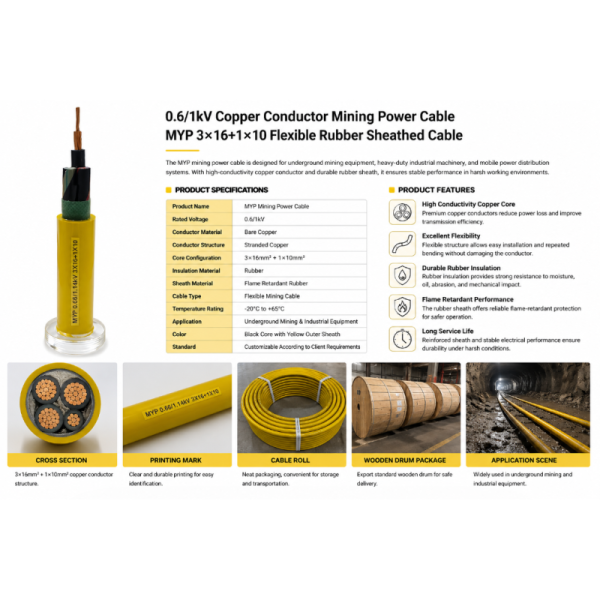

Product Specifications

Item Description
Product Name MYP Mining Power Cable
Rated Voltage 0.6/1kV
Conductor Material Bare Copper
Conductor Structure Stranded Copper
Core Configuration 3×16mm² + 1×10mm²
Insulation Material Rubber
Sheath Material Flame Retardant Rubber
Cable Type Flexible Mining Cable
Temperature Rating -20°C to +65°C
Application Underground Mining & Industrial Equipment
Color Black Core with Yellow Outer Sheath
Standard Customizable According to Client Requirements

Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Rubber Sheathed Flexible Cable

Product Features

High Conductivity Copper Core

The cable uses premium copper conductors to reduce power loss and improve transmission efficiency. Stable conductivity helps ensure safe and continuous operation for mining equipment.

Excellent Flexibility

Designed for movable machinery and dynamic working conditions, the flexible structure allows easier installation and repeated bending without damaging the internal conductor.

Durable Rubber Insulation

High-quality rubber insulation offers strong resistance to moisture, oil, abrasion, and mechanical impact, making the cable suitable for demanding underground environments.

Flame Retardant Performance

The outer sheath provides reliable flame-retardant protection, helping improve operational safety in mines and industrial workplaces.

Long Service Life

With reinforced sheath protection and stable electrical performance, the cable maintains durability even under harsh environmental conditions.

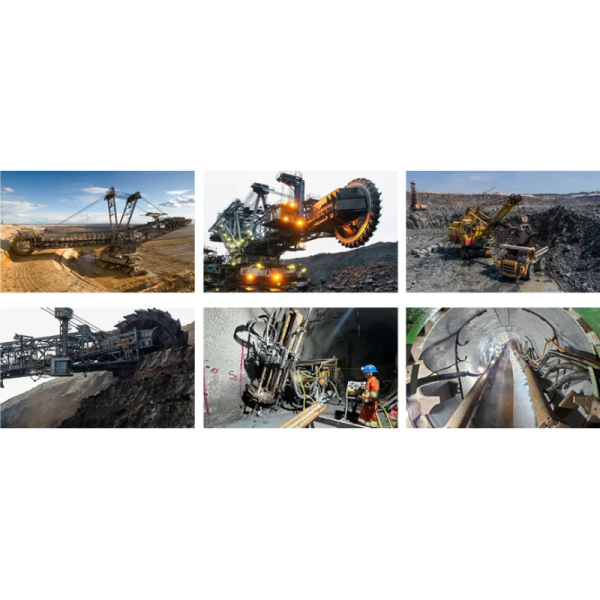

Applications

  • Underground mining power systems
  • Coal mining equipment
  • Tunnel construction projects
  • Mobile industrial machinery
  • Heavy-duty electrical installations
  • Portable power distribution systems

Mining Power Cable 0.6/1kV Copper Conductor MYP 3×16+1×10 Rubber Sheathed Flexible Cable

Advantages

  • Stable electrical transmission
  • Strong mechanical protection
  • Flexible for mobile equipment
  • Resistant to wear and moisture
  • Suitable for harsh industrial environments
  • OEM & customized specifications available
