Waterproof 450V 750V 2 X 4 Coal Mine Cable Perfect For Wet Mining Conditions
Waterproof 450V 750V 2 X 4 Coal Mine Cable Perfect For Wet Mining Conditions
Waterproof 450V 750V 2 X 4 Coal Mine Cable Perfect For Wet Mining Conditions
Waterproof 450V 750V 2 X 4 Coal Mine Cable Perfect For Wet Mining Conditions
Waterproof 450V 750V 2 X 4 Coal Mine Cable Perfect For Wet Mining Conditions
Waterproof 450V 750V 2 X 4 Coal Mine Cable Perfect For Wet Mining Conditions
Specifications
Type :
High Voltage
Warranty :
100%quanlified
Certification :
Coal Mine Safety Certification
Model Number :
MYQ
MOQ :
1000
Delivery Time :
30 days
Rated Current :
200A-2000A
Hot Sale Size :
70mm, 120mm,400mm,95mm
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Insulation Material :
Rubber
Certificate :
ISO9001/CCC
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Sample :
Contact to get free sample
Price :
usd 1 ～10/ meter
MOQ :
1000m
Supply Ability :
800–1500 kilometers per month
Brand Name :
F.T
Rated Voltage :
0.3/0.5 KV.
Conductor Material :
Copper
Place of Origin :
Shaanxi, China
Description

Waterproof 450V 750V 2 X 4 Coal Mine Cable Perfect For Wet Mining Conditions


Products Description

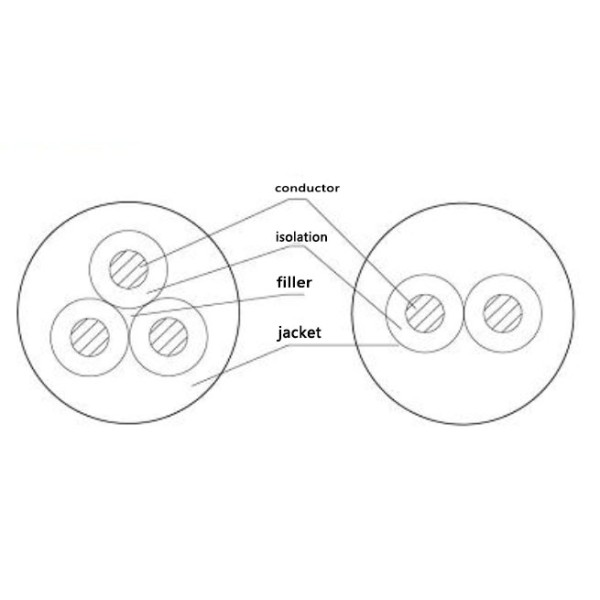

Product structure
The application scenarios of coal mining cables in coal mines include: Connecting coal mining machines, transportation machines and basic lighting equipment:
to ensure the normal operation and safety of mining equipment. Communication and signal transmission:
to ensure smooth communication in the mine and improve efficiency and safety. In terms of safety requirements, coal mine cables must be flame-retardant to prevent further expansion of the disaster in case of fire in the mine. In addition, the bending radius of the cable must not be greater than six times its outer diameter to ensure flexible use in the narrow space of the mine.
Waterproof 450V 750V 2 X 4 Coal Mine Cable Perfect For Wet Mining Conditions
ItemTechnical DataRated Voltage450/750 VCore Specification2×4 mm²Conductor MaterialAnnealed stranded copperMaximum DC Resistance (20℃)≤4.61 Ω/kmMinimum Insulation Resistance≥90 MΩ·kmContinuous Working Temperature-20℃ ~ +65℃Allowable Short-term Overload Temperature+150℃Static Bending Radius≥6 times of cable outer diameterDynamic Bending Radius≥8 times of cable outer diameterWaterproof GradeLong-term immersion resistant for mining useFlame Retardant GradeMining standard flame retardant.
This cable maintains stable electrical performance even when soaked in mine water for a long time, no leakage or voltage drop, and meets the power supply requirements of continuous operation of mining equipment.
Application Scope & Usage Notes
Main Application Scenarios
This 450/750V 2×4 waterproof coal mine cable is mainly used for all kinds of wet underground mining working faces, coal roadways and mine auxiliary tunnels:
Power supply for small mobile mining machinery and handheld mining tools;
Temporary power distribution lines and mobile power boxes in humid mine areas;
Underground tunnel lighting circuits and signal connection lines;
Water-rich mine roadways, quarry tunnels and other similar damp industrial sites.
