Modern power distribution systems require cable solutions that balance electrical performance, installation efficiency, and lifecycle cost. The AA-8000 Aluminum Alloy Conductor Power Cable is developed to meet these requirements by combining advanced aluminum alloy conductor technology with high-quality insulation and protective sheath materials.

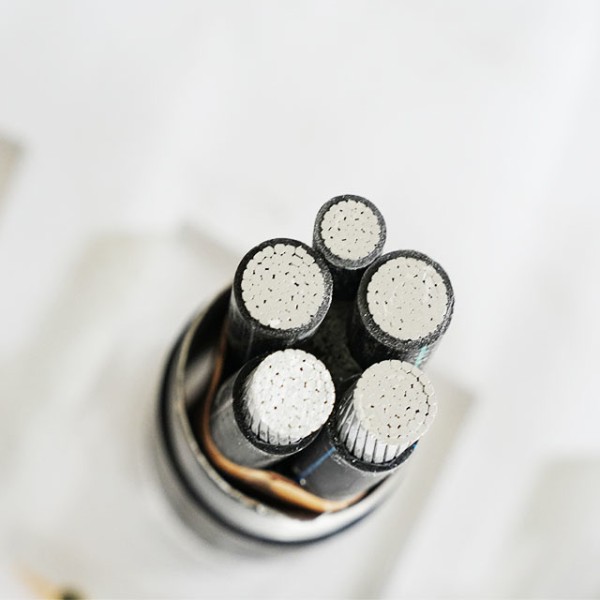

The cable shown above features multi-core compact stranded aluminum alloy conductors, designed for fixed electrical installations in residential buildings, commercial facilities, industrial plants, and public infrastructure. Compared with traditional conductor materials, aluminum alloy provides a practical combination of lower weight, improved mechanical properties, and reliable conductivity, making it an increasingly preferred option for low-voltage distribution projects.

Manufactured in accordance with applicable cable standards, the product supports customized conductor sizes, insulation materials, core configurations, and sheath options to satisfy different engineering specifications.

Cable Construction

Aluminum Alloy Conductor

The cable uses compact stranded AA-8000 series aluminum alloy conductors, providing an effective balance between conductivity, flexibility, and mechanical strength.

Primary Insulation

Each conductor is individually insulated using PVC or XLPE material, selected according to voltage class and project requirements.

Inner Assembly

Insulated cores are arranged with fillers and wrapping materials to maintain cable geometry and improve mechanical stability.

Protective Outer Sheath

A durable outer jacket protects the cable from abrasion, moisture, and routine environmental exposure during service.

Technical Specification

Application Fields

Commercial Electrical Distribution

Suitable for shopping centers, office buildings, hotels, and mixed-use developments where dependable low-voltage power distribution is required.

Industrial Manufacturing Facilities

Used for supplying power to production equipment, processing lines, workshops, and factory distribution systems.

Residential Developments

Applied in apartment buildings, residential communities, and service entrance installations to provide reliable electrical distribution.

Public Infrastructure

Commonly installed in hospitals, schools, transportation facilities, municipal buildings, and utility engineering projects.

Underground Cable Networks

Suitable for installation in conduits, underground ducts, and protected cable routes designed for permanent electrical distribution.

Renewable Energy Distribution

Can be incorporated into electrical distribution systems supporting photovoltaic installations, battery storage projects, and other renewable energy facilities.

FAQ

Q1. What is an aluminum alloy conductor cable?

An aluminum alloy conductor cable uses specially formulated AA-8000 series aluminum alloy as the conductive material. It is designed for electrical distribution applications requiring reduced cable weight and dependable mechanical performance.

Q2. Why choose aluminum alloy instead of traditional aluminum?

Aluminum alloy conductors provide improved flexibility, higher tensile strength, and better creep resistance while maintaining suitable electrical conductivity for power distribution systems.

Q3. Can this cable replace copper cable?

For many low-voltage distribution applications, aluminum alloy cables are selected as an alternative where project design, conductor sizing, and local electrical regulations permit.

Q4. Which insulation materials are available?

The cable can be manufactured with PVC or XLPE insulation depending on operating temperature, installation environment, and customer specifications.

Q5. Is this cable suitable for underground installation?

Yes. When installed inside suitable conduits or underground duct systems, the cable can be used for fixed underground electrical distribution.

Q6. What conductor sizes can be supplied?

Various conductor cross-sections are available, and customized dimensions can be manufactured according to project requirements.
