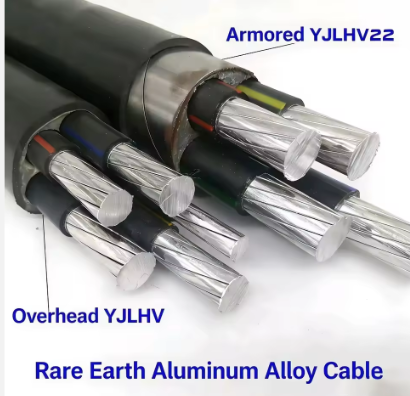

ZC-YJLHV22 Aluminium Alloy Cable 3x25+2/3x35+2x16mm2 Urban Power Cable
ZC-YJLHV22 Aluminium Alloy Cable 3x25+2/3x35+2x16mm2 Urban Power Cable
ZC-YJLHV22 Aluminium Alloy Cable 3x25+2/3x35+2x16mm2 Urban Power Cable
ZC-YJLHV22 Aluminium Alloy Cable 3x25+2/3x35+2x16mm2 Urban Power Cable
ZC-YJLHV22 Aluminium Alloy Cable 3x25+2/3x35+2x16mm2 Urban Power Cable
ZC-YJLHV22 Aluminium Alloy Cable 3x25+2/3x35+2x16mm2 Urban Power Cable
Specifications
Size :
3*35 mm² + 1*16 mm²
Product name :
Aluminum Alloy Cable
Jacket :
PVC
Packaging Details :
Wooden Drum、cardboard box、wooden pallet
Color :
Black
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
800–1500 kilometers per month
Working Temperature :
-25°C ~ 70°C, 90°C
Place of Origin :
china
MOQ :
1000
Insulation Material :
XLPE
Brand Name :
F.T
Certification :
CE，VDE,SO 9001
Price :
usd 2.10 ～ 2.8/ meter
Delivery Time :
30 days
Conductor Material :
Aluminum Alloy
Model Number :
ZC-YJLHV22
Rated Voltage :
0.6kV, 1 kV
Description

Aluminium Alloy Cable ZC-YJLHV22 3*25+2/3*35+2*16 Mm² Urban Power Cable

Product Introduction

On the premise of achieving the same electrical performance, this product is about 30% ~ 50% lower than the price of copper core cable. Its conductor is reliable and stable in terms of creep resistance, high flexibility, strong extension, low rebound and other indicators. Its insulation performance: high insulation grade, high temperature resistance, anti-combustion, anti-aging, low carbon and environmental protection. Aluminum alloy power cable has been widely used in developed countries abroad.

Product Construction.

1. Conductor: 8176 aluminium alloy compactly stranded conductor, offering stable electrical conductivity, creep resistance and corrosion resistance

2. Insulation: XLPE (cross-linked polyethylene) insulation, providing high-temperature resistance, ageing resistance and excellent insulation properties

3. Stranding: Five-core regular stranding, compact structure, high mechanical strength

4. Sheath: Low-smoke, halogen-free/flame-retardant PVC sheath, safe and environmentally friendly, suitable for a variety of installation environments

Item
Technical Specifications
Rated voltage
0.6/1 kV
Conductor material
8176 high-strength aluminium alloy conductor
Conductor structure
150 mm²: 37/2.28 mm; 70 mm²: 19/2.17 mm
DC resistance at 20 °C
150 mm² ≤ 0.202 Ω/km; 70 mm² ≤ 0.443 Ω/km
Permissible long-term operating temperature
≤ 90 °C
Short-circuit withstand temperature
≤ 250 °C (for a maximum of 5 seconds)
Installation ambient temperature
≥ -20 °C
Power frequency withstand voltage test
3.5 kV/1 min, no breakdown
Insulation resistance
≥ 1×10¹⁴ Ω·cm

ZC-YJLHV22 Aluminium Alloy Cable 3x25+2/3x35+2x16mm2 Urban Power Cable

Key Product Benefits.

1. Aluminium alloy conductor, excellent value for money Made from 8176 electrical aluminium alloy, it offers high electrical conductivity and is lightweight. Compared to copper cables, it is more cost-effective and easier to install.
2. High-temperature resistance and anti-ageing properties for extended service life The XLPE insulation has a long-term operating temperature of 90°C and a service life of over 30 years, ensuring excellent circuit stability.
3. Flame-retardant and environmentally friendly, safe and reliable Optional low-smoke, halogen-free and flame-retardant sheathing ensures low smoke and non-toxic emissions in the event of a fire, making it suitable for shopping centres, residential estates and high-rise buildings.
4. Five-core standard configuration, specifically for power distribution The standard 4+1 core design is perfectly suited to three-phase, five-wire power distribution systems, meeting engineering power supply specifications.

FAQ

Q: What is the advantage of aluminum alloy conductors over copper conductors?
A: 35% lighter, lower procurement cost, excellent corrosion/oxidation resistance, comparable mechanical performance, ideal for large-scale applications and weight-sensitive EV scenarios.
Q: Are your aluminum alloy EV cables compatible with all mainstream EV models?
A: Yes. Compatible with EVE/EVT/EVJE/EVJT types (10-120mm², 32A-125A), suitable for all mainstream EVs, HEVs and charging scenarios (residential AC, commercial DC fast charging, battery pack wiring).
Q: What certifications do your cables have?
A: Globally certified (UL 2263, CE, TUV 2 PFG 1940, RoHS, ISO 9001, IATF 16949, GB/T 33594) and compliant with IEC 60332-1, ISO 6722, meeting global EV charging safety standards.
Q: Can the cable withstand harsh outdoor/industrial environments?
A: Yes. -40°C~150°C operating range, XLPE/XLPO insulation + PUR sheath, resistant to oil, acid, UV, hydrolysis and corrosion, suitable for harsh outdoor/industrial use.
Q: Do you offer customized services?
A: Yes. For bulk orders, we customize cross-sectional area, length, color, certifications, and provide installation/debugging technical support.
