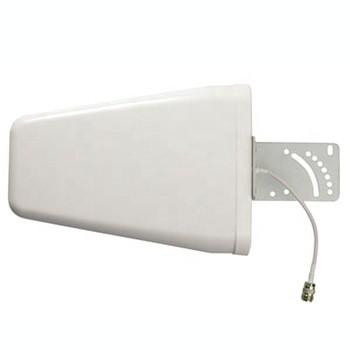

700-2700MHz 8/9dBi GSM 3G 4G LTE WIFI booster repeater Log Periodic Yagi Antenna
700-2700MHz 8/9dBi GSM 3G 4G LTE WIFI booster repeater Log Periodic Yagi Antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXL-7027-9
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
698～960/1710～2700
Bandwidth（MHz） :
262/990
Gain（dBi） :
8/9
VSWR :
≤1.8
Polarization :
Vertical
Maximum input power（W） :
50
Lightning protection :
DC Ground
Input connector type :
N Female
Mounting hardware（mm） :
￠35-￠50
Description

700-2700MHz 8/9dBi GSM 3G 4G LTE WIFI booster repeater Log Periodic Yagi Antenna

Feature:

Exquisite appearance

good defense ability: Impact resistance.waterproofing,anticorrosion,etc.

Optimized dimension

Designed with Broadband technology.

Medium gain, low VSWR

Application:

GSM/CDMA/PCS/3G/WLAN system

AMXL-7027-9

Electrical Specifications

Frequency range(MHz)

698～960/1710～2700

Bandwidth(MHz)

262/990

Gain(dBi)

8/9

Half-power beam width(°)

H:90/70 V:60/55

VSWR

≤1.8

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

N Female

Mechanical Specifications

Dimensions (mm)

295*205*65

Antenna weight(kg)

0.75

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting hardware(mm)

￠35-￠50
