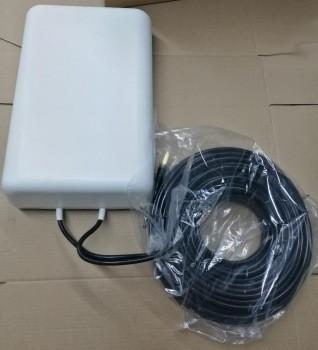

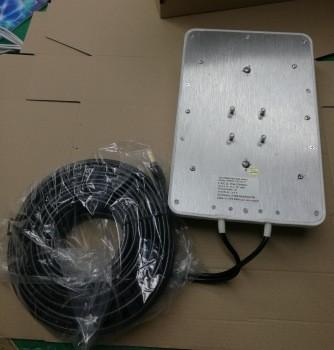

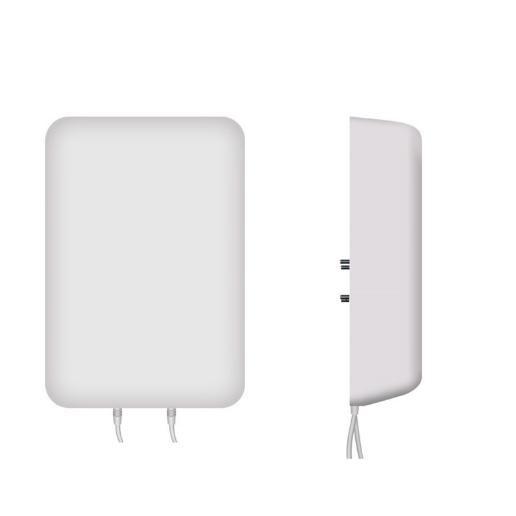

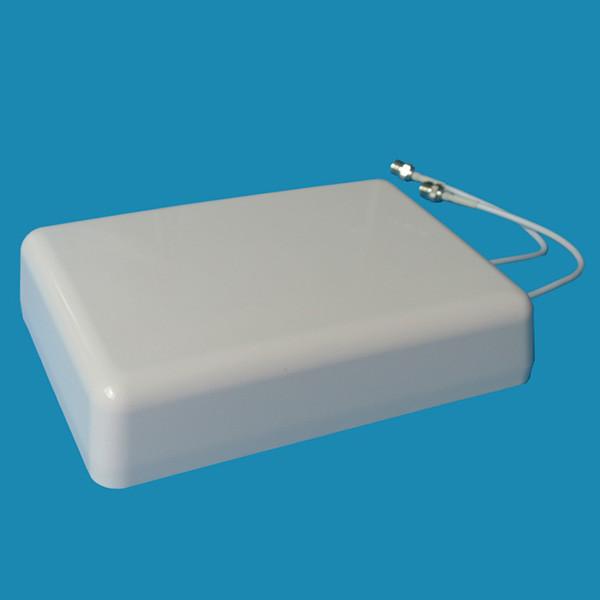

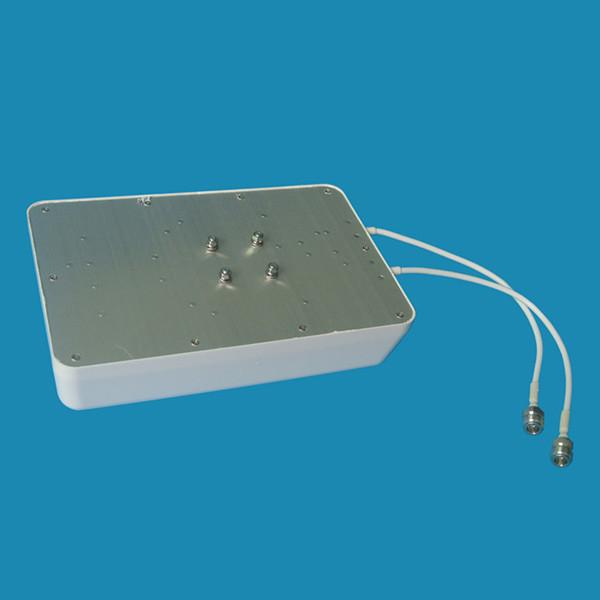

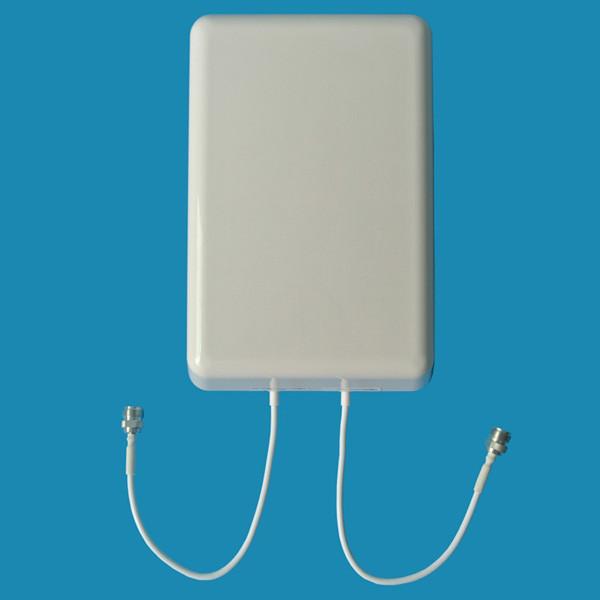

698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-7027VS-8
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
698～960/1710～2500
Bandwidth（MHz） :
262/790
Gain（dBi） :
4/8
VSWR :
≤1.5
Polarization :
Vertical and ±45º
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Description

698-960/1710-2700MHz 8dbi All band CDMA GSM 2G 3G 4G LTE WLAN Outdoor directional MIMO Panel Antenna

Feature:

Exquisite appearance

Suitable for ordinary ceiling mounting

Optimized dimension

Vertical and Horizontal

Application:

GSM/ CDMA/ PCS/ 3G/ WLAN/ 4G/ LTE/ WiFi system

AMXW-7027VS-8

Electrical Specifications
Interface Vertical +45° -45°
Frequency range(MHz) 698～960 1710～2690 1710～2690
Gain(dBi) 4 8 8
Half-power beam width(°) H:85 V:65 H:75 V:55
V.S.W.R. ≤1.8 ≤1.5 ≤1.5
Input Impedance(Ω) 50
Polarization Vertical and ±45º
Maximum input power(W) 50
Lightning protection DC Ground
Input connector type 2xN-Female
Mechanical Specifications
Dimensions(mm) 260*170*60
Antenna weight(kg) 0.72
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color white
Waterproof Standard IP54/ IP65/ IP67
Mounting way wall-hanging or pole-holding
Mounting hardware(mm) ￠35～￠50
