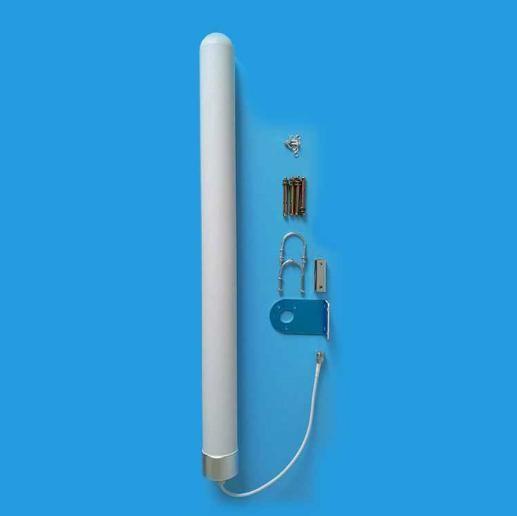

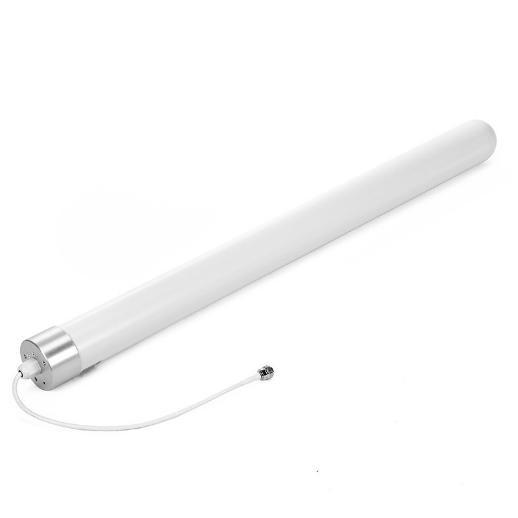

AMEISON 1700 - 2700 MHz High gain 8dbi Outdoor 4G LTE Omnidirectional Antenna
AMEISON 1700 - 2700 MHz High gain 8dbi Outdoor 4G LTE Omnidirectional Antenna
AMEISON 1700 - 2700 MHz High gain 8dbi Outdoor 4G LTE Omnidirectional Antenna
AMEISON 1700 - 2700 MHz High gain 8dbi Outdoor 4G LTE Omnidirectional Antenna
AMEISON 1700 - 2700 MHz High gain 8dbi Outdoor 4G LTE Omnidirectional Antenna
AMEISON 1700 - 2700 MHz High gain 8dbi Outdoor 4G LTE Omnidirectional Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXF-1727-8
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
20
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag or EPE/inner box/master carton or others
Frequency range（MHz） :
1700-2700
Bandwidth（MHz） :
1000
Gain（dBi） :
8
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N female
Mounting way :
Pole-holding
Description

1700 - 2700 MHz High gain 8dbi Outdoor 4G LTE Omnidirectional Antenna

Feature:

Exquisite appearance

Good impact resistance,

waterproofing and anticorrosion ability

Full day working

Optimized dimension

Low standing wave,

Strong anti-interference ability

Application:

CDMA/GSM/PCS/3G/4G/LTE/WLAN/WIFI system

Point-to-multipoint system

AMXF-1727-8

Electrical Specifications
Frequency range(MHz) 1710-2700
Bandwidth(MHz) 990
Gain(dBi) 68
Half-power beam width(°) H:360 V:25
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Cable length 30cm
Input connector type N female or Requested
Mechanical Specifications
Dimensions (mm) Φ60*750
Antenna weight(kg) 1.5
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color White
Mounting way Pole-holding or wall mount
Mounting hardware(mm) ￠35-￠50
