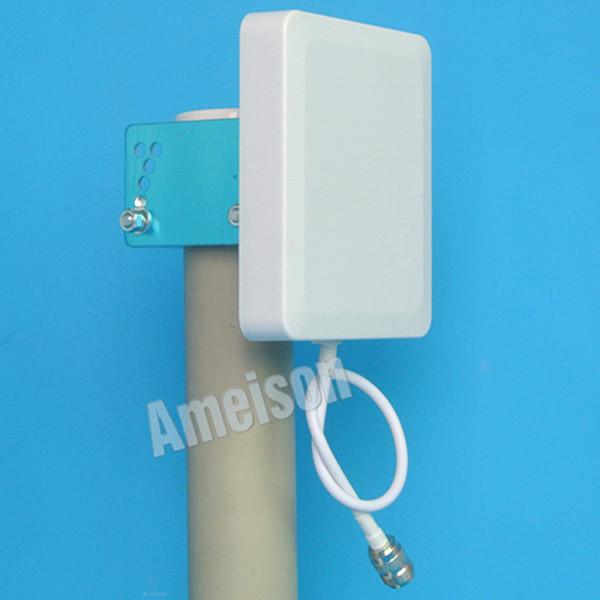

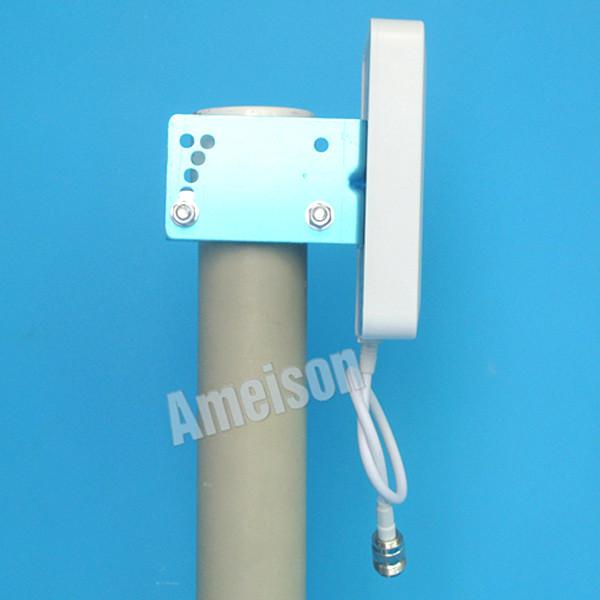

Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Outdoor/Indoor 1920-2170 MHz 3G 10dBi Flat Patch Antenna-N Female Connector
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXW-1922-10A
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
1920-2170
Gain（dBi） :
10
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
wall-hanging or pole-holding
Mounting hardware（mm） :
￠35-￠50
Description

Ameison Flat Panel Antenna
Factory price
Superior performance
Mounting kits included
Waterproof heavy-duty ABS redome

1920-2170MHz Directional Wall Mount Antenna

AMXW-1922-10A

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

3G system

Wireless communication and data transmission system

AMXW-1922-10A

Electrical Specifications

Frequency range(MHz)

1920-2170

Bandwidth(MHz)

250

Gain(dBi)

10

Half-power beam width(°)

H:70 V:55

VSWR

≤1.5

Input Impedance(Ω)

50

Polarization

Vertical

Maximum input power(W)

50

Lightning protection

DC Ground

Input connector type

N Female or Requested

Mechanical Specifications

Dimensions-mm(Height/Width/Depth)

140*120*25

Antenna weight(kg)

0．3

Operating temperature(°c)

-40～60

Rated Wind Velocity(m/s)

60

Radome material

ABS

Radome color

white

Mounting way

wall-hanging or

pole-holding

Mounting hardware(mm)

￠35-￠50
