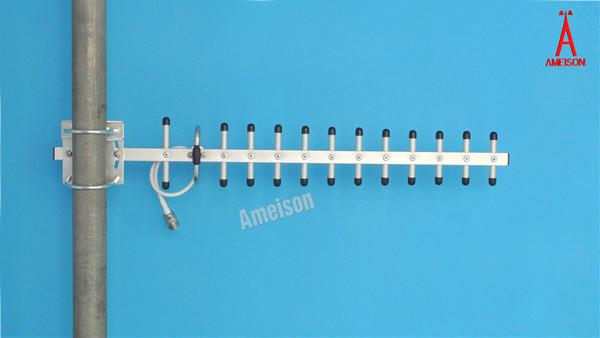

AMEISON 1700-2700MHz 13dbi Outdoor Directional Yagi Antenna 3G 4G LTE repeater booster antenna
AMEISON 1700-2700MHz 13dbi Outdoor Directional Yagi Antenna 3G 4G LTE repeater booster antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXY-1727-13
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
500
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Frequency range(MHz) :
1700-2700
Gain(dBi) :
13
Polarization :
Horizontal or Vertical
Lightning protection :
DC Ground
Input connector type :
SMA male or others
Material :
Aluminum
Name :
1700-2700mhz Yagi Antenna
Description

AMEISON 1700-2700MHz 13dbi Outdoor Directional Yagi Antenna 3G 4G LTE repeater booster antenna

Feature:

High gain

Aluminum alloy framework

Full day working

Optimized dimension

Mounting way can be Vertical or Horizontal

Application::

DCS,3G,WIFI,LTE,4G system

Point-to-point,point-to-multipoint system

Wireless bridging,client termination antenna

AMXY-1727-13

Electrical Specifications
Frequency range(MHz) 1700-2700
Bandwidth(MHz) 1000
Gain(dBi) 13
Element 11
Half-power beam width(°) H:40 V:37
Front-to-back ratio(dB) ≥16
VSWR ≤2.0
Input Impedance(Ω) 50
Polarization Horizontal or Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type SMA or others
Mechanical Specifications
Dimensions(mm) 460*70*44
Cable length(m) 0.3
Antenna weight(kg) 0.31
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Clamp U-shape
Mounting hardware(mm) Φ35～Φ50
