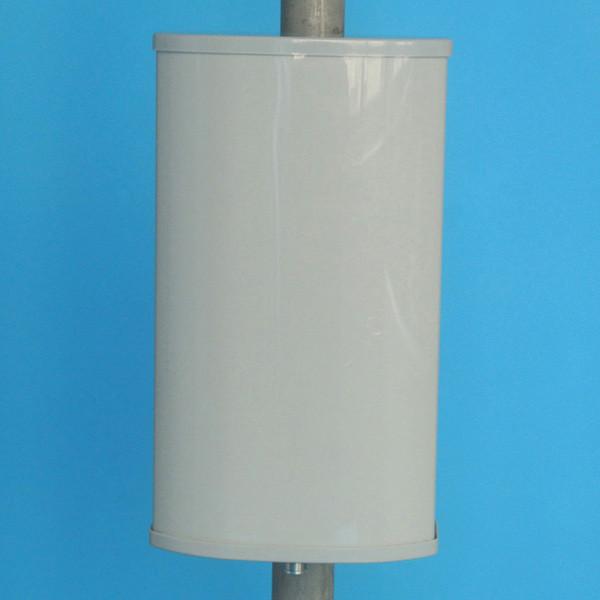

1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna
1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna
1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna
1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna
1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna
1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXP-1722S-D11L90
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency Range :
1710～2170MHz
Type :
Sector Panel Antenna
Polarization :
±45º
Gain（dBi） :
11
half-power beam width（°） :
H:90 V:30
Front-to-back ratio（dB） :
≥23
Input Impedance（Ω） :
50
VSWR :
≤1.5
Maximum input power（W） :
200
Lightning protection :
DC Ground
Input connector type :
N Female
Description

1710 - 2170 MHz X-Polarity 90 Degree Directional Base Station Repeater Sector Panel Antenna

AMXP-1722V-D14L90

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

DCS,PCS,3G system

Wireless communication and data transmission system

AMXP-1722S-D11L90

Electrical Specifications
Frequency range(MHz) 1710～2170
Polarization ±45º
Gain(dBi) 2×11
Half-power beam width(°) H:90 V:30
Front-to-back ratio(dB) ≥23
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports(dB) ≥28
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type 2-N Female
Dimensions-mm (Height/Width/Depth) 330*175*80
Packing size(mm) 360*200*150
Antenna weight (kg) 1.3
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP67

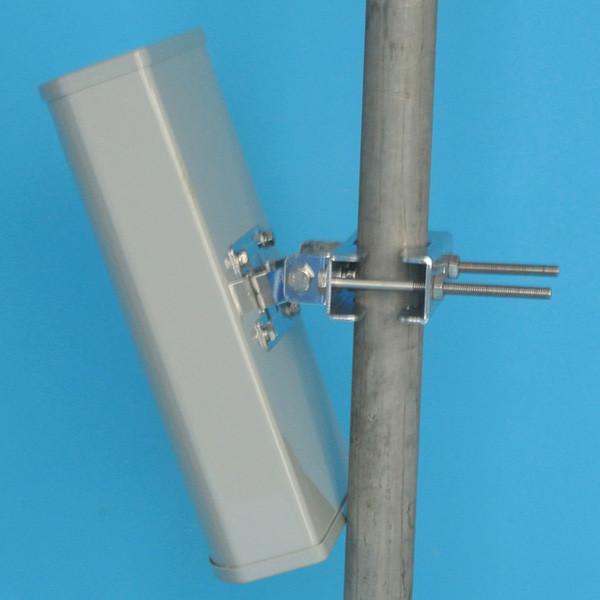

Mounting way pole-holding
Mounting hardware(mm) ￠35～￠75
Product tags

sector antenna 180 degree

,

panel sector antenna

,

high gain panel antenna
