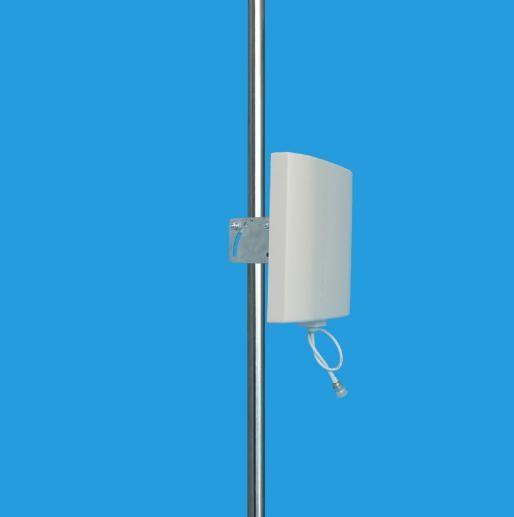

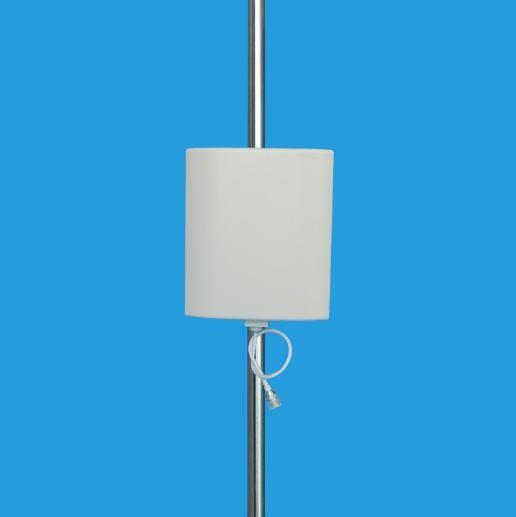

AMEISON 433MHz 6dBi Vertical Polarization Indoor or Outdoor Directional Panel Antenna
AMEISON 433MHz 6dBi Vertical Polarization Indoor or Outdoor Directional Panel Antenna
AMEISON 433MHz 6dBi Vertical Polarization Indoor or Outdoor Directional Panel Antenna
AMEISON 433MHz 6dBi Vertical Polarization Indoor or Outdoor Directional Panel Antenna
AMEISON 433MHz 6dBi Vertical Polarization Indoor or Outdoor Directional Panel Antenna
AMEISON 433MHz 6dBi Vertical Polarization Indoor or Outdoor Directional Panel Antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXW-433-6A
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
423-443
Bandwidth（MHz） :
20
Gain（dBi） :
6
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting hardware（mm） :
￠35-￠50
Description

AMEISON 433MHz 6dBi Vertical Polarization Indoor or Outdoor Directional Panel Antenna

Feature:

High gain, strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

433 MHz band communication system

AMXW-433-6A

Electrical Specifications
Frequency range(MHz) 423-443
Bandwidth(MHz) 20
Gain(dBi) 6
Half-power beam width(°) H:70 V:65
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions-mm (Height/Width/Depth) 225*195*47
Antenna weight(kg) 0.6
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color white
Waterproof Standard IP54/ IP65/ IP67
Mounting way Wall-mounted/ Pole-holding
Mounting hardware(mm) ￠35 - ￠50
