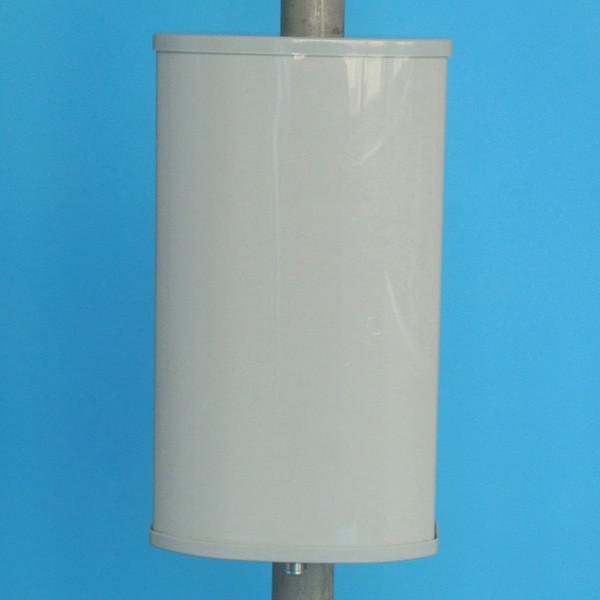

1700 - 2700 MHz 12dbi Vertical Polarization 4G LTE Outdoor Directional Panel Antenna
1700 - 2700 MHz 12dbi Vertical Polarization 4G LTE Outdoor Directional Panel Antenna
1700 - 2700 MHz 12dbi Vertical Polarization 4G LTE Outdoor Directional Panel Antenna
1700 - 2700 MHz 12dbi Vertical Polarization 4G LTE Outdoor Directional Panel Antenna
1700 - 2700 MHz 12dbi Vertical Polarization 4G LTE Outdoor Directional Panel Antenna
1700 - 2700 MHz 12dbi Vertical Polarization 4G LTE Outdoor Directional Panel Antenna
Specifications
Brand Name :
AMEISON
Model Number :
AMXP-1727V-D12L65
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
50
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency Range :
1710～2700MHz
Name :
4G LTE Panel Antenna
Polarization :
Vertical
Gain（dBi） :
12
half-power beam width（°） :
H:65 V:30
Front-to-back ratio（dB） :
≥23
Input Impedance（Ω） :
50
VSWR :
≤1.5
Maximum input power（W） :
200
Lightning protection :
DC Ground
Input connector type :
N Female
Description

1700 - 2700 MHz 12dbi Vertical Polarization 4G LTE Outdoor Directional Panel Antenna

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

DCS, PCS, 3g, WLAN, 4g, LTE, Wi-Fi system

Wireless communication and data transmission system

AMXP-1727V-D12L65

Electrical Specifications
Frequency range(MHz) 1710～2700
Polarization Vertical
Gain(dBi) 12
Half-power beam width(°) H:65 V:30
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
V.S.W.R. ≤1.5
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type N Female
Dimensions-mm (Height/Width/Depth) 310*175*80
Packing size(mm) 350*200*150
Antenna weight (kg) 2.5
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～15
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Waterproof Standard IP67

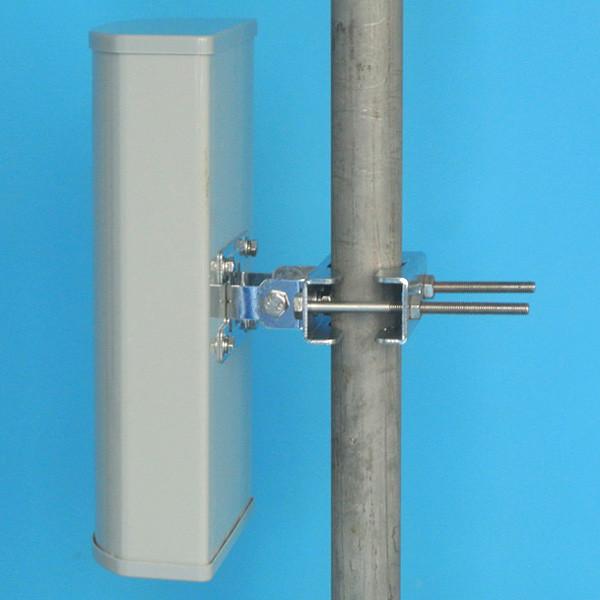

Mounting way pole-holding
Mounting pole hardware(mm) ￠35 ～ ￠75
