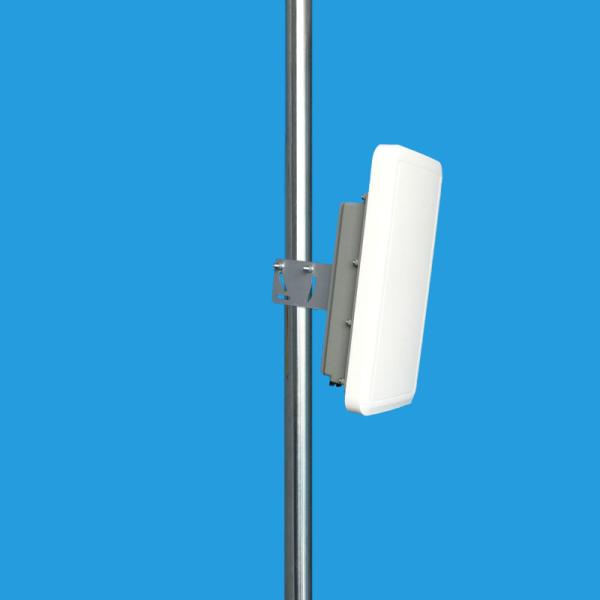

AMEISON 2400-2500MHz WIFI Dual polarized Directional MIMO panel antenna 15dBi with Enclosure
AMEISON 2400-2500MHz WIFI Dual polarized Directional MIMO panel antenna 15dBi with Enclosure
AMEISON 2400-2500MHz WIFI Dual polarized Directional MIMO panel antenna 15dBi with Enclosure
AMEISON 2400-2500MHz WIFI Dual polarized Directional MIMO panel antenna 15dBi with Enclosure
Specifications
Brand Name :
AMEISON
Model Number :
AMXW-2425VH-D15L60Q
Certification :
ISO 9001: 2008
Place of Origin :
China
MOQ :
100
Price :
EXW Price
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
Delivery Time :
10-20 working days
Packaging Details :
PP bag /inner box/master carton or customized
Frequency range（MHz） :
2400～2500
Polarization :
Vertical and Horizontal
Gain（dBi） :
15
Lightning protection :
DC Ground
VSWR :
≤1.5
Maximum input power（W） :
100
Input connector :
2*SMA Female
Radome material :
ABS
Description

AMEISON 2400-2500MHz WIFI Dual polarized Directional MIMO panel antenna 15dBi with Enclosure

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application

2.4 GHz WLAN system

2.4 GHz ISM band

Public wireless hot spot coverage

Wi-Fi system

Antenna Specifications

Electrical Specifications
Frequency range(MHz) 2400～2500
Polarization Vertical and Horizontal
Gain(dBi) 15
Half-power beam width(°) H:60 V:14
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Isolation between ports(dB) ≥25
Cross-polar ratio(dB) ≥15@0º ≥10@+/-60º
Sidelobe suppression for first sidelobe above horizon(dB) 15
Maximum input power(W) 100
Lightning protection DC Ground
Mechanical Specifications
Cavity internal dimension(mm) 271*171*47
Input connector 2*SMA Female
Dimensions-mm (Height/Width/Depth) 410*207*36
Antenna weight (kg) 0.52
Radome material ABS
Radome color White
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠30～￠50
