AMEISON 2400-2500MHz Outdoor Indoor 12dBi Flat Panel Antenna 2.4GHz Directional WIFI Antenna
AMEISON 2400-2500MHz Outdoor Indoor 12dBi Flat Panel Antenna 2.4GHz Directional WIFI Antenna
AMEISON 2400-2500MHz Outdoor Indoor 12dBi Flat Panel Antenna 2.4GHz Directional WIFI Antenna
AMEISON 2400-2500MHz Outdoor Indoor 12dBi Flat Panel Antenna 2.4GHz Directional WIFI Antenna
AMEISON 2400-2500MHz Outdoor Indoor 12dBi Flat Panel Antenna 2.4GHz Directional WIFI Antenna
AMEISON 2400-2500MHz Outdoor Indoor 12dBi Flat Panel Antenna 2.4GHz Directional WIFI Antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXW-2400-12
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
2400-2483
Band width（MHz） :
83
Gain（dBi） :
12
Half-power beam width（°） :
H：50 V：30
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
SMA Male or Requested
Description

AMEISON 2400-2500MHz Outdoor Indoor 12dBi Flat Panel Antenna 2.4GHz Directional WIFI Antenna

Feature:

High gain

strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

2.4GHZ WLAN system

2.4GHZ ISM frequency band

WIFI system

AMXW-2400-12

Electrical Specifications
Frequency range(MHz) 2400-2483
Polarization Vertical
Gain(dBi) 12
Horizontal beamwidth(°) 50
Vertical beamwidth(°) 30
Front-to-back ratio(dB) ≥25
Input Impedance(Ω) 50
VSWR ≤1.5
Maximum input power(W) 50
Lightning protection DC Ground
Mechanical Specifications
Input connector type SMA Male
Cable length(cm) 30
Dimensions-mm (Height/Width/Depth) 198*98*25
Antenna weight(kg) 0.4
Radome material ABS
Radome color white
Mechanical tilt(°) 0～10
Operating Temperature(°c) -40～60
Rated Wind Velocity(m/s) 60

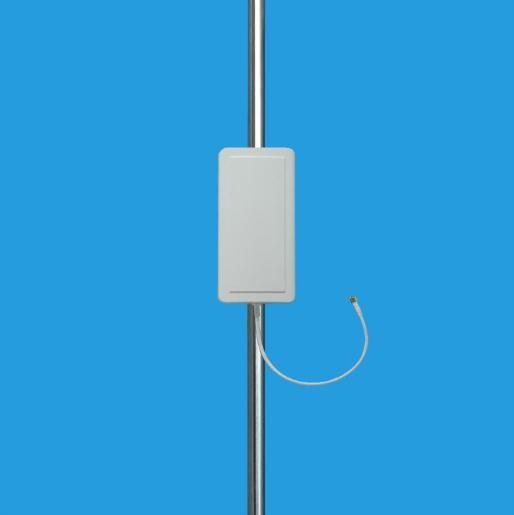

Mounting way pole-holding
Mounting hardware(mm) ￠35-￠50
