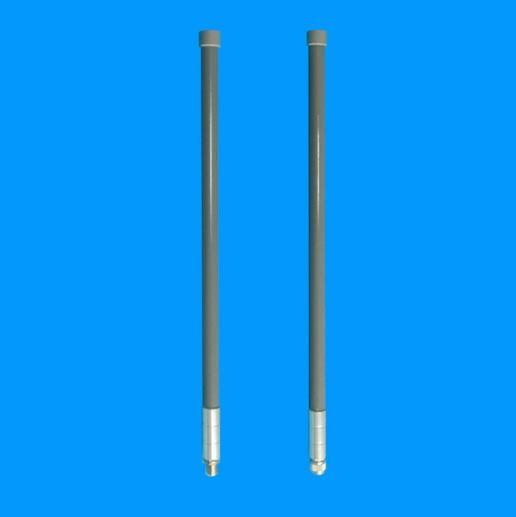

AMEISON 2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna
AMEISON 2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna
AMEISON 2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna
AMEISON 2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXF-2400-6
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or customized
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
2400～2483
Gain（dBi） :
6
VSWR :
≤1.5
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Female or Requested
Mounting way :
Pole-holding
Description

AMEISON 2400-2483MHz 6dBi Omnidirectional Fiberglass Antenna WIFI 2.4ghz antenna

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

2.4G/WIFI/WLAN system

Point-to-multipoint system

AMXF-2400-6

Electrical Specifications
Frequency range(MHz) 2400～2483
Bandwidth(MHz) 83
Gain(dBi) 6
Half-power beam width(°) H:360 V:22
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ18*450
Antenna weight(kg) 0.27
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
