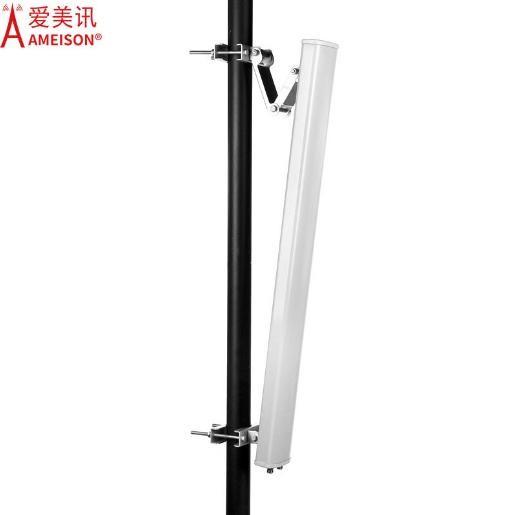

2300-2700MHz 16dBi 120 degree Vertical Polarization 4G LTE Outdoor Directional Panel Antenna
2300-2700MHz 16dBi 120 degree Vertical Polarization 4G LTE Outdoor Directional Panel Antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXP-2327V-D16L120
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
bubble PP bag or EPE/inner box/master carton(safe export packaging) or others
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
10
Frequency range（MHz） :
2300～2700
Polarization :
Vertical
Gain（dBi） :
16
VSWR :
≤1.5
Maximum input power（W） :
200
Lightning protection :
DC Ground
Input connector type :
N Female
Mounting hardware（mm） :
￠35～￠75
Description

2300-2700MHz 16dBi 120 degree Vertical Polarization 4G LTE Outdoor Directional Panel Antenna

Feature:

High gain

Full day working

Optimized dimension

Vertical or horizontal

Application:

2.3/2.7 GHz WLAN system

2.3/2.7 GHz ISM band

public wireless hot spot coverage

Wi-Fi system

AMXP-2327V-D16L120

Electrical Specifications
Frequency range(MHz) 2300～2700
Polarization Vertical
Gain(dBi) 16
Half-power beam width(°) H:120 V:7
Front-to-back ratio(dB) ≥18
Input Impedance(Ω) 50
VSWR ≤1.5
Sidelobe suppression for first sidelobe above horizon 15 dB
Maximum input power(W) 200
Lightning protection DC Ground
Mechanical Specifications
Input connector type N Female
Dimensions-mm (Height/Width/Depth) 1000*114*54
Packing size(mm) 1080*155*145
Antenna weight (kg) 6
Radome material UPVC
Radome color Gray
Mechanical tilt(°) 0～10
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Mounting hardware(mm) ￠35～￠90
