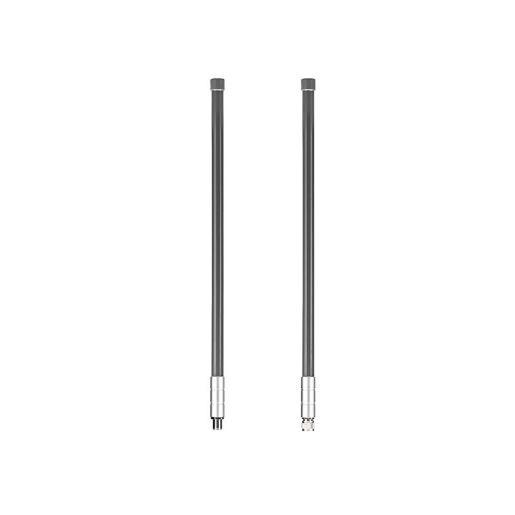

2300-2700MHz 6dBi Omnidirectional Fiberglass 4GHz lte antenna
2300-2700MHz 6dBi Omnidirectional Fiberglass 4GHz lte antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXF-2327-6
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /master carton or others
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
100
Frequency range（MHz） :
2300～2700
Bandwidth（MHz） :
100
Gain（dBi） :
6
VSWR :
≤2.0
Polarization :
Vertical
Lightning protection :
DC Ground
Input connector type :
N Type
Mounting way :
Pole-holding
Description

2300-2700MHz 6dBi Omnidirectional Fiberglass 4GHz lte antenna

Feature:

Exquisite appearance

Good impact resistance,waterproofing and anticorrosion ability

Full day working

Optimized dimension

High gain,low standing wave,strong anti-interference ability

Application:

2.4G/WIFI/WLAN/LTE system

Point-to-multipoint system

AMXF-2327-6

Electrical Specifications
Frequency range(MHz) 2300～2690
Bandwidth(MHz) 390
Gain(dBi) 6
Half-power beam width(°) H:360 V:22
VSWR ≤ 2.0
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 100
Lightning protection DC Ground
Input connector type N Female or Requested
Mechanical Specifications
Dimensions (mm) Φ20*450
Antenna weight(kg) 0.27
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome color Gray
Mounting way Pole-holding
Mounting hardware(mm) ￠35-￠50
