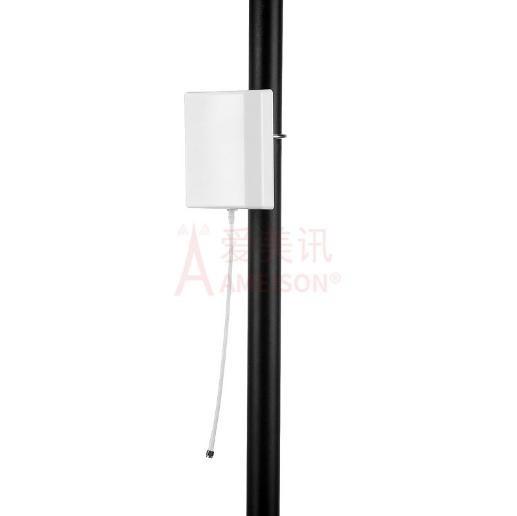

2.3- 2.7GHz Outdoor or Indoor 10dBi Vertical Polarization 4G LTE WIFI Flat Panel Antenna
2.3- 2.7GHz Outdoor or Indoor 10dBi Vertical Polarization 4G LTE WIFI Flat Panel Antenna
2.3- 2.7GHz Outdoor or Indoor 10dBi Vertical Polarization 4G LTE WIFI Flat Panel Antenna
2.3- 2.7GHz Outdoor or Indoor 10dBi Vertical Polarization 4G LTE WIFI Flat Panel Antenna
2.3- 2.7GHz Outdoor or Indoor 10dBi Vertical Polarization 4G LTE WIFI Flat Panel Antenna
2.3- 2.7GHz Outdoor or Indoor 10dBi Vertical Polarization 4G LTE WIFI Flat Panel Antenna
Specifications
Place of Origin :
China
Brand Name :
AMEISON
Model Number :
AMXW-2327-10B
Certification :
ISO 9001: 2008
Price :
EXW Price
Packaging Details :
PP bag /inner box/master carton or others
Delivery Time :
10-20 working days
Payment Terms :
TT,Paypal,Western Union
Supply Ability :
50,000 Pieces per Month
MOQ :
200
Frequency range（MHz） :
2300-2700
Bandwidth（MHz） :
400
Gain（dBi） :
10
VSWR :
≤1.5
Polarization :
Vertical
Maximum input power（W） :
50
Lightning protection :
DC Ground
Input connector type :
SMA male or Requested
Mounting way :
wall-hanging or pole-holding
Description

2.3- 2.7GHz Outdoor or Indoor 10dBi Vertical Polarization 4G LTE WIFI Flat Panel Antenna

Feature:

High gain,strong anti-interference ability

Good defense system

Full day working

Exquisite appearance

Optimized dimension

Application:

2300-2700MHZ 4G LTE WIFI WLAN system

2.4GHZ ISM frequency band

AMXW-2327-10B

Electrical Specifications
Frequency range(MHz) 2300-2700
Bandwidth(MHz) 400
Gain(dBi) 10
Half-power beam width(°) H:50 V:50
VSWR ≤1.5
Input Impedance(Ω) 50
Polarization Vertical
Maximum input power(W) 50
Lightning protection DC Ground
Input connector type SMA male or Requested
Mechanical Specifications
Dimensions-mm (Height/Width/Depth) 140*120*40
Antenna weight(kg) 0.29
Operating temperature(°c) -40～60
Rated Wind Velocity(m/s) 60
Radome material ABS
Radome color white
Mounting way wall-hanging or pole-holding
Mounting hardware(mm) ￠35～￠50
