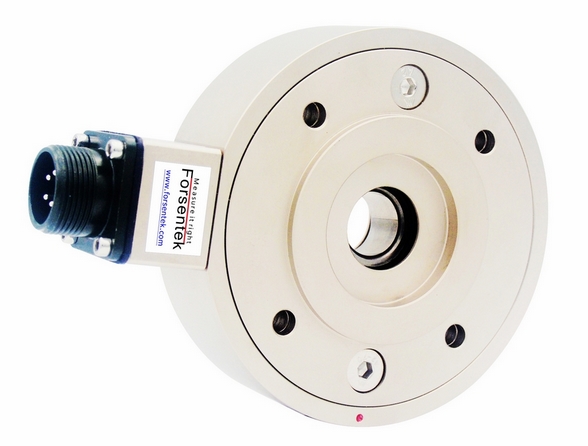

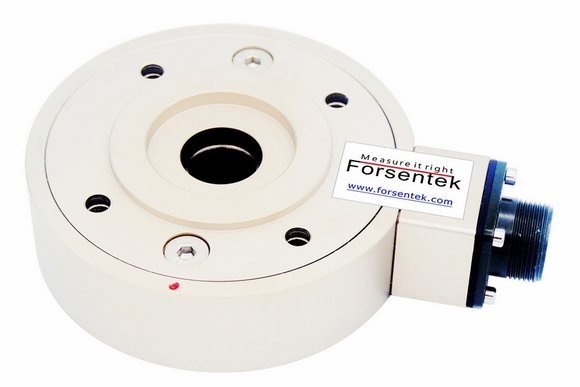

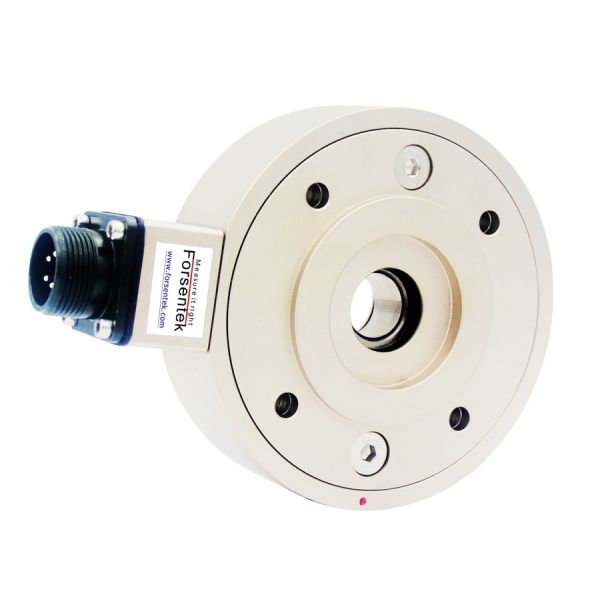

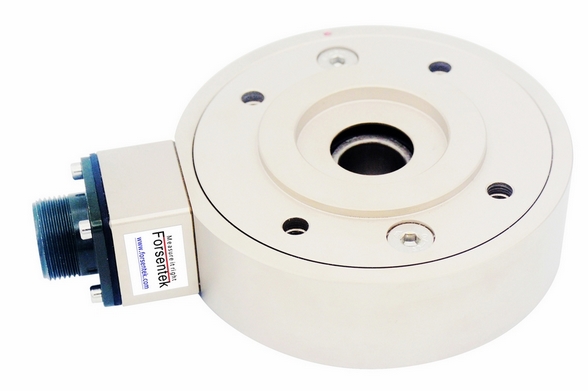

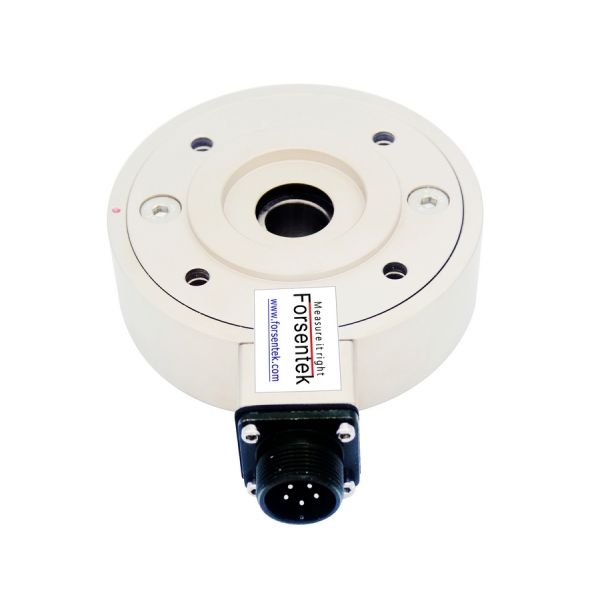

Flange Mount Shaft-through Load Cell 0-1000kg Web Tension Sensor

The FZTK series shaft-through load cell is engineered for high-accuracy force monitoring in continuous industrial systems where stable tension control is critical. Designed as a flange mount load cell, it features a through-shaft architecture that allows direct integration onto rotating shafts, delivering a compact footprint while preserving structural stiffness and reducing mechanical deformation under load. Built with strain gauge sensing elements arranged in a full Wheatstone bridge, the sensor ensures precise signal output, strong temperature stability, and reliable performance for real-time web tension sensor applications. Its measurement range supports low to high loads, making it adaptable to diverse machinery configurations requiring consistent force feedback.

As a roll load cell solution, the FZTK is widely used in roller-based machinery equipped with pre-mounted bearings, allowing quick installation via a four-hole fixing pattern. This makes it particularly effective in compact equipment layouts where space optimization is essential without compromising measurement reliability. The sensor is commonly deployed in demanding web handling environments such as film production, paper converting, textile processing, printing, coating, and packaging systems. In these applications, precise tension regulation is essential to maintain material integrity and ensure consistent output quality. Acting as a high-performance web tension sensor, it delivers continuous feedback that supports automated control systems, helping operators minimize downtime, reduce scrap rates, and improve overall production efficiency across high-speed industrial lines.
