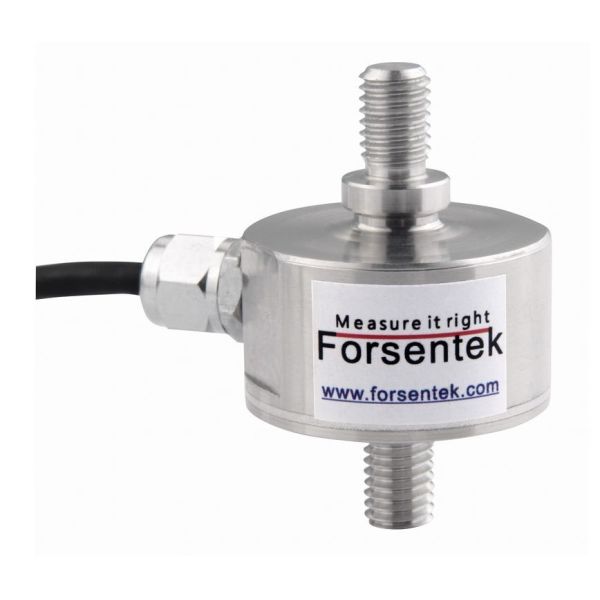

Tension compression load cell 1KN 2KN 3KN 5KN
Tension compression load cell 1KN 2KN 3KN 5KN
Tension compression load cell 1KN 2KN 3KN 5KN
Tension compression load cell 1KN 2KN 3KN 5KN
Tension compression load cell 1KN 2KN 3KN 5KN
Tension compression load cell 1KN 2KN 3KN 5KN
Specifications
Brand Name :
Forsentek
Model Number :
FL34
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T,Western Union or Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3~25 working days
Packaging Details :
Carton
Usage :
Tension force measurement
Theory :
Strain gauge load cell
Output :
Analog Sensor
Capacity :
1KN 2KN 3KN 5KN
Description

Tension compression load cell 1KN 2KN 3KN 5KN
Tension compression load cell 1KN 2KN 3KN 5KN
Features

  • CE certified
  • Stainless steel construction,in-line structure
  • M8 threaded bolts on both sides,easy to install
  • Tension compression force measurement

Applications

  • Axial force measurement
  • Air cylinder pull push force measurement
  • Welding force control
  • Testing machine
  • Assembly line

Specifications

Capacity1KN 2KN 3KN 5KN
Rated output1.5mV/V
Excitation5-15V
Zero balance±2% R.O.
Nonlinearity±0.3% R.O.
Hysteresis±0.3% R.O.
Nonrepeatability±0.1% R.O.
Creep(30min)±0.1% R.O.
Safe overload150% F.S.
Ultimate overload200% F.S.
Compensated temperature-10...+40oC
Operating temperature-20...+60oC
Temperature shift zero±0.01% R.O./oC
Temperature shift span±0.01% R.O./oC
Input resistance385±30 ohms
Output resistance350±5 ohms
Insulation resistance>5000M ohms
Ingress protectionIP66
Material of elementStainless steel
CableØ4*2800mm
Wiring codeRed--E+ Black--E- Green--S+ White--S-


Tension compression load cell with CE certificate

Tension compression load cell 1KN 2KN 3KN 5KN
Tension compression load cell FL34 is produced based on strain gauge technology with -20~20mV analog output.-5~5V/0-10V/4-20mA output is achievable through external signal conditioner.
Tension compression load cell 1KN 2KN 3KN 5KN
Dimensions
Tension compression load cell 1KN 2KN 3KN 5KN

Tension compression load cell 1KN 2KN 3KN 5KN
