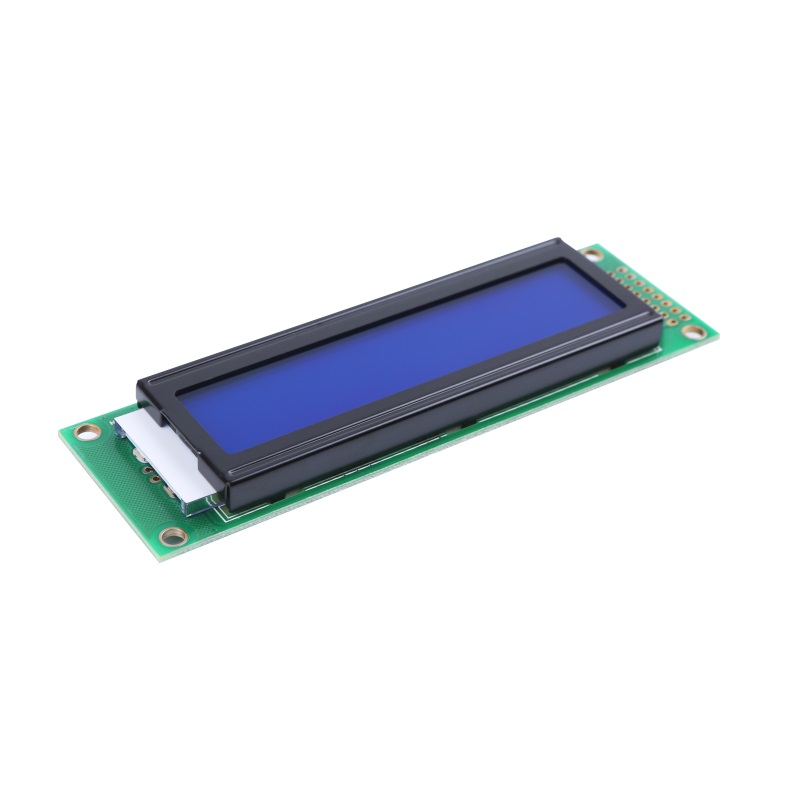

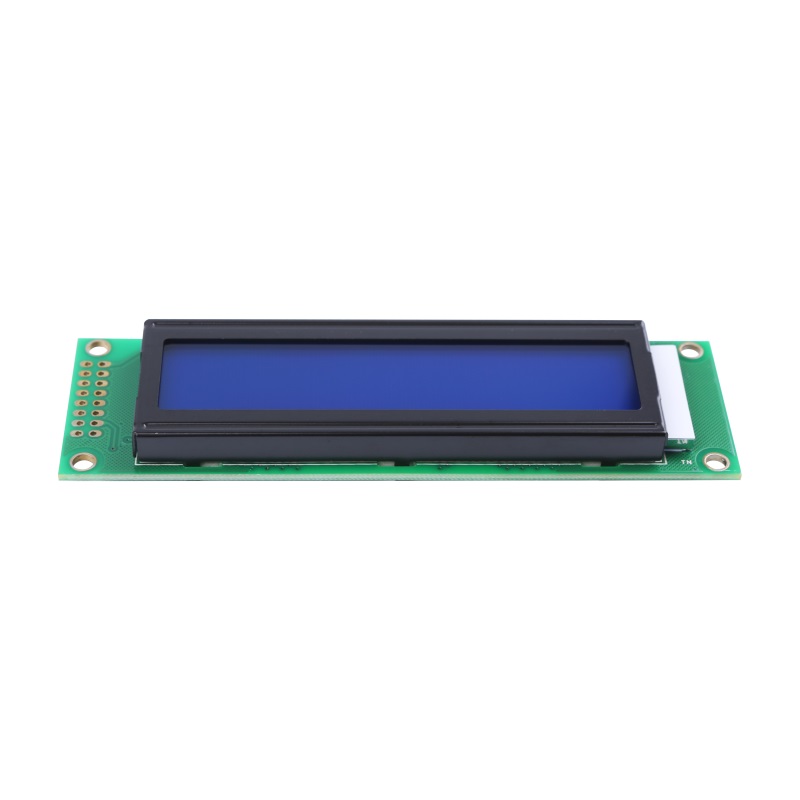

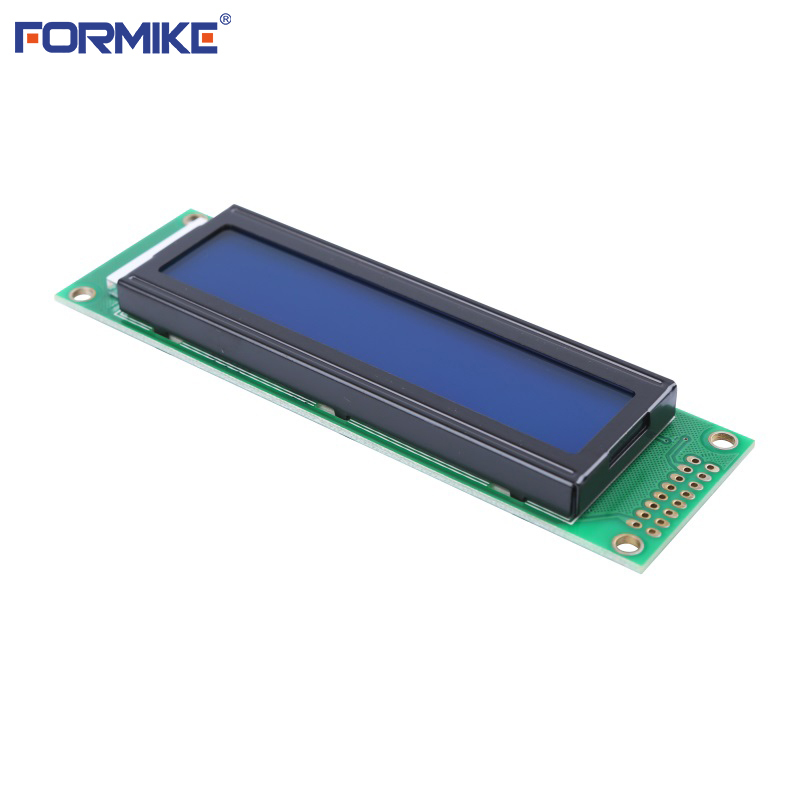

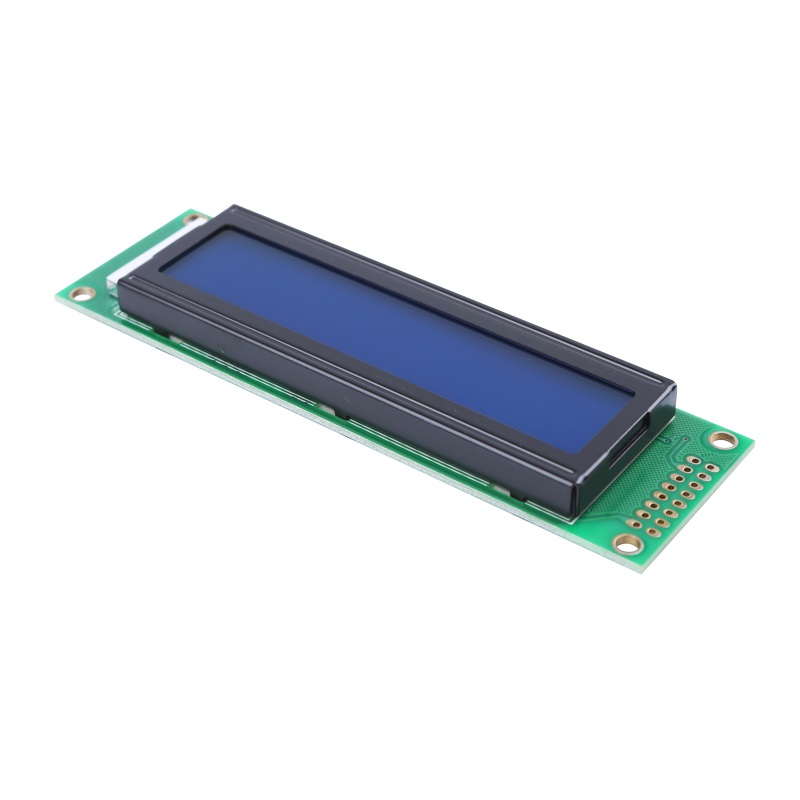

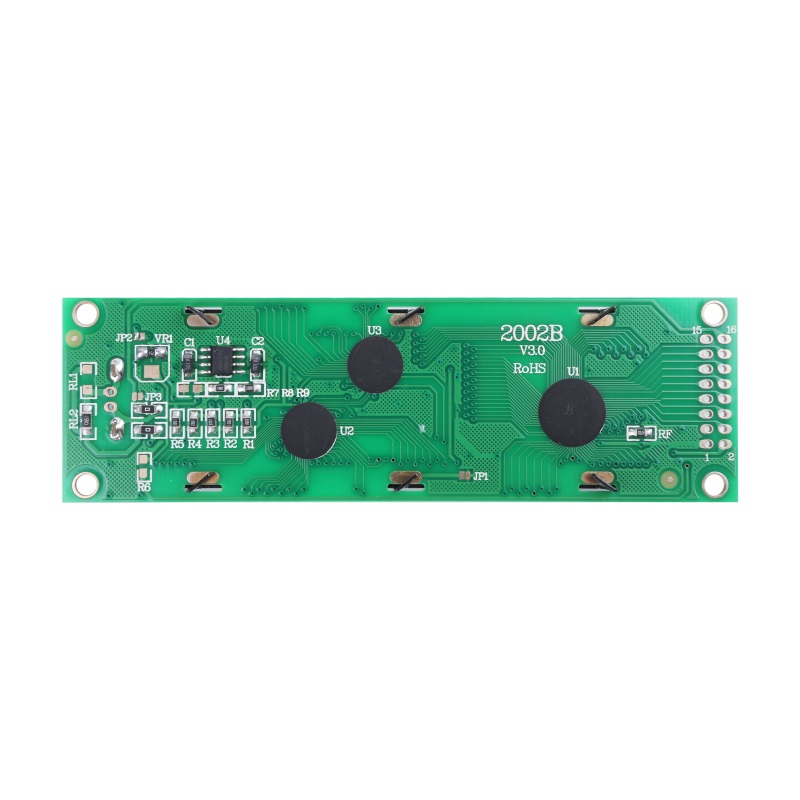

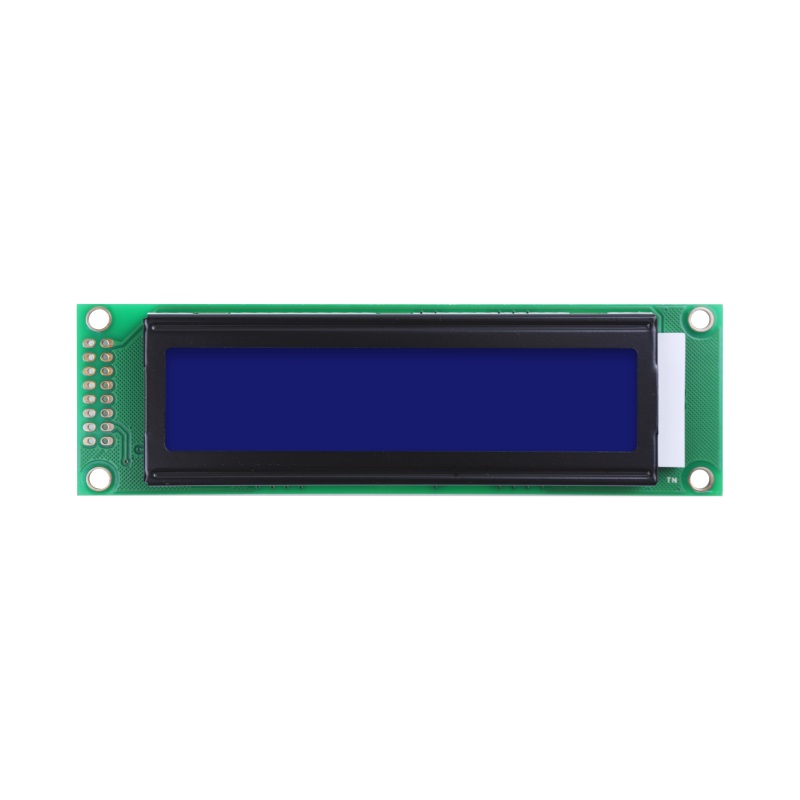

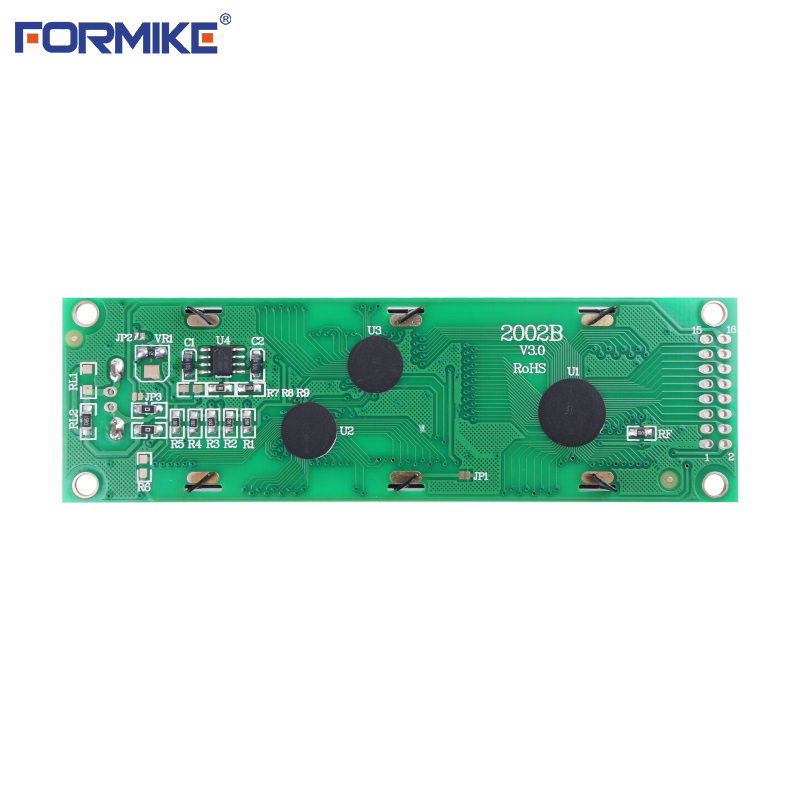

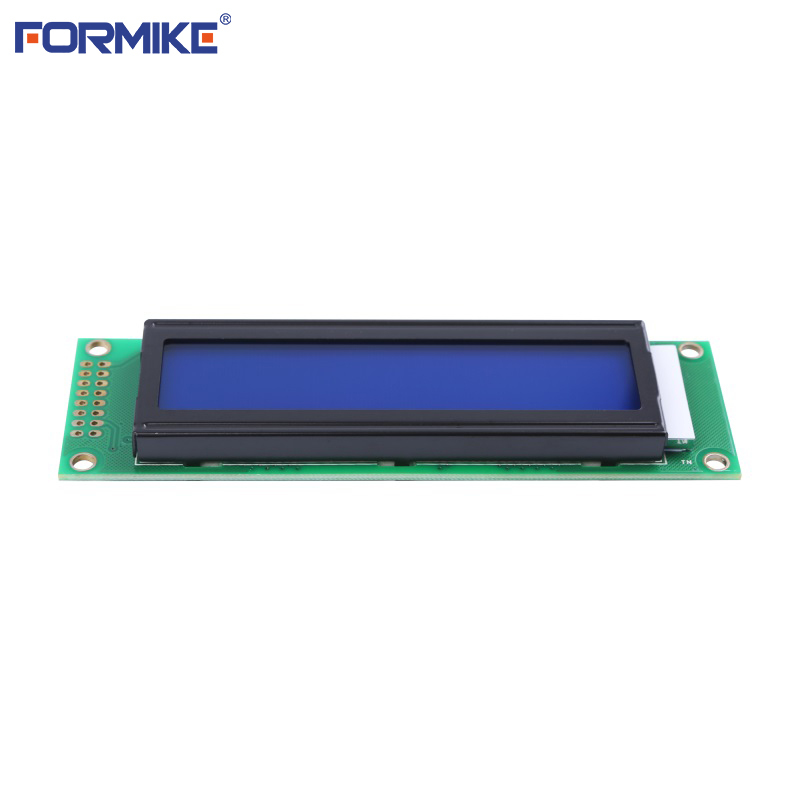

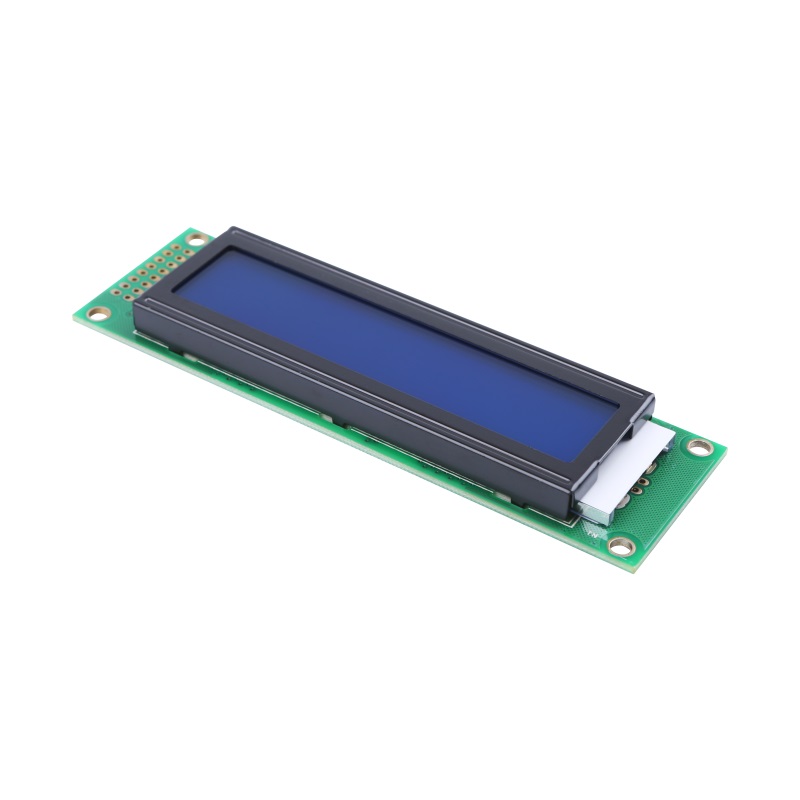

LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray
Specifications
Operating Voltage :
3.3V / 5V
Viewing Angle :
6 O'clock
Place of Origin :
China
Product Name :
20x2 LCD Module 2x20 Display 20x2 LCD Screen COB
Operating Temperature :
-20°C to 70°C
Display Mode :
STN
Packaging Details :
Tray + Inner Box + Carton
Brand Name :
Formike
Backlight Color :
Usually Y-G or Blue or Gray
Display format :
20character*2 line
Controller :
ST7066U or AIP31066
Model Number :
WC2002B1
Interface :
16Pin, 4-bit or 8-bit 6800 MPU
Display Type :
Character Display Module
Payment Terms :
T/T,L/C,Credit card,Cash
Supply Ability :
5000000000 pieces/year
Backlight :
LED
MOQ :
1 piece
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
116.0mm * 36.0mm * 12.8mm
Description

20x2 LCD Module 2x20 Display 20x2 LCD Screen COB

LED I2c Display LCD 20x2 Module COB Screen 16Pin Blue Gray

Product Specification
LCD Name 20x2 LCD Module 2x20 Display 20x2 LCD Screen COB
Display Format 20character*2 line
Module Size 116.0mm×36.0mm×12.8mm
View Area 82.6mm×18.4mm
Character Size 3.31mm×6.76mm
Character Pitch 3.82mm×7.14mm
IC AIP31066 or Eqv (Defualt English / Japan Font)
Interface 16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method 1/16 Duty, 1/5 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WC2002B1SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WC2002B1SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WC2002B1SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WC2002B1SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WC2002B1SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WC2002B1SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
