Specifications
Supply Ability :
5000000000 pieces/year
Operating Voltage :
5V
Operating Temperature :
-20°C to 70°C
Place of Origin :
China
Packaging Details :
Tray + Inner Box + Carton
Product Name :
20x2 LCD Display HD44780 LCD Module 2002 LCM with Character STN Blue Type
MOQ :
1 piece
Backlight :
LED
Model Number :
WC2002A5SGW6B
Interface :
16Pin
Brand Name :
Formike
Color :
White display dot on blue background with white backlight
Controller :
HD44780
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Type :
Character LCD Display Module
Payment Terms :
T/T,L/C,Credit card,Cash
Display format :
20character*2 line
Viewing Angle :
6 O'clock
Dimensions :
116.0mm * 37.0mm * 14.6mm
Display Mode :
STN
Description

20x2 LCD Display HD44780 LCD Module 2002 LCM with Character STN Blue Type

LCD Name 20x2 LCD Display HD44780 LCD Module 2002 LCM with Character STN Blue Type

Display Format

20character*2 line

Display Mode

STN(BLUE) , Negative ,Transmissive

LCD Color

Backlight : White

IC

HD44780 English / Japan Font

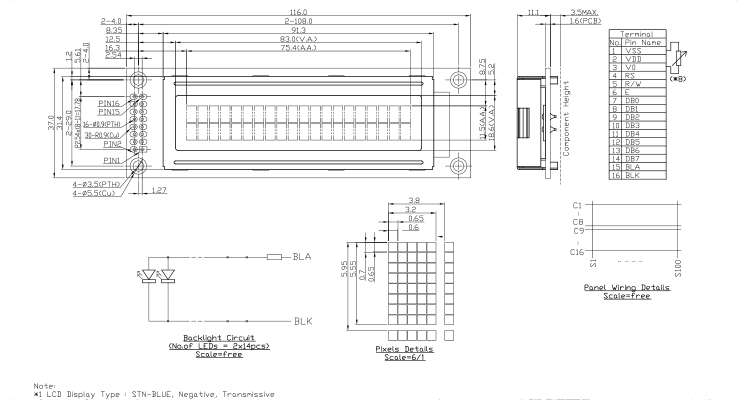

Outline Dimension

116.0mm*37.0mm*14.6mm(MAX) mm

Viewing Area

83.0mm*18.6mm

Viewing Direction

6 O’clock

Built-in controller

HD44780(or equivalent)

Backlight

WHITE

Driving Method

1/16 Duty, 1/5 Bias

Operating Temp.

 -20℃~+70℃

Storage Temp.

-30℃~+80℃
