Specifications
Viewing Angle :
6 O'clock
MOQ :
1 piece
Packaging Details :
Tray + Inner Box + Carton
Display Format :
122*32 Dots
Operating Temperature :
-20°C to 70°C
Model Number :
WG1203B1
Controller :
SBN1661G
Display Mode :
STN
Product Name :
STN LCD Display 122x32 Graphic LCD Liquid Crystal Module With 18 Pin 8-BIT 6800 8080 MPU Interface
Supply Ability :
5000000000 pieces/year
Display Type :
Graphic LCD Module
Interface :
18Pin, 8-bit 6800/8080 MPU
Brand Name :
Formike
Backlight Color :
Usually Y-G or Blue or Gray
Payment Terms :
T/T,L/C,Credit card,Cash
Operating Voltage :
3.3V / 5V
Backlight :
LED
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
76.4mm * 29.1mm * 8.7mm
Place of Origin :
China

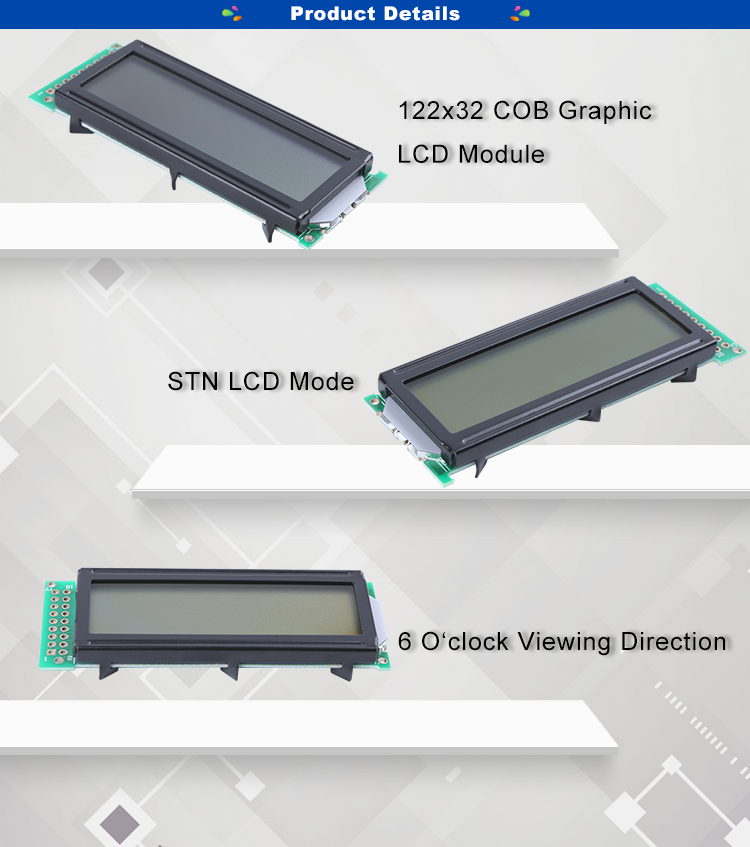

Description

STN LCD Display 122x32 Graphic LCD Liquid Crystal Module With 18 Pin 8-BIT 6800 8080 MPU Interface

STN Display 122x32 Graphic LCD Liquid Crystal Module With 18 Pin 8 BIT 6800 8080 MPU Interface

Product Specification
LCD Name STN LCD Display 122x32 Graphic LCD Liquid Crystal Module With 18 Pin 8-BIT 6800 8080 MPU Interface
Display Format

122*32 Dots
Module Size 76.4mm×29.1mm×8.7mm
View Area 60.0mm×18.0mm
Active Area 53.64mmx15.64mm
Dot Size 0.4mm×0.45mm
Dot Pitch 0.44mm×0.49mm
IC SBN1661G
Interface 18 Pin, 8-bit 6800 / 8080 MPU interface enabled
Driving Method 1/32 Duty, 1/6 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃

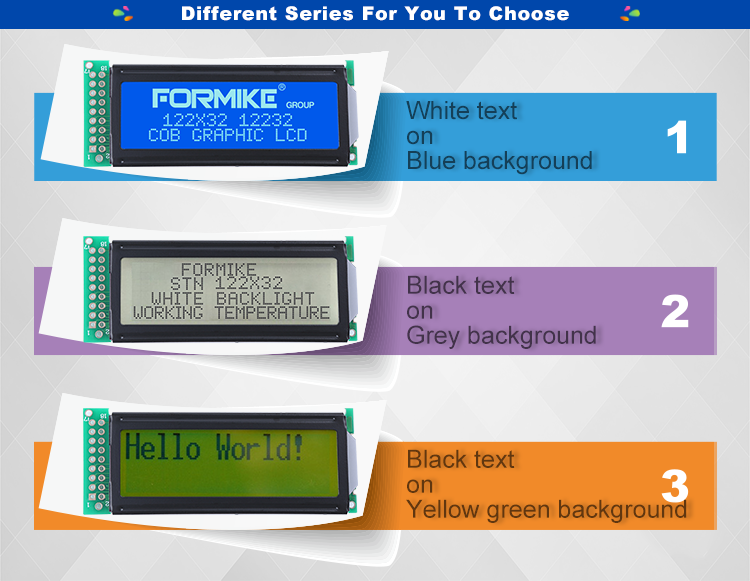

Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG1203B1SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WG1203B1SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WG1203B1SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WG1203B1SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WG1203B1SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WG1203B1SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V

STN Display 122x32 Graphic LCD Liquid Crystal Module With 18 Pin 8 BIT 6800 8080 MPU Interface

STN Display 122x32 Graphic LCD Liquid Crystal Module With 18 Pin 8 BIT 6800 8080 MPU Interface
