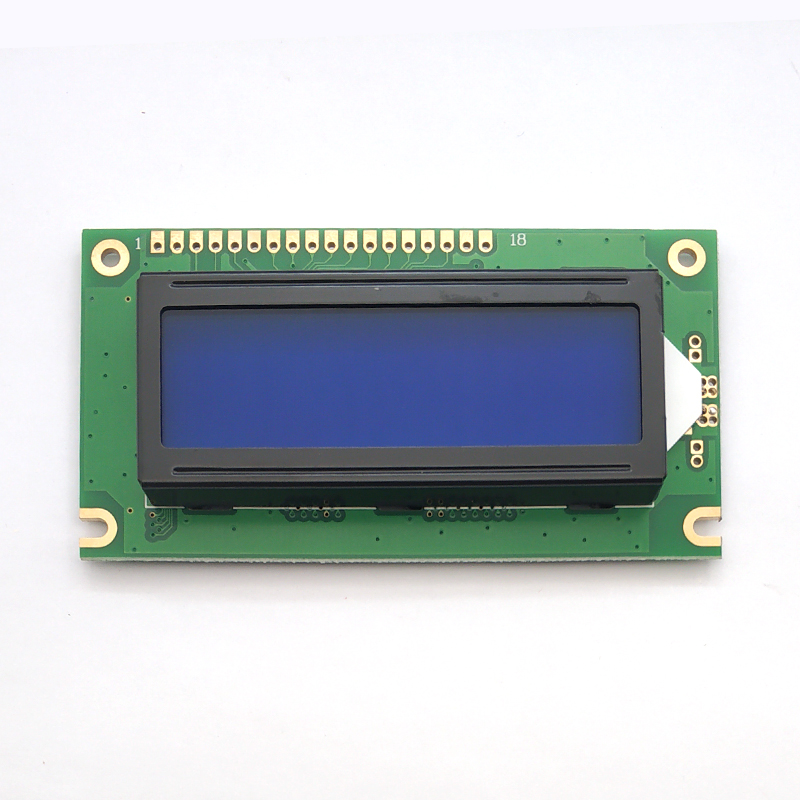

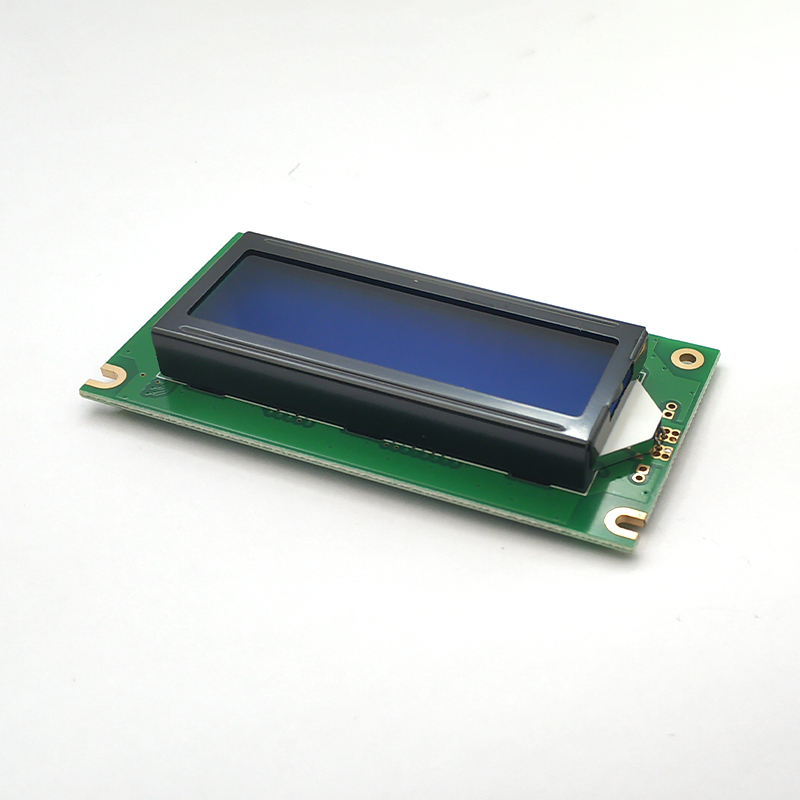

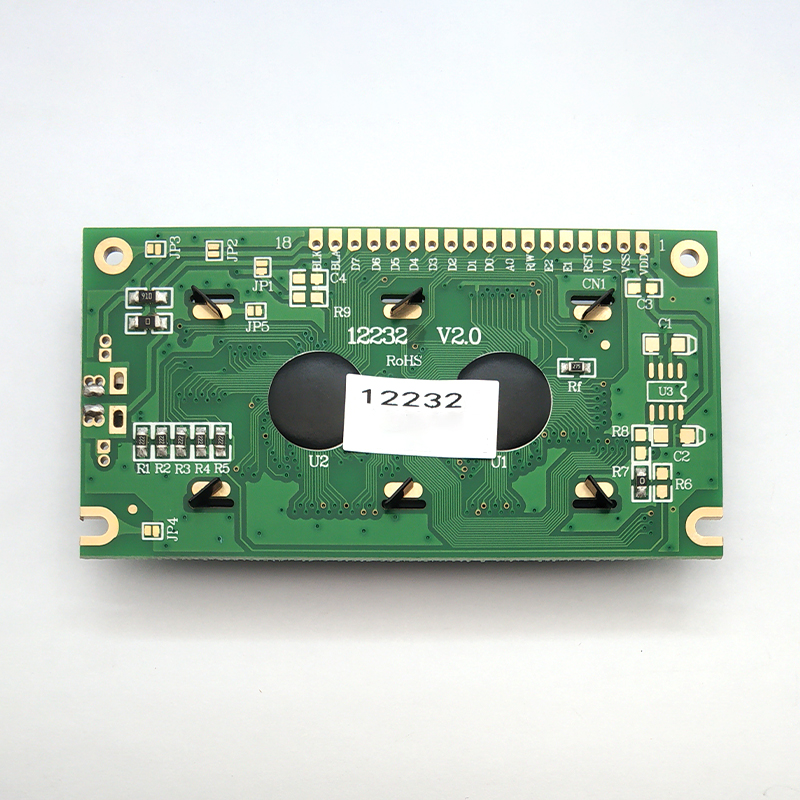

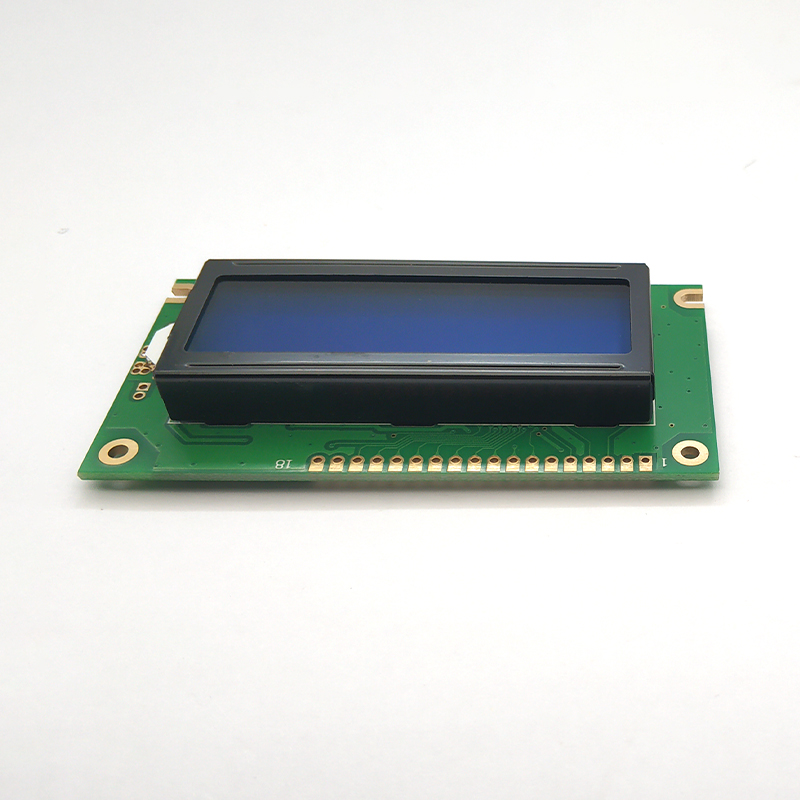

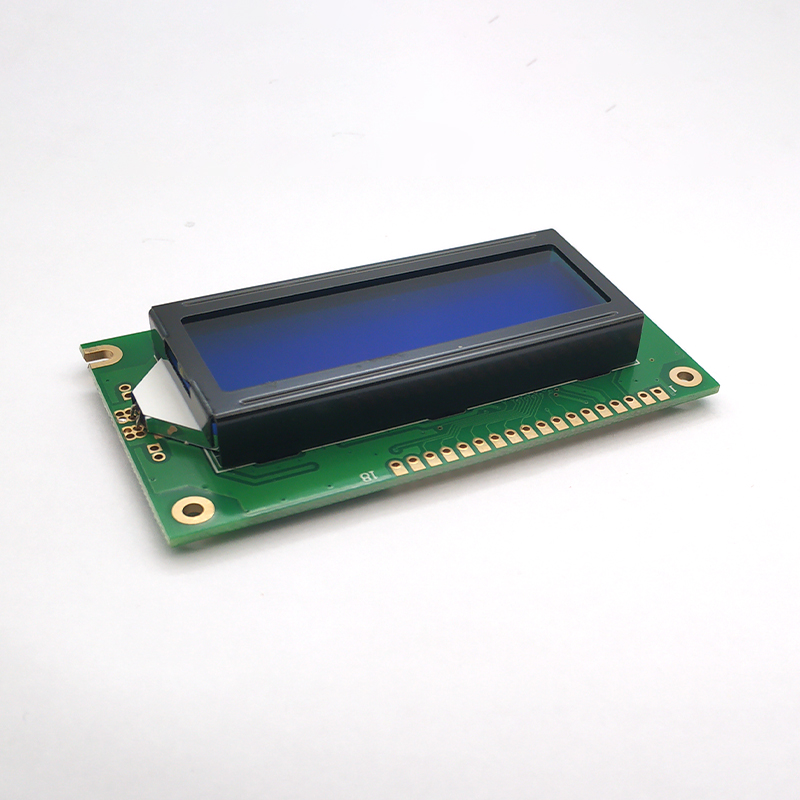

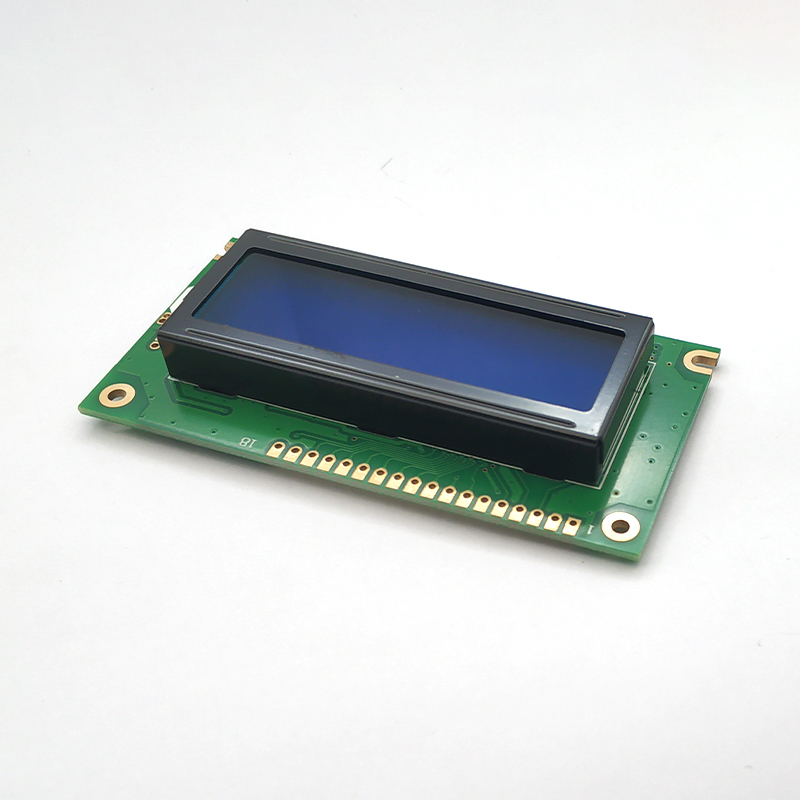

Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC
Specifications
Payment Terms :
T/T,L/C,Credit card,Cash
Operating Voltage :
3.3V / 5V
Operating Temperature :
-20°C to 70°C
Product Name :
Monochrome LCD Graphic Displays 122x32 LCD Module With SBN1661G Driver IC
Brand Name :
Formike
Model Number :
WG1203B0
Backlight :
LED
Supply Ability :
5000000000 pieces/year
Interface :
18 Pin, 8-bit 6800/8080 MPU
Backlight Color :
Usually Y-G or Blue or Gray
Controller :
SBN1661G
Display Mode :
STN
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Format :
122x32 Dots
Viewing Angle :
6 O'clock
Dimensions :
84.0mm * 44.0mm * 12.8mm
Display Type :
Graphic LCD Display
MOQ :
1 piece
Packaging Details :
Tray + Inner Box + Carton
Place of Origin :
China
Description

Monochrome LCD Graphic Displays 122x32 LCD Module With SBN1661G Driver IC

Monochrome 122x32 LCD Graphic Displays Module With SBN1661G Driver IC

Product Specification
LCD Name Monochrome LCD Graphic Displays 122x32 LCD Module With SBN1661G Driver IC
Display Format

122*32 Dots
Module Size 84.0mm×44.0mm×12.8mm
View Area 60.0mm×18.0mm
Active Area 53.64mmx15.64mm
Dot Size 0.40mm×0.45mm
Dot Pitch 0.44mm×0.49mm
IC SBN1661G
Interface 18 Pin, 8-bit 6800 / 8080 MPU interface enabled
Driving Method 1/32 Duty, 1/6 Bias
Viewing Direction 6 O’clock
Operating Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Different series type LCD mode for you to choose
No. Part Number LCD Type Backlight Color Font Color Background Color Voltage
1 WG1203B0SBY6B-A1 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 5V
2 WG1203B0SBY6B-A2 STN Y-G Positive Yellow Green Color Black Color Yellow Green Color 3.3V
3 WG1203B0SGW6B-A1 STN Negative Blue White Color White Color Blue Color 5V
4 WG1203B0SGW6B-A2 STN Negative Blue White Color White Color Blue Color 3.3V
5 WG1203B0SKW6B-A1 STN GREY Positive White Color Black Color Grey Color 5V
6 WG1203B0SKW6B-A2 STN GREY Positive White Color Black Color Grey Color 3.3V
