Specifications
Operating Voltage :
5V
Model Number :
WG2406Y2SBY6B
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Viewing Angle :
6 O'clock
Display Type :
Graphic LCD
Controller :
UCi6963 +UC0086
Operating Temperature :
-20°C to 70°C
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Product Name :
240x64 Graphic LCD Display STN LCD Driver IC Uci6963 Uc0086 24064 LCD Screen
Place of Origin :
China
Dimensions :
180.0mm * 62.0mm * 11.0mm
Display Mode :
STN
LCD Type :
Transflective Positive
Payment Terms :
T/T,L/C,Credit card,Cash
Interface :
22 Pin
Backlight Color :
Black display dot on yellow-green background with yellow-green backlight
Display Format :
240x64 Dots
Brand Name :
Formike
MOQ :
1 piece
Backlight :
LED
Description

240x64 Graphic LCD Display STN LCD Driver IC Uci6963 Uc0086 24064 LCD Screen

LCD Name

240x64 Graphic LCD Display STN LCD Driver IC Uci6963 Uc0086 24064 LCD Screen

Display Format

240*64

Display Mode

STN,Transflective, positive

Outline Dimension

180*62*11.0 mm

Active Area

127.16*33.88 mm

Viewing Direction

6 O'clock

DUTY/BIAS

1/64, 1/9

Type

COB

Driver IC

UCi6963 +UC0086

Working Temp.

-20℃~+70℃

Storage Temp.

-30℃~+80℃

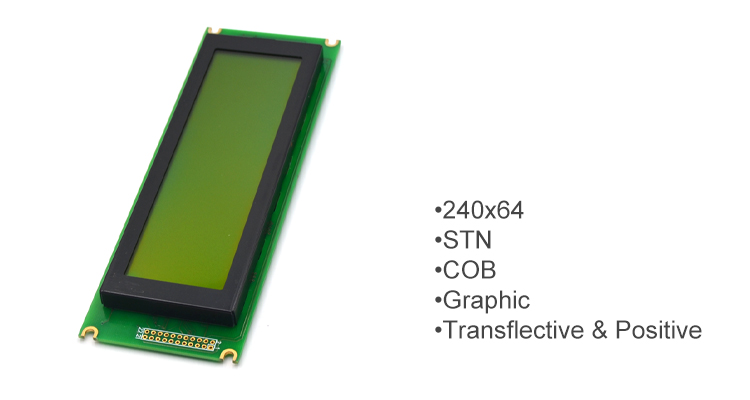

*WG2406Y2SBY6B is a Monochrome color COB type STN Positive,Transmissive LCD.

* It is composed of a monochrome LCD panel, driver IC, FPC, and backlight.

*It is 240x64 dots monochrome Graphic STN lcd monitor.

* Backlight with white,blue,yellow,red color

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

Graphic 240x64 LCD Display STN Driver IC Uci6963 Uc0086 24064 Screen

Graphic 240x64 LCD Display STN Driver IC Uci6963 Uc0086 24064 Screen

Graphic 240x64 LCD Display STN Driver IC Uci6963 Uc0086 24064 Screen Graphic 240x64 LCD Display STN Driver IC Uci6963 Uc0086 24064 Screen
Graphic 240x64 LCD Display STN Driver IC Uci6963 Uc0086 24064 Screen
