Specifications
Supply Ability :
5000000000 pieces/year
Display Size :
5.7inch
Color :
Color
Viewing Angle :
6 O'Clock
Model Number :
KWH057DF10-F02
Dimensions :
144.0mm x 104.60mm x 14.50mm
Operating Temperature :
-10°C to 60°C
Place of Origin :
China
Product Name :
5.7 Inch TFT 320x240 RGB LCD Screen Touch With 33pin 18 Bits Digital RGB Interface
Interface :
33Pin, 18 BIT RGB
Display Type :
5.7 Inch TFT LCD Screen
Supply Voltage :
3.3V
MOQ :
1 piece
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Resolution :
320 * 240
Touch Screen :
With resistive touch panel
Payment Terms :
T/T,L/C,Credit card,Cash
Brightness :
500cd/m2
Description

5.7 Inch TFT 320x240 RGB LCD Screen Touch With 33pin 18 Bits Digital RGB Interface

5.7 Inch Car TFT Screen 320x240 RGB LCD Touch With 33pin 18 Bits Digital RGB Interface

LCD Name 5.7 Inch TFT 320x240 RGB LCD Screen Touch With 33pin 18 Bits Digital RGB Interface

LCD Size

5.7 inch QVGA LCD Module

Resolution

320(RGB)X240 Resolution

Color Depth

262K

Contrast Ratio

450:1

Outline Dimension

144.00x 104.60 x 14.50mm

Active Area(HxV mm)

115.20x86.40mm

Viewing Direction

6 O'Clock

Interface

RGB, 33 Pin

Backlight

30 LED

Brightness

500cd/m2

Operating Temperature

-20℃~70℃

Backlight Supply Current/Voltage

200mA, 3.3V

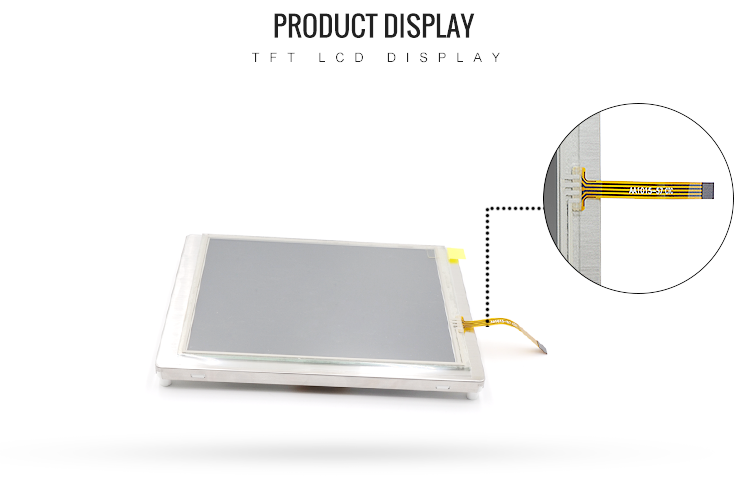

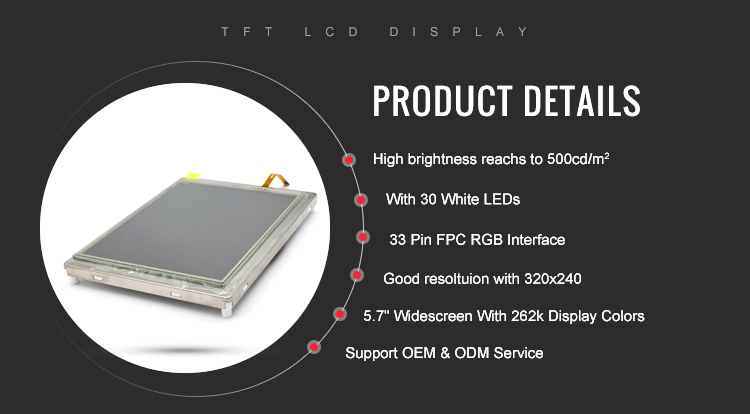

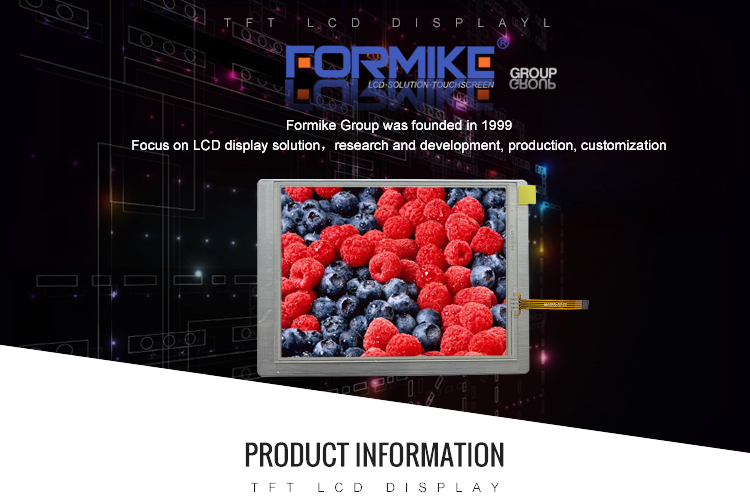

* KWH057DF10-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 320x240 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
