4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface
Specifications
Viewing Angle :
12 O'Clock
Touch Screen :
Without (Option with touch screen)
Product Name :
4 inch LCD Display 480x800 TFT Portrait Screen With 24 BIT RGB MCU Interface
Controller Ic :
NT35510
Interface :
51Pin, 24 BIT RGB/MCU
Display Size :
4 Inch / 3.97 Inch
Dimensions :
57.14mm x 96.85mm x 2.30mm
Model Number :
KWH040ST03-F01
Operating Temperature :
-20°C to 70°C
Color :
Color
Place of Origin :
China
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Type :
4 Inch TFT LCD Module
Supply Voltage :
3.7V
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
MOQ :
1 piece
Brand Name :
Formike
Payment Terms :
T/T, L/C, Credit card, Cash
Resolution :
480 * 800

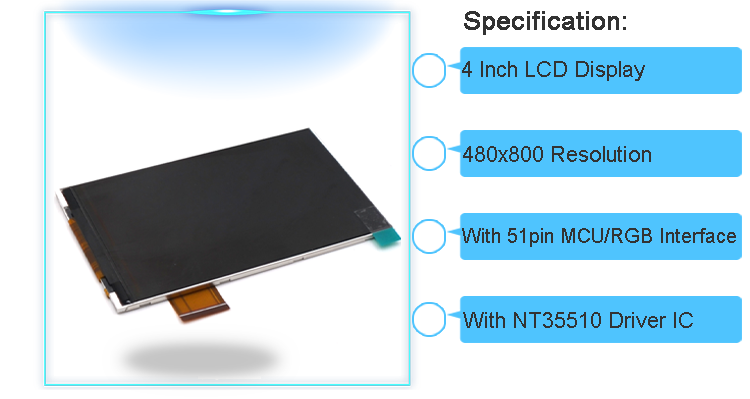

Description

4 inch LCD Display 480x800 TFT Portrait Screen With 24 BIT RGB MCU Interface

4 Inch Portrait 480x800 TFT Resistive Touchscreen LCD Display With 24 BIT RGB MCU Interface

Product Name 4 inch LCD Display 480x800 TFT Portrait Screen With 24 BIT RGB MCU Interface
LCD Size 4 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 480x800
Outline Dimension (mm) 57.14x96.85x2.30
Active Area (mm) 51.84x86.40
Dot pitch (mm) 0.108x0.108
Viewing Direction 12 O’clock
Interface MCU RGB Interface, 51 Pin
Driver IC NT35510
Brightness (Cd/m2) 330
Contrast Ratio 700:1
Backlight 8 White LED in Serial

Backlight Supply

(Current/Voltage)

 20mA 25V
Touch Screen Without (Optional with)

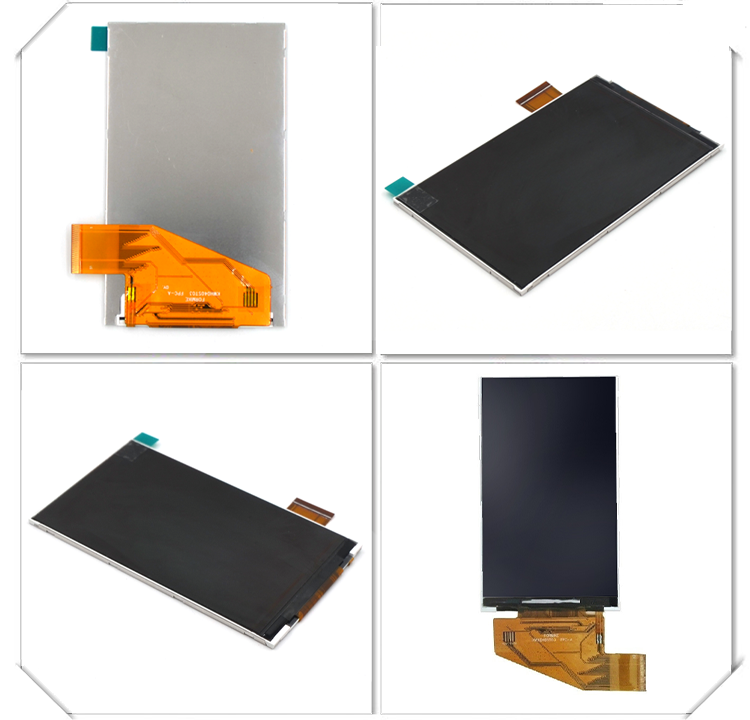

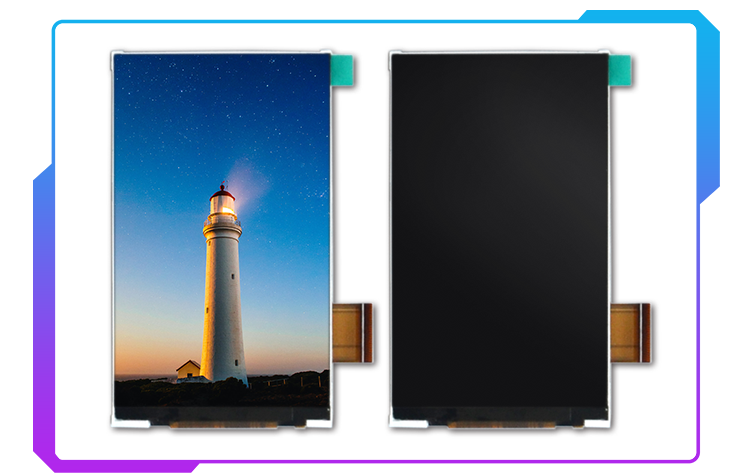

* KWH040ST03-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 480x800 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
