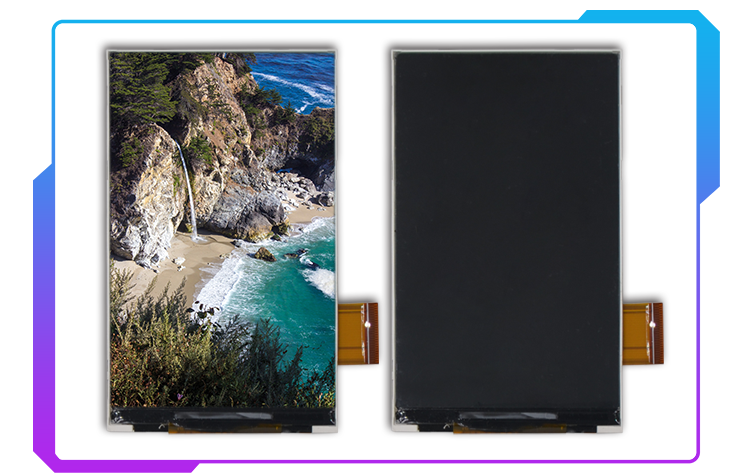

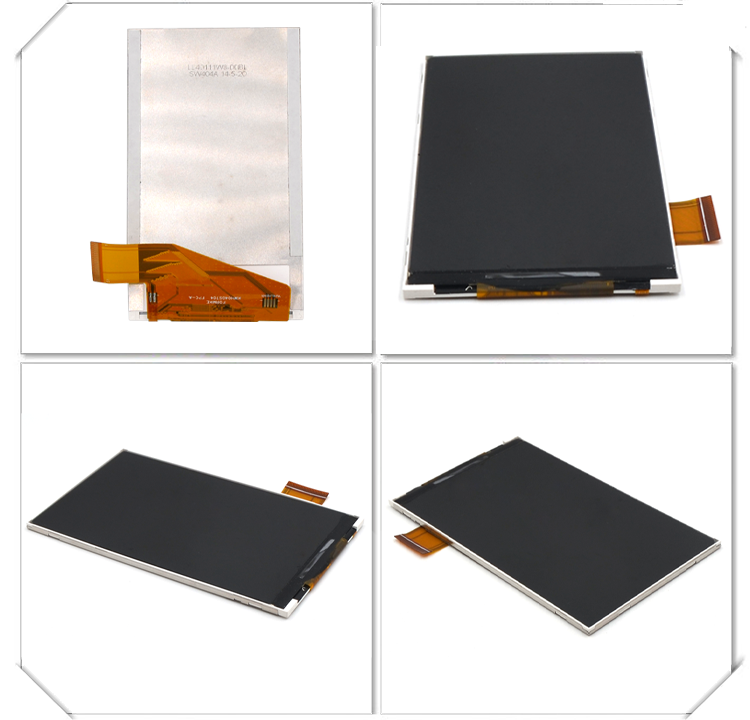

480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
Specifications
Display Size :
4 Inch / 3.97 Inch
Operating Temperature :
-20°C to 70°C
Product Name :
480x800 LCD 4 Inch TFT Display IPS Panel With NT35510 Driver IC
Interface :
51 Pin, 24 BIT RGB/MCU
Supply Ability :
5000000000 pieces/year
Touch Screen :
Without (Option with touch screen)
Place of Origin :
China
Color :
Color
Resolution :
480 x 800
Display Type :
4.0 Inch IPS TFT LCD Display
Payment Terms :
T/T, L/C, Credit card, Cash
MOQ :
1 piece
Viewing Angle :
All
Brand Name :
Formike
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Dimensions :
57.14mm x 96.85mm x 2.30mm
Model Number :
KWH040ST04-F01
Packaging Details :
Tray + Inner Box + Carton
Controller Ic :
NT35510
Supply Voltage :
3.7V
Description

480x800 LCD 4 Inch TFT Display IPS Panel With NT35510 Driver IC

480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC

Product Name 480x800 LCD 4 Inch TFT Display IPS Panel With NT35510 Driver IC
LCD Size 4 Inch TFT LCD Display Module
Display Mode IPS
Resolution 480x800
Outline Dimension (mm) 57.14x96.85x2.30
Active Area (mm) 51.84x86.40
Dot pitch (mm) 0.108x0.108
Viewing Direction All
Interface MCU RGB Interface, 51 Pin
Driver IC NT35510
Brightness (Cd/m2) 250
Contrast Ratio 900:1
Backlight 8 White LED in Serial

Backlight Supply

(Current/Voltage)

 20mA 25V
Touch Screen Without (Optional with)

* KWH040ST04-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 480x800 resolution IPS TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC480x800 Transflective Color TFT Display IPS Panel Touch Screen LCD With NT35510 Driver IC
