Specifications
Color :
Color
Display Type :
TFT
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Display Size :
1.44 inch
Product Name :
128x128 Display Mini LCD Screen 1.44 128x128 TFT LCD with SPI Interface
MOQ :
1 piece
Packaging Details :
Tray + Inner Box + Carton
Resolution :
128 x 128
Controller Ic :
ILI9163V
Supply Ability :
5000000000 pieces/year
Viewing Angle :
6 O'Clock
Model Number :
KWH014ST02-F01
Payment Terms :
T/T, L/C, Credit card, Cash
Supply Voltage :
3.2V
Dimensions :
32.36mm x 38.00mm x 2.60mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Place of Origin :
China
Interface :
MCU
Description

128x128 Display Mini LCD Screen 1.44 128x128 TFT LCD with SPI Interface

128x128 Mini TFT LCD Display Screen Module 1.44 Inch With SPI Interface ODM

LCD Name 128x128 Display Mini LCD Screen 1.44 128x128 TFT LCD with SPI Interface

LCD Size

1.44 inch LCD Module

Resolution

128(RGB)X128 Resolution

Color

65K

Contrast Ratio

500:1

Outline Dimension

32.36 x 38 x 2.6mm

Active Area(HxV mm)

25.4976 x 26.496mm

Viewing Direction

12 O’clock

Interface

8 BIT MCU/4W SPI/3W SPI, 32pins

Backlight

1 LED

Brightness

140cd/m2

IC Driver

ILI9163V

Backlight Supply Current/Voltage

15mA,3.2V

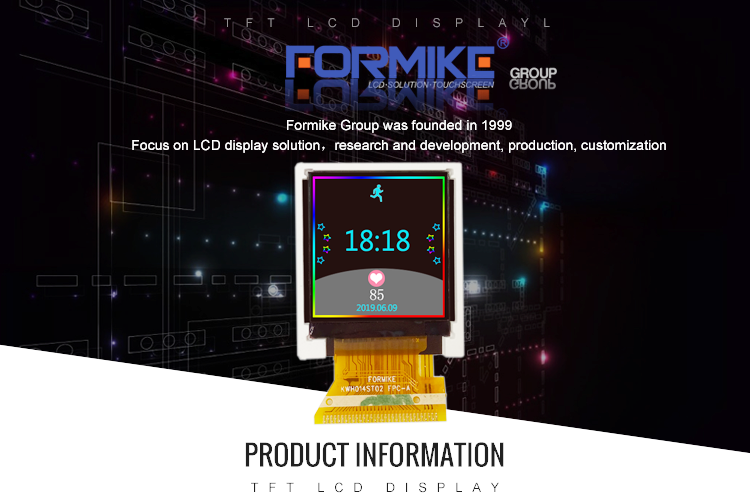

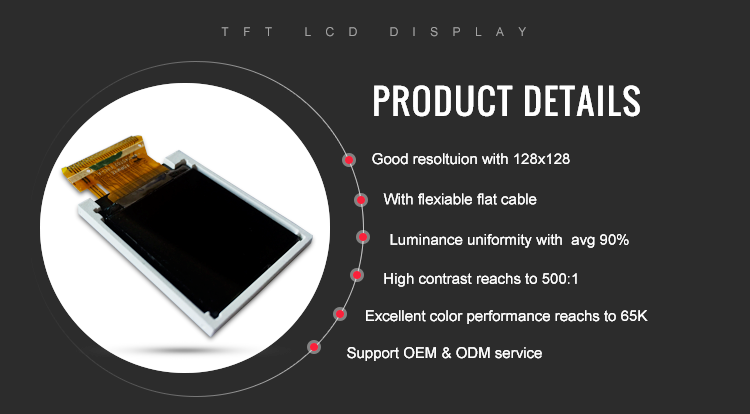

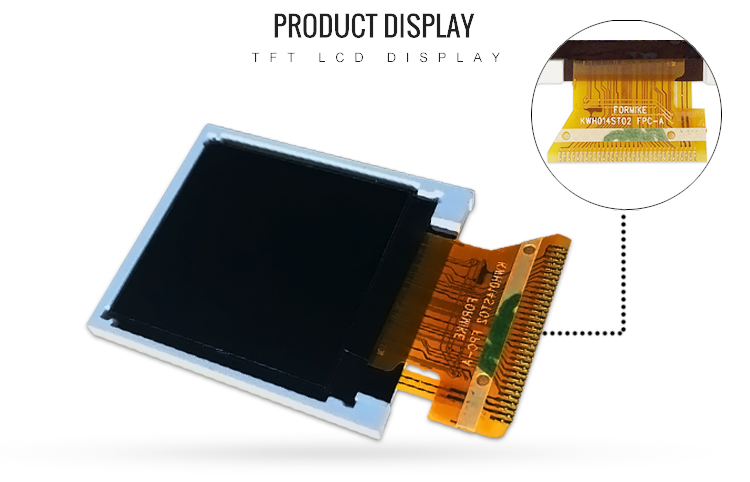

* KWH014ST02-F01 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 128x128 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
