Specifications
Display Type :
TFT
Product Name :
1.44 Inch LCD 128x128 TFT Display ST7735 Screen with Small Touch Panel
Place of Origin :
China
MOQ :
1 piece
Resolution :
128 x 128
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Color :
Color
Interface :
MCU
Controller Ic :
ST7735S
Payment Terms :
T/T, L/C, Credit card, Cash
Viewing Angle :
6 O'Clock
Supply Ability :
5000000000 pieces/year
Packaging Details :
Tray + Inner Box + Carton
Operating Temperature :
-20°C to 70°C
Display Size :
1.44 inch
Supply Voltage :
3.2V
Model Number :
KWH014ST12-C01
Brand Name :
Formike
Dimensions :
32.36mm x 38.00mm x 4.45mm
Description
Product Description

1.44 Inch LCD 128x128 TFT Display ST7735 Screen with Small Touch Panel

ST7735 1.44 Inch 128x128 TFT Display LCD Small Touch Panel Screen

LCD Name 1.44 Inch LCD 128x128 TFT Display ST7735 Screen with Small Touch Panel

LCD Size

1.44 inch LCD Module

Resolution

128x128

Color

65K

Contrast Ratio

500:1

Outline Dimension

32.36 x 38 x 4.45mm

Active Area(HxV mm)

25.4976 x 26.496mm

Viewing Direction

6 O’clock

Interface

8 BIT MCU/4W SPI/3W SPI, 32pins

Backlight

1 LED

Brightness

140cd/m2

IC Driver

ST7735S

Backlight Supply Current/Voltage

15mA,3.2V

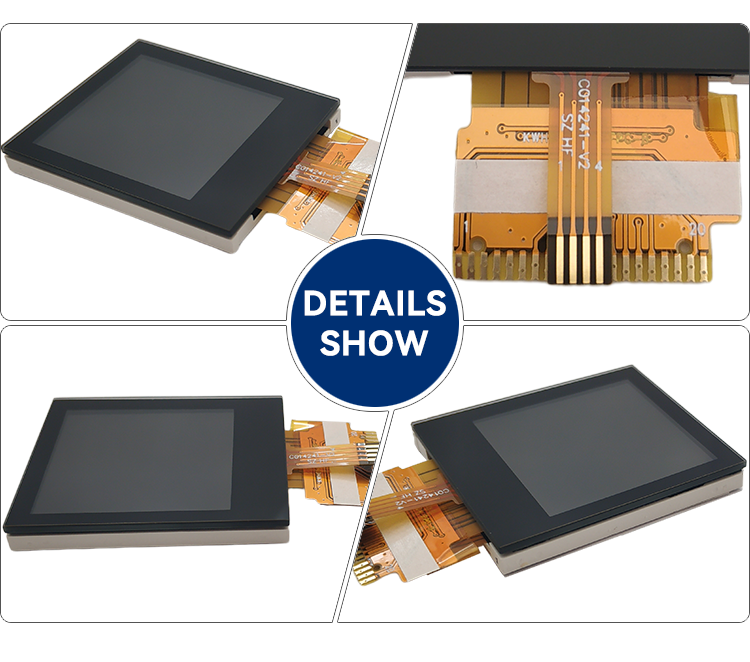

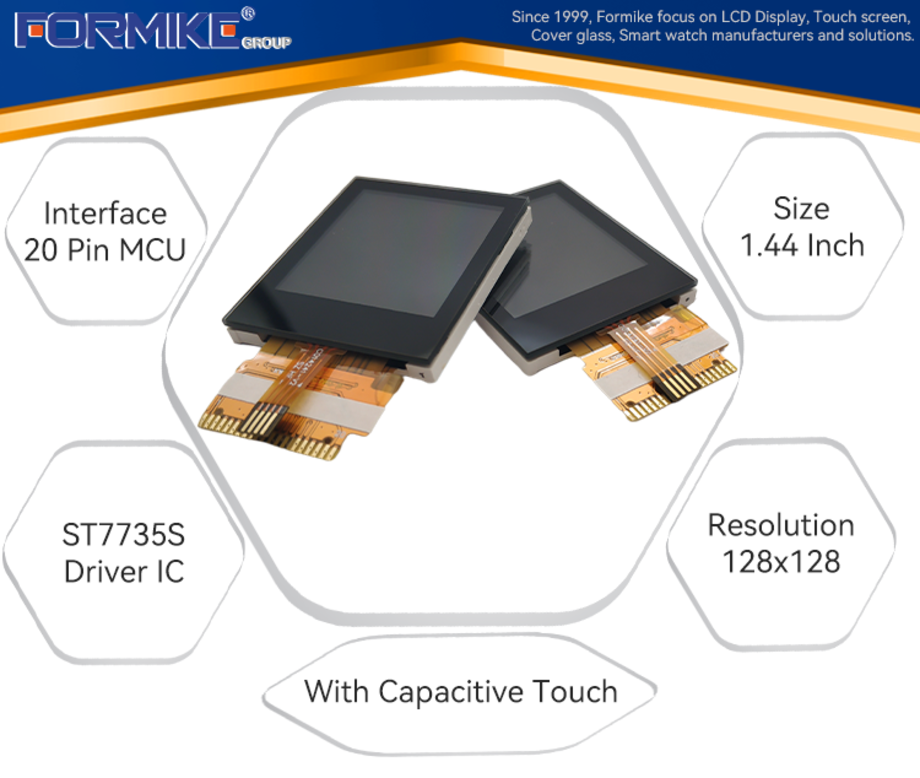

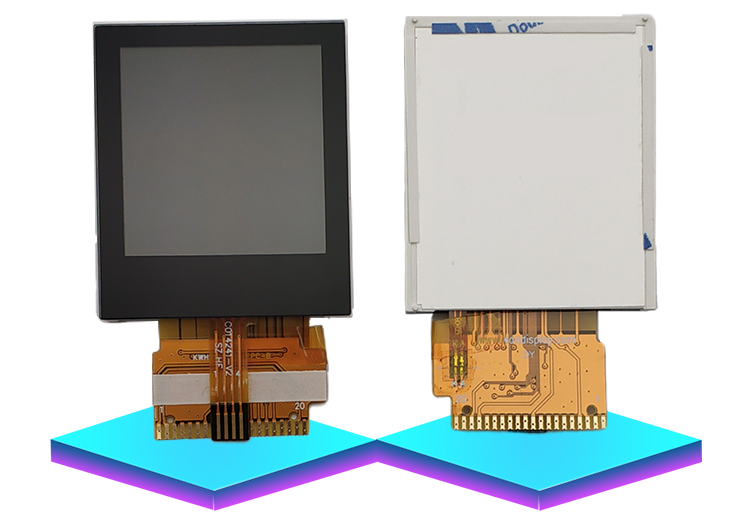

* KWH014ST12-C01 is a small Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 128x128 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
