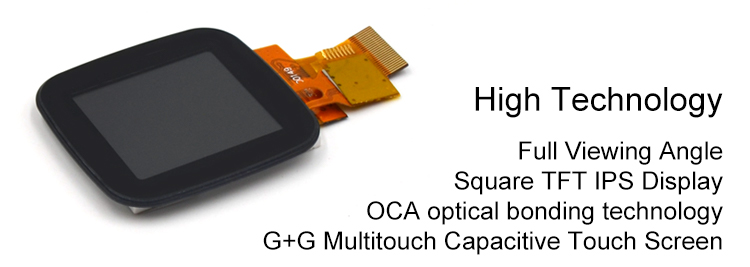

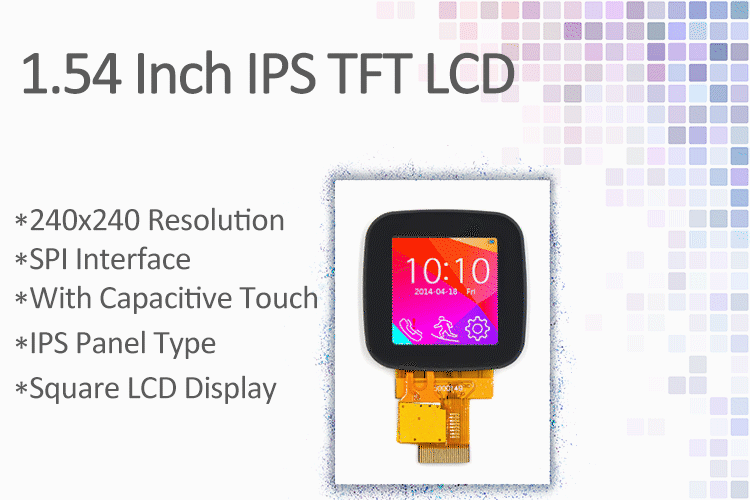

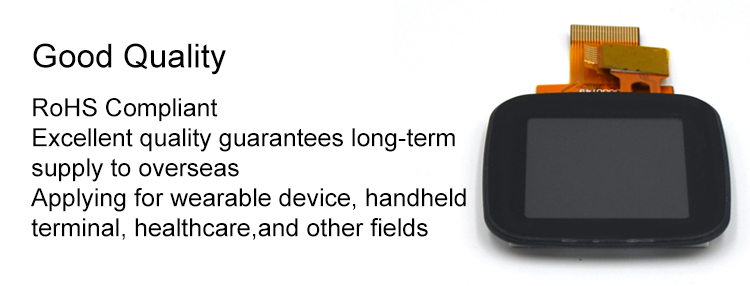

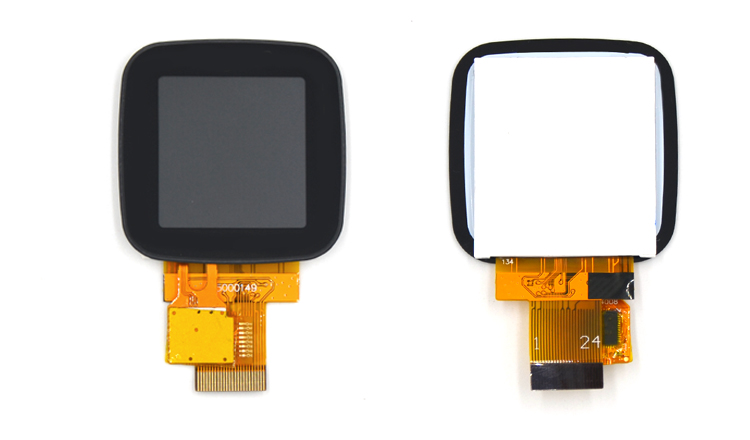

1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC
Specifications
Payment Terms :
T/T, L/C, Credit card, Cash
Color :
Color
Supply Voltage :
3.2V
Resolution :
240 x 240
Place of Origin :
China
Dimensions :
40.30mm ×40.30mm ×4.37mm
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Supply Ability :
5000000000 pieces/year
Product Name :
1.54 Inch LCD Display 240x240 TFT IPS SPI Touch Screen with ST7789H2 Driver IC
Brand Name :
Formike
Display Size :
1.54 inch
Packaging Details :
Tray + Inner Box + Carton
Interface :
4W SPI
Model Number :
KWH0154DF03-C02
MOQ :
1 piece
Display Type :
IPS TFT Display
Operating Temperature :
-20°C to 70°C
Controller Ic :
ST7789H2
Viewing Angle :
All
Description

1.54 Inch LCD Display 240x240 TFT IPS SPI Touch Screen with ST7789H2 Driver IC

1.54 Inch 240x240 TFT IPS SPI LCD Touch Screen Display Module With ST7789H2 Driver IC

LCD Name 1.54 Inch LCD Display 240x240 TFT IPS SPI Touch Screen with ST7789H2 Driver IC

LCD Size

1.54 inch LCD Module

Display Mode

Transmissive TFT LCD, Normal Black
Panel Type IPS

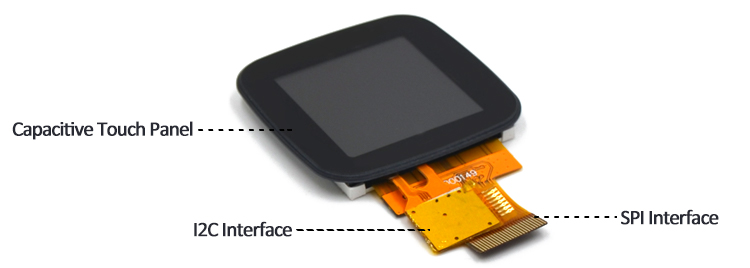

Touch Panel With Capacitive Touch Screen
Resolution 240x240
Outline Dimension 40.30x 40.30 x 4.37mm
Active Area 27.72x27.72mm
Brightness 400cd/m2
Contrast Ratio 800:1
Interface SPI, I2C
Connector 24 Pin FPC
Backlight 3 White LED In parallel
Driver IC ST7789H2

Color Depth

262k

Viewing Direction

Free Viewing Angle

Supply Voltage

Supply Current

Power dissipation

3.2V

60mA

192mW

Operating Temperature

-20℃~70℃

Storage Temperature

-30℃~80℃

* KWH0154DF03-C02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 240x240 resolution TFT LCD module.

* Backlight with different brightness options from 100 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* Customize LCD Display including lcd backlight, brightness, FPC, interface, touch screen, etc.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
