Specifications
MOQ :
1 piece
Operating Temperature :
-20°C to 70°C
Product Name :
1.8 Inch TFT LCD Module Color TFT 128x160 Display With ILI9163C Driver IC
Color :
Color
Model Number :
KWH018ST04-F01 V.1
Controller Ic :
ILI9163C
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Display Size :
1.8 inch / 1.77 inch
Resolution :
128 x 160
Brand Name :
Formike
Packaging Details :
Tray + Inner Box + Carton
Display Type :
Small TFT Module
Viewing Angle :
12 O’clock
Place of Origin :
China
Payment Terms :
T/T, L/C, Credit card, Cash
Supply Voltage :
3.2V
Supply Ability :
5000000000 pieces/year
Interface :
20Pin, CPU 8 bits
Dimensions :
34.0mm x 43.7mm x 2.4mm
Description

1.8 Inch TFT LCD Module Color TFT 128x160 Display With ILI9163C Driver IC

Color SPI 1.8 Inch TFT LCD Module 128x160 Display With ILI9163C Driver IC OEM

Product Name 1.8 Inch TFT LCD Module Color TFT 128x160 Display With ILI9163C Driver IC
LCD Size 1.8 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 128x160

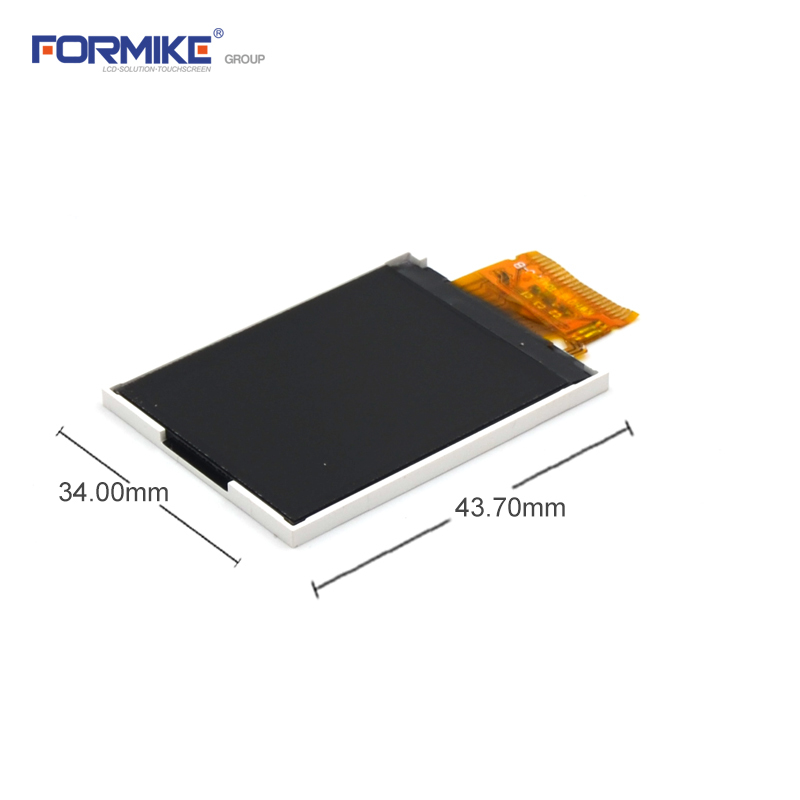

Outline Dimension (mm) 34.00x43.70x2.40
Active Area (mm) 28.03x35.04
Dot pitch (mm) 0.219x0.219
Viewing Direction 12 O'Clock
Interface MCU Interface, 20 Pin
Driver IC ILI9163C
Brightness (Cd/m2) 150
Contrast Ratio 250:1
Backlight 2 White LED in Parallel

Backlight Supply

(Current/Voltage)

 30mA 3.2V
Touch Screen Without

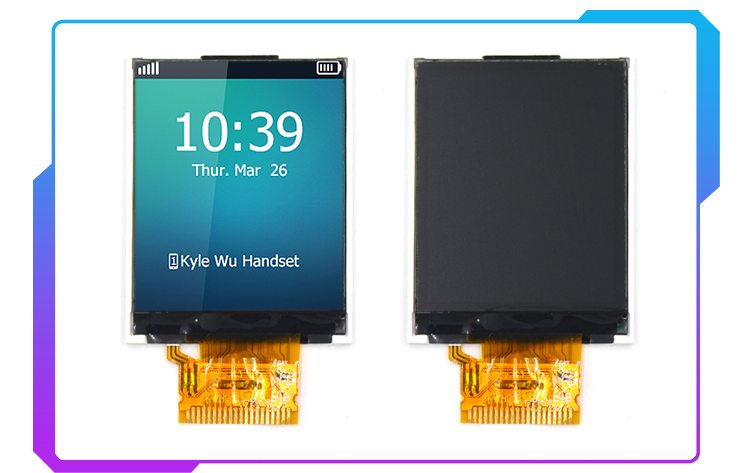

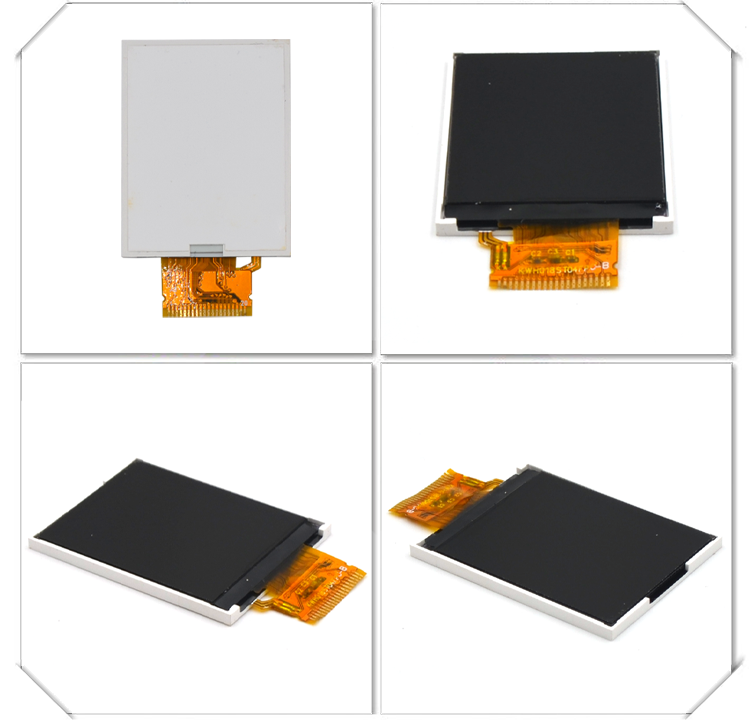

* KWH018ST04-F01 V.1 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 128x160 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
