Specifications
Payment Terms :
T/T, L/C, Credit card, Cash
Controller Ic :
ILI9163C
Supply Ability :
5000000000 pieces/year
Delivery Time :
In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Packaging Details :
Tray + Inner Box + Carton
Viewing Angle :
12 O’clock
Display Type :
Small TFT Screen
Operating Temperature :
-20°C to 70°C
Brand Name :
Formike
Product Name :
1.8 Inch TFT LCD Display SPI MCU 128x160 TFT Module With 33pin Soldering FPC
Interface :
33 Pin, 8 BIT MCU/4W SPI/3W SPI
Model Number :
KWH018ST03-F01
Place of Origin :
China
Resolution :
128 x 160
Color :
Color
Supply Voltage :
3.2V
Dimensions :
34.0mm x 47.0mm x 2.4mm
MOQ :
1 piece
Display Size :
1.8 inch / 1.77 inch
Description

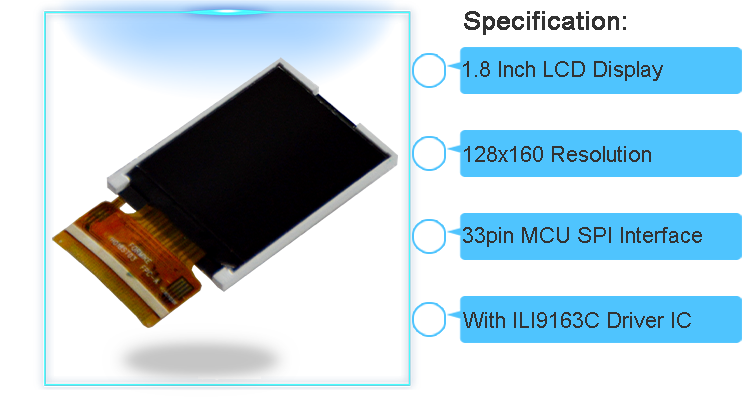

1.8 Inch TFT LCD Display SPI MCU 128x160 TFT Module With 33pin Soldering FPC

Custom 1.8 Inch LCD Module TFT Display SPI MCU 128x160 With 33pin Soldering FPC

Product Name 1.8 Inch TFT LCD Display SPI MCU 128x160 TFT Module With 33pin Soldering FPC
LCD Size 1.8 Inch TFT LCD Display Module
Display Mode Transmissive
Resolution 128x160
Outline Dimension (mm) 34.00x47.00x2.40
Active Area (mm) 28.032x35.04
Dot pitch (mm) 0.219x0.219
Viewing Direction 12 O'Clock
Interface MCU SPI Interface, 33 Pin
Driver IC ILI9163C
Brightness (Cd/m2) 230
Contrast Ratio 500:1
Backlight 2 White LED in Parallel

Backlight Supply

(Current/Voltage)

 30mA 3.2V
Touch Screen Without

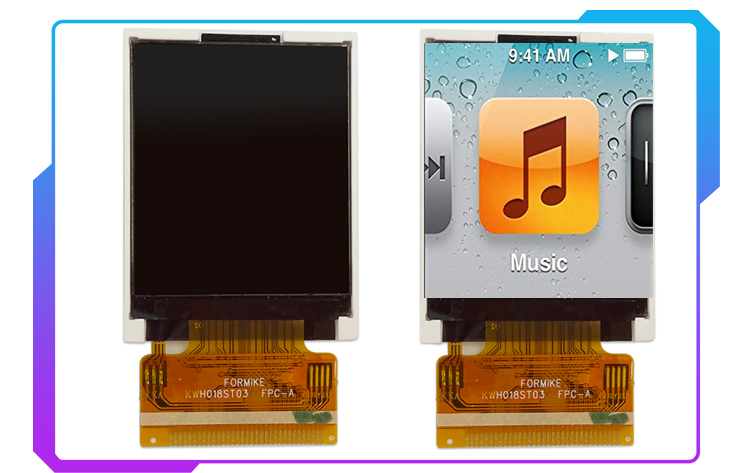

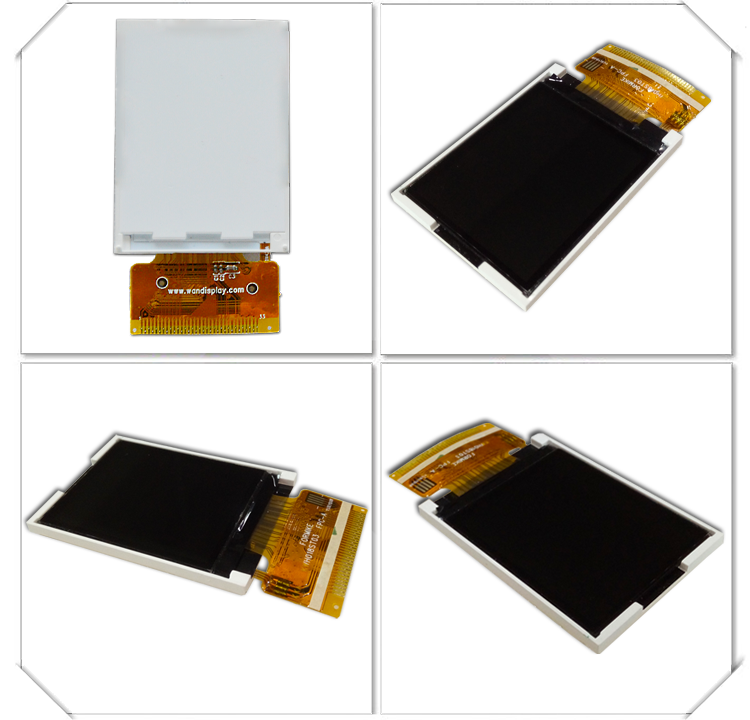

* KWH018ST03-F01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight.

* It is 128x160 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
