Specifications
Place of Origin :
china
Brand Name :
snsc
Certification :
CE/ISO
MOQ :
1 unit
Price :
USD 6000-9000
Packaging Details :
shipped by container
Delivery Time :
30-45 Days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 Sets Per Month
Model NO. :
FD18
Lift height :
3000~5000mm
Condition :
New
Free Lifting Height :
115mm
Fork Size :
1070*122*40mm
Mast Tilt Angle :
6/12 Degree
Min. Ground Clearance :
150mm
Overhead Guard Height :
2040mm
Front Overhang :
400mm
The Turning Radius :
2060mm
Transport Package :
Nude Package
Trademark :
SNSC
Origin :
China
HS Code :
84270290
Cab Location :
Not Adjustable
Type :
Diesel Forklift
Power :
Diesel Engine
Load Capacity :
1T - 5T
Fuel :
Diesel
Load center :
500mm
Customization :
Available | Customized Request
Description
SNSC 1.8Ton Diesel Forklift Container Forklift Machine Price

3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height
3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height
3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height
3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height
3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height
3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height

3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height

Details:

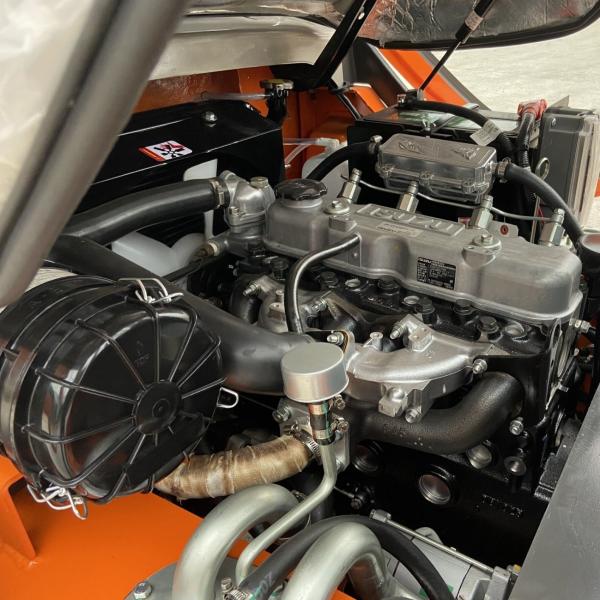

Japan Isuzu Engine;
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);
Standard 2-stage 3m mast;
With cab
Electric Hydraulic Automatic Transmission by TCM technology;
Lamp protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Standard Pneumatic Tires

Common Options:
Solid Tires;
3m-7m duplex or triplex full free mast;
Attachments such as paper roll clamp, block clamp, bale clamp, bucket, etc;
Fully closed cabin with heater or air conditioner;
Side shifter and fork positioner;
Fully suspension luxury seat;
Double filter;
High exhaust;
Customized color except green, red and orange.

Specifications:
Specifications Unit FD18
Features Power type Diesel
Rated load kg 1800
Load center mm 500
Lifting height mm 3000
Free lifting height mm 115
Fork size L*W*T mm 1070*122*40
Mast tilt angle Front/Rear . 6/12
Min. turning radius mm 2060
Min.ground clearance Mast mm 150
Overhead guard height mm 2040
Front overhang mm 400
Performance Max. travelling speed loaded km/h 14.5
Max. lifting speed loaded/empty mm/s 460/520
Max. traction force loaded KN 16
Max. climbing ability % 20
Dimension Overall length without fork mm 2250
Overall width mm 1080
Mast lowered height mm 1955
Mast extended height mm 3860
Chassis Tyre Front 6.50-10-10PR
Rear 5.00-8-10PR
Wheel base mm 1400
Wheel thread Front/Rear mm 890/920
Weight(without load) kg 2980
Powertrain Battery V/AH 12/90
Engine Model NC485BPG/ISUZU C240
Rated power km/r.p.m 30/2600
Rated torque Nm/r.p.m 131/1800
No. cylinder 4
Bore x stroke mm 85x100
Displacement L 2.27
Fuel tank capacity L 45
Transmission/shift 1/1 automatic transmission
Operation pressure Mpa 14.5

Details of 1.8Ton Diesel Forklift FD18

3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height
1.8Ton Diesel Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
3.5 Ton Diesel Forklift Lift Trucks SNSC Forklift 3000mm-5000mm Lift Height
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
