Stainless Steel Pipe Tee Fittings Metal T Pipe Fittings Equal and Reducing Tee

Stainless steel pipe tee is one type of buttwelding fittings, compare branch size with run pipe size, we name it as equal and reducing tee. It is produced by steel rod and pipes, the manufacturing standard are ASME B16.9 and ASME B16.11. They are mostly used for pressure piping applications. Our stainless steel pipe fittings limit types of localized corrosion and are indispensable to applicatons requiring compact but flexible seals. Restraining deformities and cracks under high temperatures.

Zizi Engineering is one of the top manufacturer, exporter and supplier of steel pipe fittings & flanges which are available in various sizes, dimension and shapes according to our client’s requirement. We are at the forefront of innocation in both product lines and after seals services. That's why we constantly upgrade our pipe fittings and services to meet market expecations and demands, We re reputed as an execllent quality stainless steel pipe tee fitting suppliers in the industry.

Specification of Stainless Steel Pipe Fittings

Drawing Datasheets Steel Pipe Tee

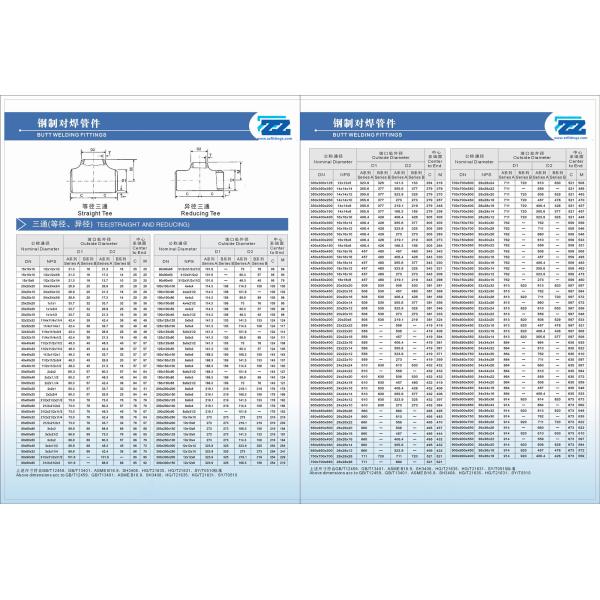

ASME B16.9 Standard Butt Weld Tee Type

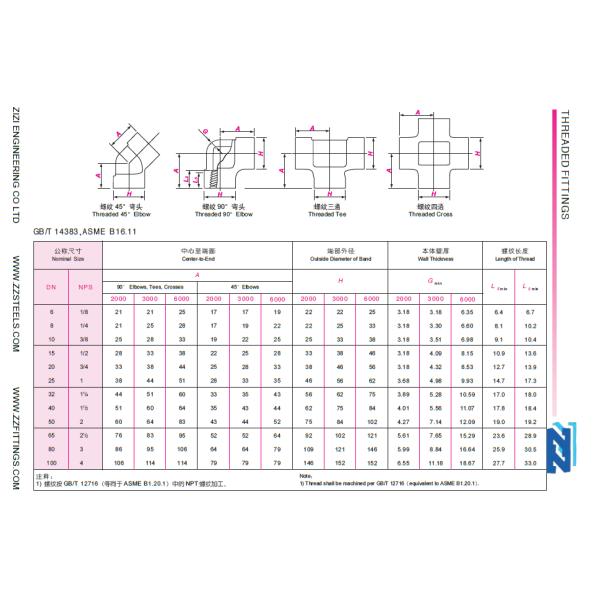

ASME B16.11 Threaded Tee Type

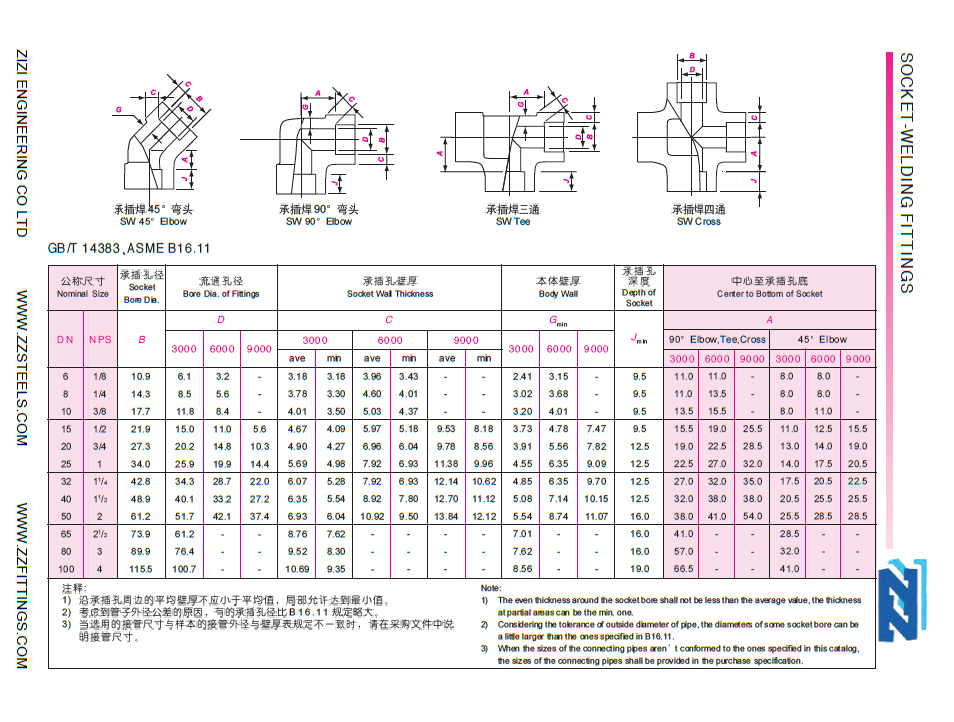

ASME B16.11 Socket Weld Tee

Manufacturing Technical of Stainless Steel Tee

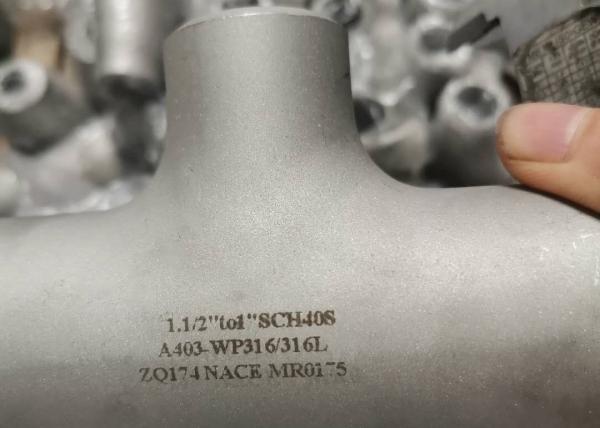

Stainless steel butt welding tee can be into seamless and ERW pipe fittings, seamless tee fittings are made from seamless stainless steel pipes, ERW tee fittings are made by ERW steel pipes while welded large diameter fittings are produced by stainless steel plates.Both of them are manufactured according to ASME B16.9.

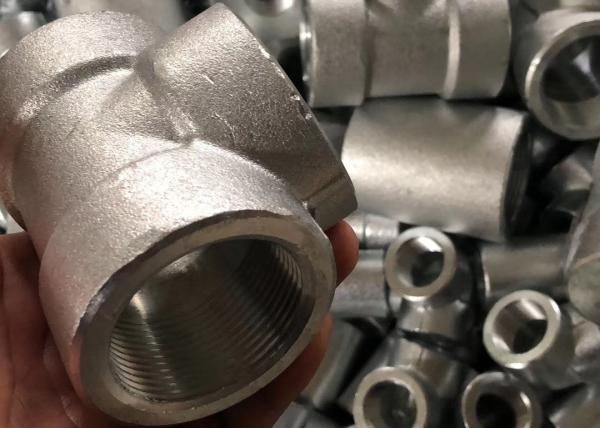

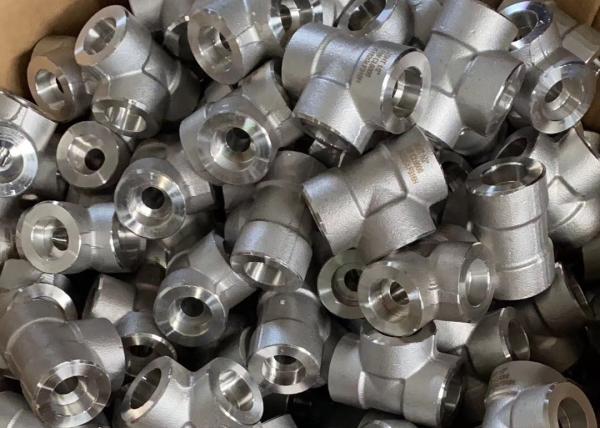

Forged stainless steel tee can be divided into socket weld tee and threaded pipe tee, both types are forged by steel rod which according to ASME B16.11

Standard of Steel Pipe Fittings

ASME B16.9 Standard covers overall dimensions, tolerances, ratings, testing, and markings for factory-made wrought buttwelding fittings in sizes NPS 1 ∕ 2 through NPS 48 (DN 15 through DN 1200). It covers fittings of any producible wall thickness. This standard does not cover low pressure corrosion resistant buttwelding fittings.

ASME B16.11 Standard covers ratings, dimensions, tolerances, marking and material requirements for socket-welding and threaded forged fittings. These fittings are designated as Class 2000, 3000, and 6000 for threaded end fittings and Class 3000, 6000, and 9000 for socket-weld end fittings.

SS Pipes and Fittings Chemical Composition

SS Pipes and Fittings Mechnical Properties

Delivery

Within 10 days or asap if we have stock.

Types of Packing

Wooden Case

Crates ( Steel/Wooden)

Features

End of butt weld fittings are protected by plastic caps.

Bundles strapped with plastic strips

Packing list laminated with case/crate.

Application Industries

• Off-Shore Oil Drilling Companies
• Power Generation
• Petrochemicals
• Sea Water Equipment
• Heat Exchangers
• Condensers
• Gas Processing
• Specialty Chemicals
• Pharmaceuticals
• Pharmaceutical Equipment
• Chemical Equipment
• Pulp and Paper Industry
